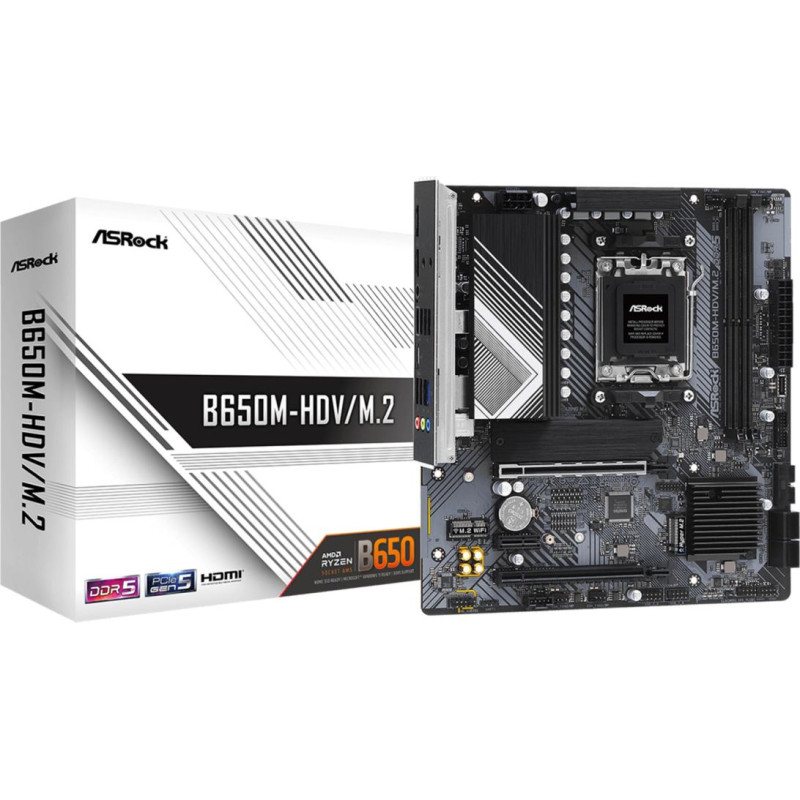

Asrock B650M-HDV/M.2 AMD B650 Socket AM5 micro ATX

Asrock B650M-HDV/M.2 AMD B650 Socket AM5 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 163197
Model B650M-HDV/M.2
Barcode 4710483942693
Brand: ASROCK
95.74€
(Ex Tax: 77.21€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen™ 7
Audio chipRealtek ALC897
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Motherboard form factormicro ATX
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Unbuffered memoryYes
Maximum internal memory64 GB
Depth226 mm
Width244 mm
Wi-FiNo
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125-BG
TPM connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of SATA III connectors4
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Thunderbolt headers1
BIOS typeEFI AMI
RAID levels1
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Line-inYes
DisplayPorts quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 2.0 ports quantity4
DisplayPort version1.4
Microphone inYes
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
WarningsAvoid contact with liquids to prevent electronic damage.
