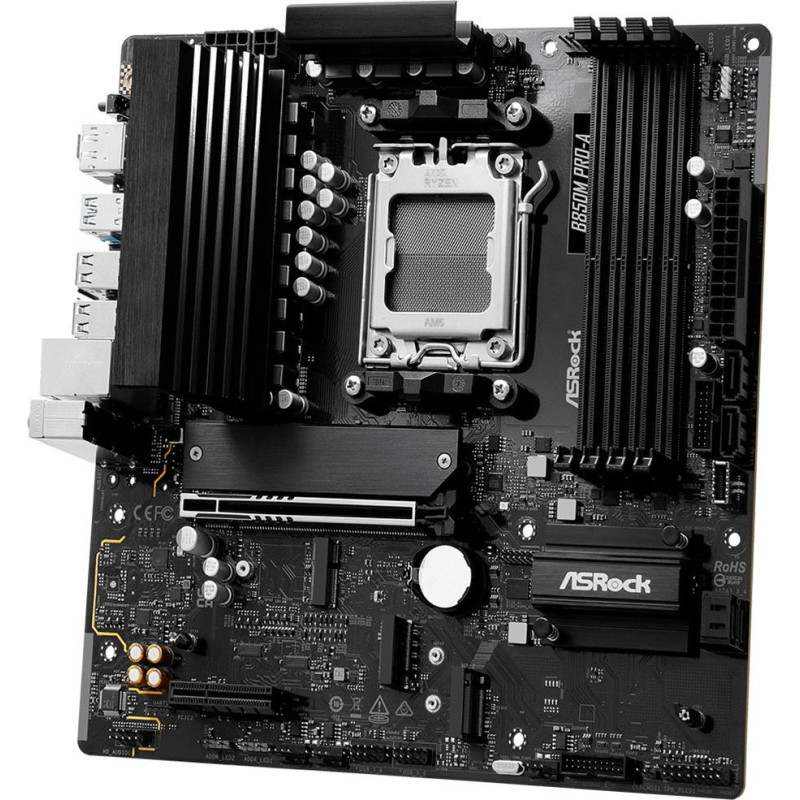

Asrock B850M Pro-A AMD B850 Socket AM5 micro ATX

Asrock B850M Pro-A AMD B850 Socket AM5 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 163258
Model B850M PRO-A
Barcode 4711581490390
Brand: ASROCK
110.72€
(Ex Tax: 89.29€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 7000 Series
Processor socketSocket AM5
Processor manufacturerAMD
Supported processor socketsSocket AM5
Parallel processing technology supportNot supported
HDCPYes
Maximum resolution3840 x 2160 pixels
CertificationFCC, CE, ErP/EuP
Motherboard chipset familyAMD
Motherboard chipsetAMD B850
Audio chipRealtek ALC897
Product colourBlack
Windows operating systems supportedWindows 10 x64
Motherboard form factormicro ATX
Audio output channels7.1 channels
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
ECC сompatibilityECC & Non-ECC
Memory channelsDual-channel
Number of memory slots4
Maximum internal memory256 GB
Width244 mm
Depth244 mm
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Ethernet LANYes
LAN controllerDragon RTL8125BG
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
USB 2.0 connectors2
RGB LED pin headerYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of EPS power connectors (8-pin)1
CPU fan connectorYes
TPM connectorYes
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors3
12V power connectorYes
BIOS typeUEFI AMI
Cables includedSATA
Screws includedYes
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported7
RAID levels10
Supported storage drive typesHDD & SSD
RAID supportYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Microphone inYes
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
DisplayPort version1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Headphone outputs3
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Line-inYes
USB connector typeUSB Type-A
DisplayPorts quantity1
Number of M.2 (M) slots3
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 (Gen 4.x) slots1
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
