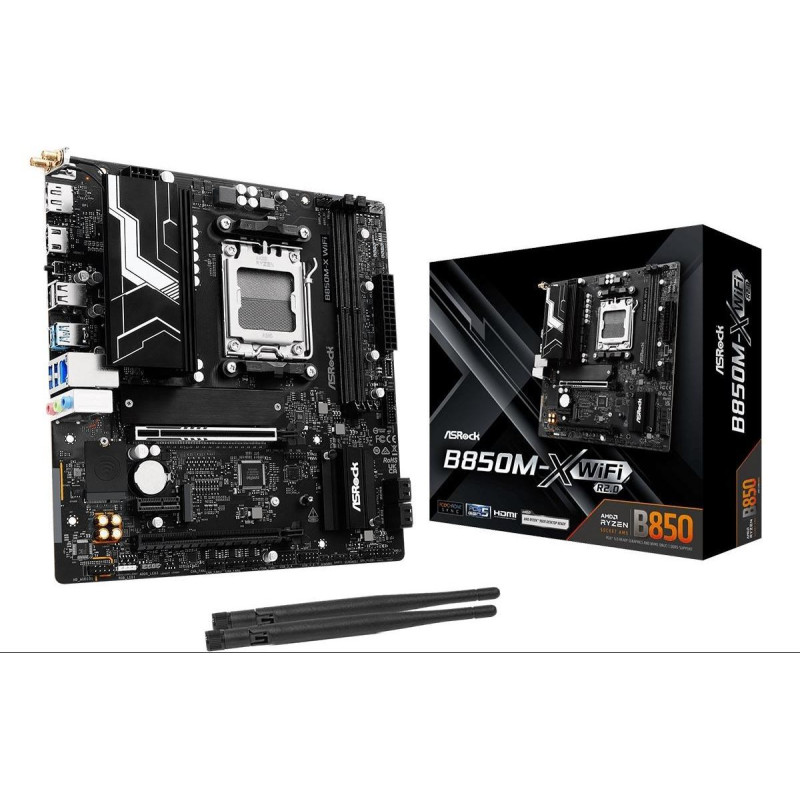

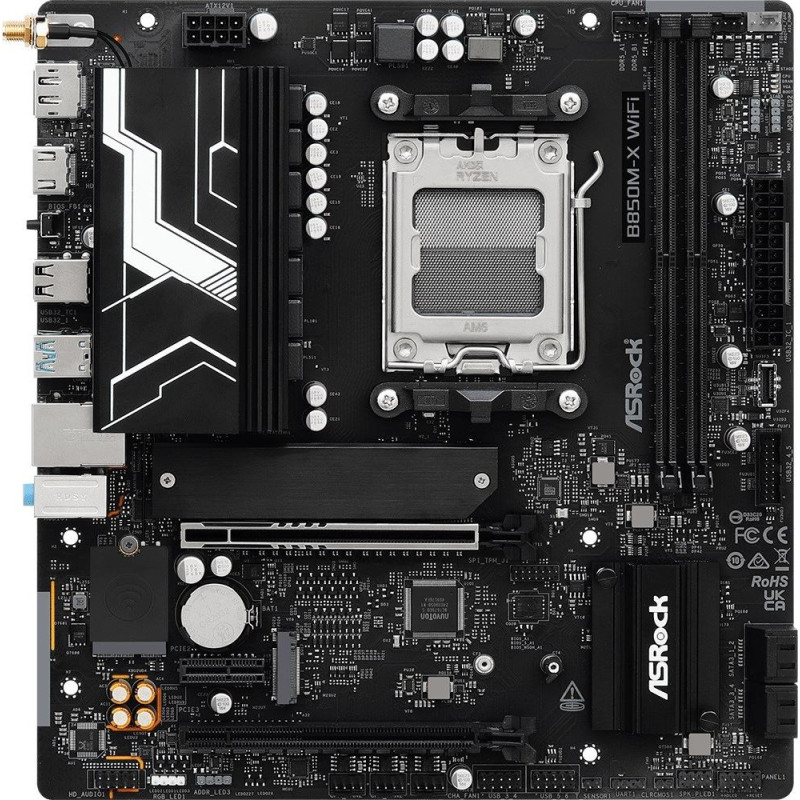

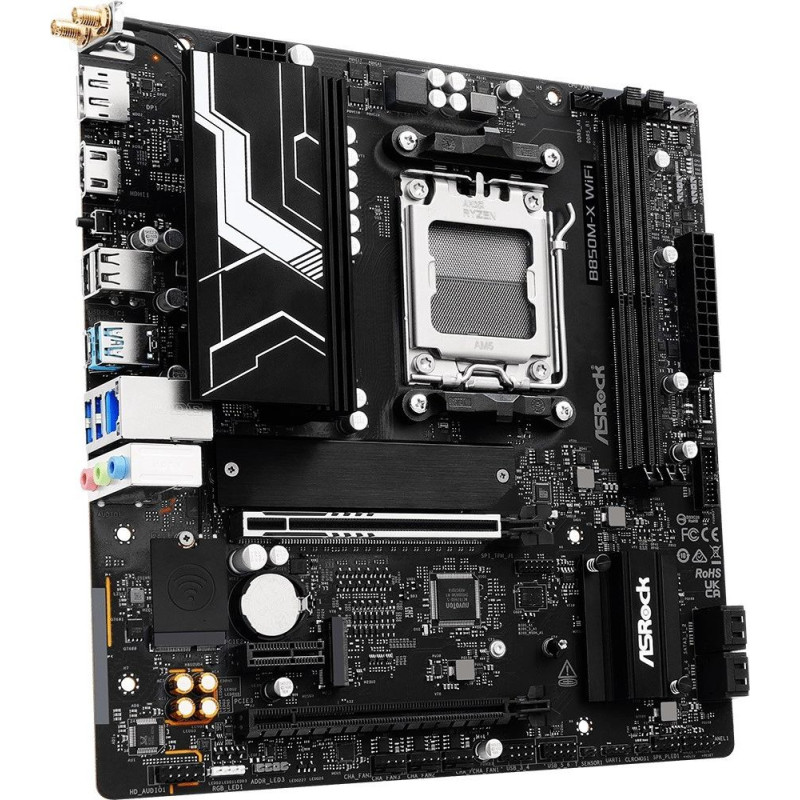

Asrock B850M-X WiFi R2 AMD B850 Socket AM5 micro ATX

Asrock B850M-X WiFi R2 AMD B850 Socket AM5 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 163194
Model B850M-X WIFI R2.0
Barcode 4711581490765
Brand: ASROCK
112.78€
(Ex Tax: 90.95€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Processor manufacturerAMD
Supported processor socketsSocket AM5
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
HDCPYes
CertificationFCC, CE, ErP/EuP
Motherboard chipset familyAMD
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Product colourBlack
Audio chipRealtek ALC897
Motherboard chipsetAMD B850
Motherboard form factormicro ATX
ECC сompatibilityECC & Non-ECC
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Maximum internal memory128 GB
Depth226 mm
Width244 mm
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
Bluetooth version5.2
Mobile network connectionNo
Ethernet interface type2.5 Gigabit Ethernet
MU-MIMOYes
LAN controllerDragon RTL8125BG
BluetoothYes
Number of EPS power connectors (8-pin)1
Number of CPU fan connectors2
Number of SATA III connectors4
Front panel audio connectorYes
EPS power connector (8-pin)Yes
RGB LED pin headerYes
USB Type-C ports quantity1
TPM connectorYes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
12V power connectorYes
Number of chassis fan connectors3
Number of RGB LED pin headers1
USB 2.0 connectors2
BIOS typeUEFI AMI
Cables includedSATA
Screws includedYes
RAID supportYes
RAID levels1
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
DisplayPort version1.4
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Line-inYes
Ethernet LAN (RJ-45) ports1
Audio output3.5 mm
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Microphone inYes
USB 2.0 ports quantity2
DisplayPorts quantity1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (E) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
PCI Express x1 (Gen 4.x) slots1
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
