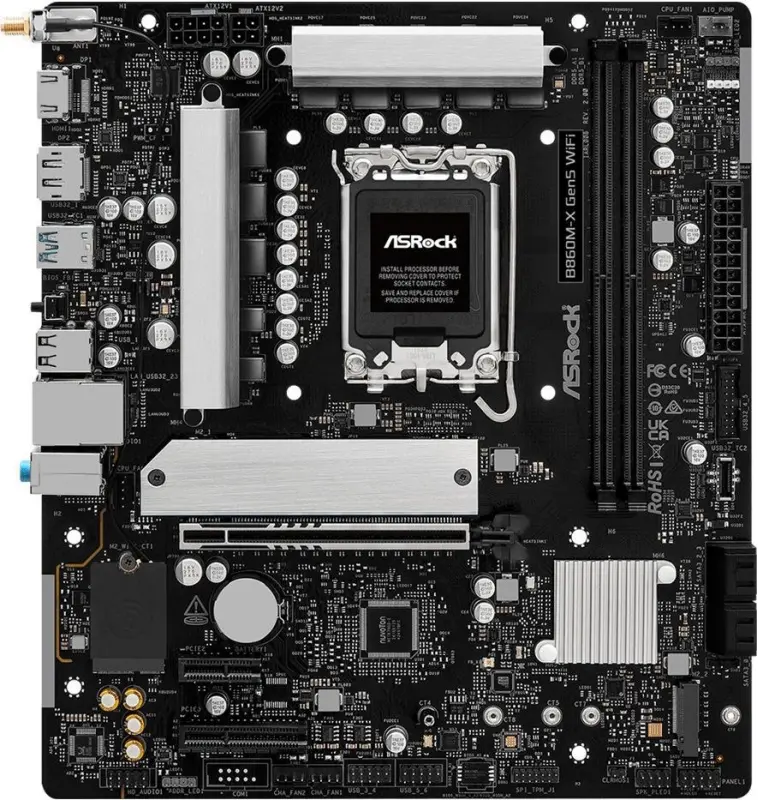

Asrock B860M-X GEN5 WIFI motherboard

Delivery to the store in 7-9 business days.
ID: 173194
Product Code: B860M-X GEN5 WIFI
Barcode 4711581490727
127.50€
(Ex Tax: 102.83€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRIIFB860U04
svītrkods: 4711581490727
Description
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
HDCPYes
On-board graphics card familyIntel Iris Xe Graphics
CertificationFCC, CE, ErP/EuP
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Motherboard chipsetIntel B860
Motherboard chipset familyIntel
Audio chipRealtek ALC897
Unbuffered memoryYes
Number of memory slots2
Maximum internal memory128 GB
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Memory slots typeDIMM
Memory channelsDual-channel
Depth218 mm
Width244 mm
Wi-Fi standards802.11g
Ethernet LANYes
LAN controllerDragon RTL8125BG
MU-MIMOYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Bluetooth version5.3
BluetoothYes
Wi-FiYes
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 6E (802.11axe)
Number of chassis fan connectors2
12V power connectorYes
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
USB 2.0 connectors2
RGB LED pin headerYes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
TPM connectorYes
CPU fan connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of water pump connectors1
BIOS typeUEFI AMI
RAID supportYes
RAID levels1
Supported storage drive typesHDD & SSD
USB connector typeUSB Type-C
Flashback BIOS buttonYes
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
USB 2.0 ports quantity2
Antennas quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
DisplayPort version1.4
HDMI ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Number of M.2 (M) slots1
PCI Express x4 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
PCI Express x1 (Gen 4.x) slots1
