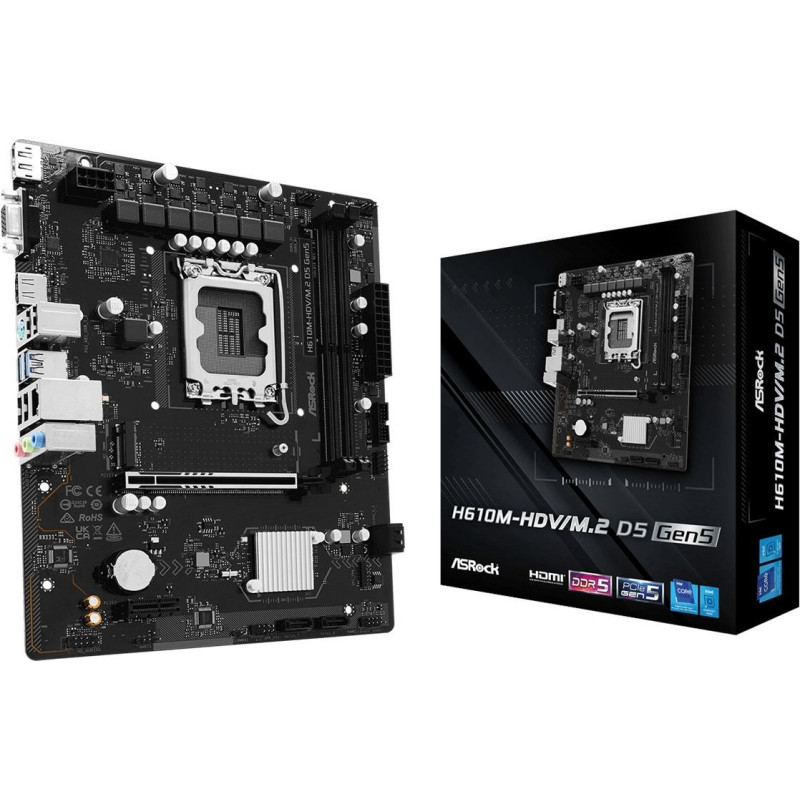

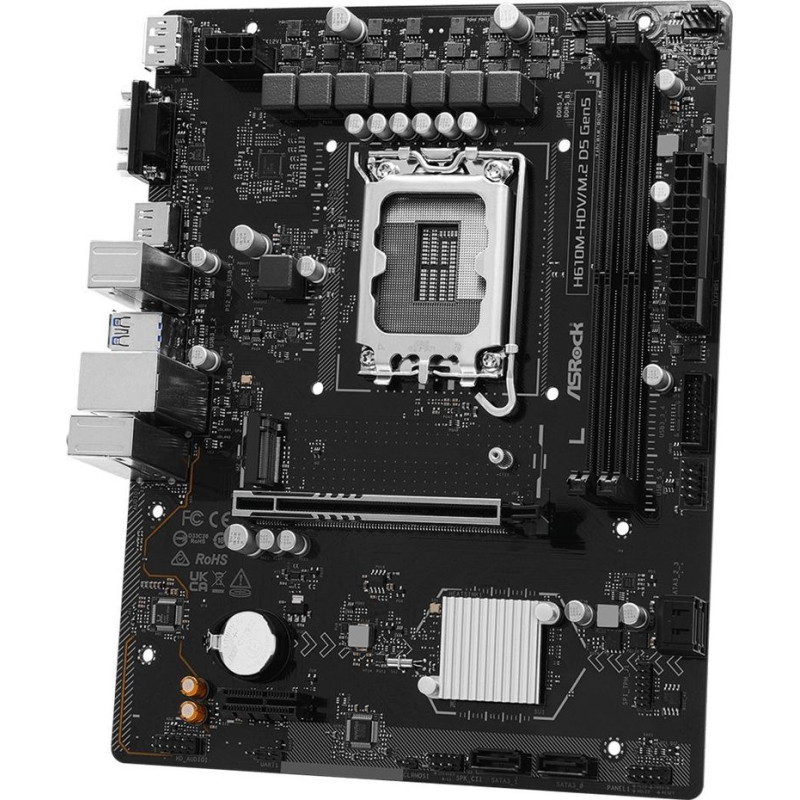

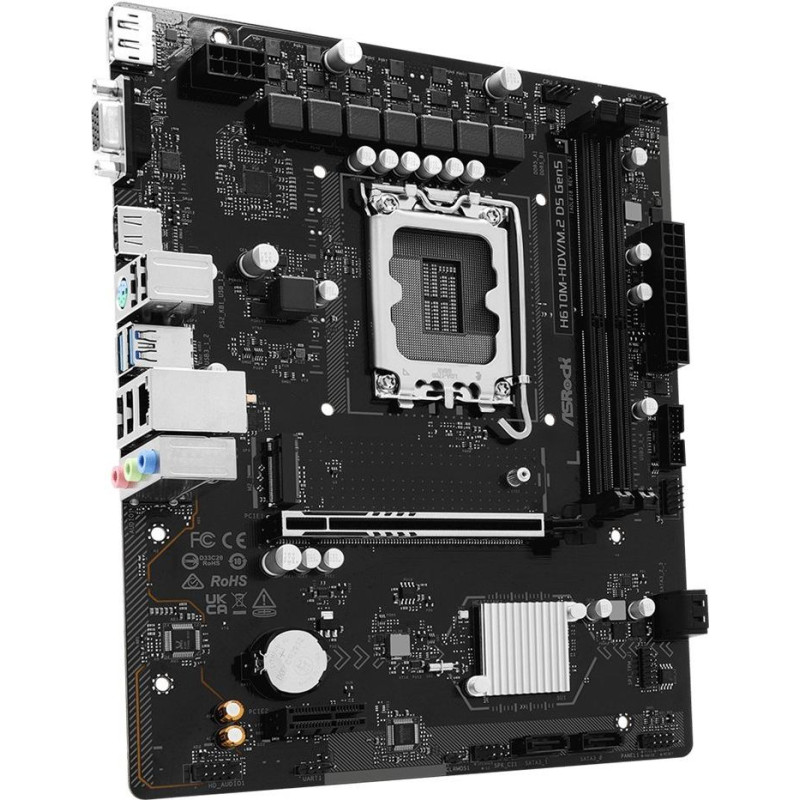

Asrock H610M-HDV/M.2 D5 GEN5 motherboard

Asrock H610M-HDV/M.2 D5 GEN5 motherboard

Delivery to the store in 5 to 7 business days.
ID: 172169
Model H610M-HDV/M.2 D5 GEN5
Barcode 4711581492431
Brand: ASROCK
66.52€
(Ex Tax: 53.64€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesIntel Core i5 12th Gen
Processor manufacturerIntel
Processor socketLGA 1700
HDCP version2.3
On-board graphics card modelIntel Iris Xe Graphics
HDCPYes
Motherboard chipsetIntel H610
Audio chipRealtek ALC897
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speeds4800
Maximum internal memory128 GB
Unbuffered memoryYes
Width244 mm
Depth193 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek 8111H
RGB LED pin headerYes
12V power connectorYes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors1
ATX Power connector (24-pin)Yes
CPU fan connectorYes
TPM connectorYes
Chassis intrusion connectorYes
Number of chassis fan connectors1
BIOS typeUEFI AMI
Cables includedSATA
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
DisplayPort version1.4
DisplayPorts quantity1
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
