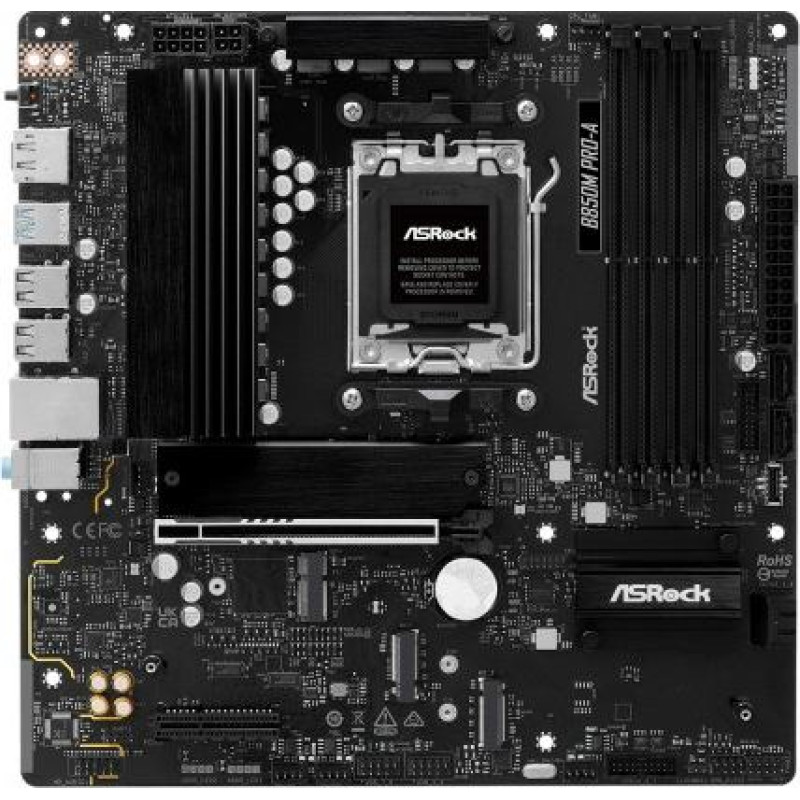

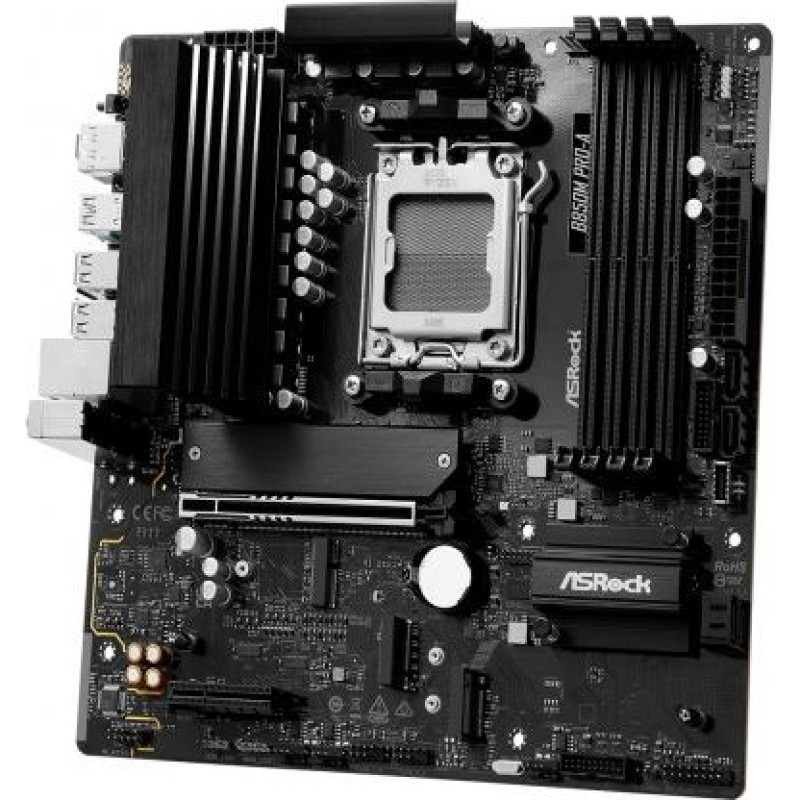

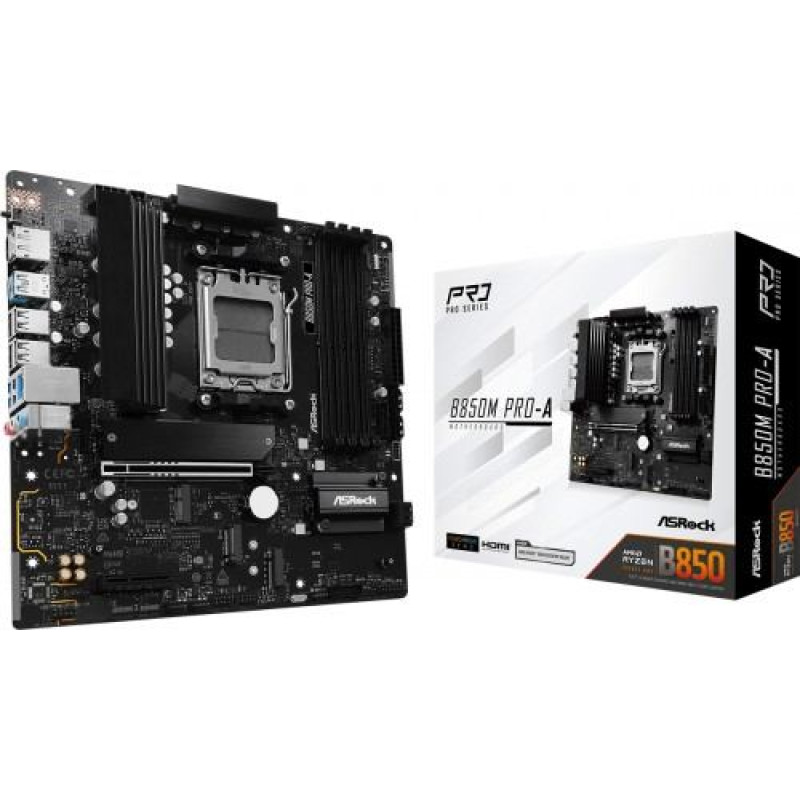

Asrock Motherboard B850M PRO-A AM5 4DDR5 HDMI/DP mATX

Asrock Motherboard B850M PRO-A AM5 4DDR5 HDMI/DP mATX

Delivery to the store in 5 to 7 business days.
ID: 164442
Model B850M PRO-A
Barcode 4711581490390
Brand: ASROCK
113.27€
(Ex Tax: 91.34€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRAA8B850U07
svītrkods: 4711581490390
Description
SKUKBASRAA8B850U07
Barcode4711581490390
ModelB850M PRO-A
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Max memory size256
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Network interface1 x 10/100/1000/2500 Mbit/s
Network interface2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
USB ports at back panel8
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors2 x SMA
External connectors1 x Flash BIOS Button
External connectors1 x HDMI
External connectors1 x DisplayPort
External connectors1 x Line In
Onboard connectors2 x 4pin wentylator CPU
Onboard connectors4 x USB 2.0/1.1
Onboard connectors3 x Addressable LED
Onboard connectors3 x M.2
Onboard connectors1 x 4pin 12V power
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x 4pin Chassis fan
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Power LED and Speaker Header
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
Onboard connectors4 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 1 Type-C
BIOS256 Mb AMI UEFI Legal BIOS z obsługą GUI
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Accessories includedI/O Shield 2 x SATA Data Cables Screw for M.2 Socket
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
