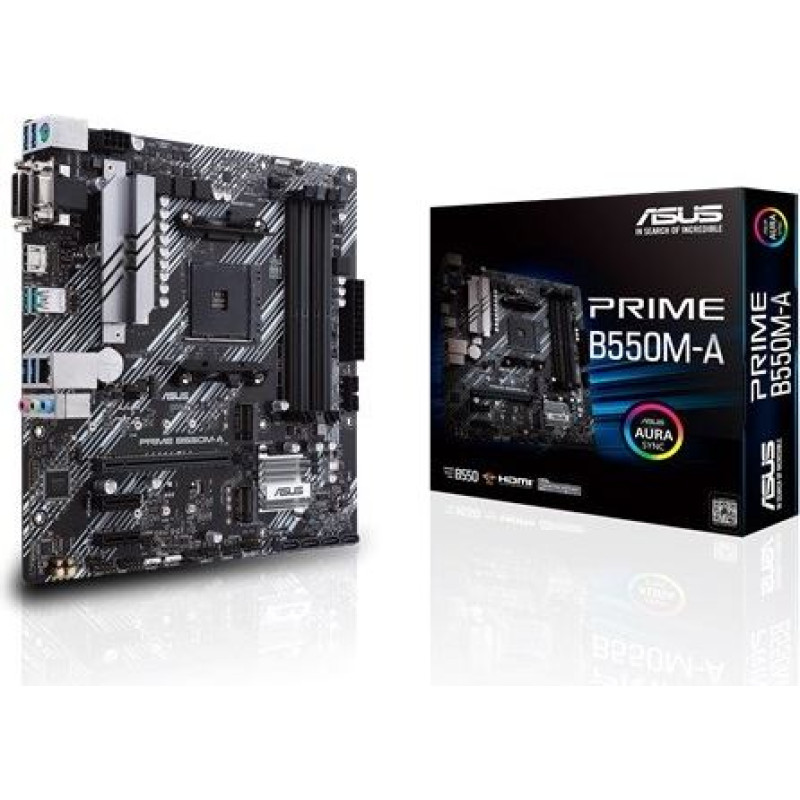

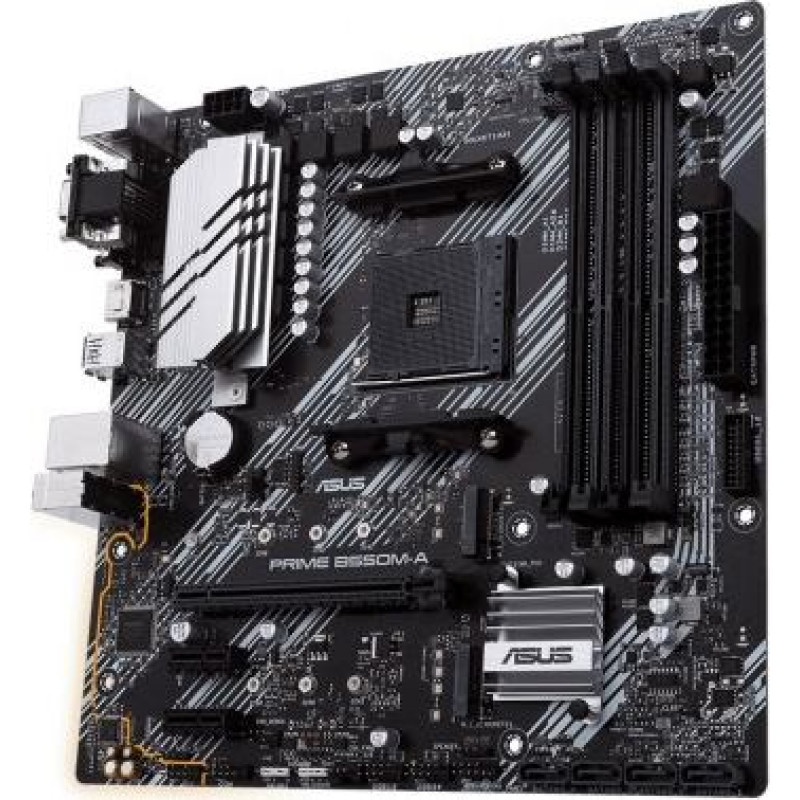

Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX

Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX

Delivery to the store in 7-9 business days.
ID: 168682
Model PRIME B550M-A
Barcode 4718017755528
112.31€
(Ex Tax: 90.57€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA7B550U02
svītrkods: 4718017755528
Description
SKUKBASUAA7B550U02
Barcode4718017755528
ModelPrime B550M-A
CPU socketSocket AM4
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency4200 MHz
Memory bus frequency4266 MHz
Memory bus frequency4333 MHz
Memory bus frequency4400 MHz
Memory bus frequency4600 MHz
Memory bus frequency4133 MHz
Memory bus frequency4000 MHz
Memory bus frequency3866 MHz
Memory bus frequency3600 MHz
Memory bus frequency3733 MHz
Memory bus frequency3466 MHz
Memory bus frequency3400 MHz
Memory bus frequency3333 MHz
Memory bus frequency3200 MHz
Memory bus frequency3000 MHz
Memory bus frequency2933 MHz
Memory bus frequency2800 MHz
Memory bus frequency2133 MHz
Memory bus frequency2400 MHz
Memory bus frequency4800 MHz
Memory bus frequency4466 MHz
Memory bus frequency2666 MHz
Memory bus frequency4866 MHz
Max memory size128
Expansion slots2 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 3.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesIn total, it supports 2 M.2 slots and 4 SATA 6Gb/s slots AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, support for 2242/2260/2280/22110 drives (in SATA and PCIE 3.0 x4 modes) AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, support for 2242/2260/2280 drives (in SATA and PCIE 3.0 x4 modes) 4 x SATA 6Gb/s ports, Raid 0, 1, 10 support
GraphicsD-Sub DVI-D HDMI 2.1(4K@60HZ) *GPU specifications may vary by CPU type.
Sound cardRealtek ALC887/897 7.1 Surround Sound High Definition Audio codec Operation: Jack-detection, plug-in detection, multiple streams, front panel jack reassignment Audio Options: Audio Shielding: Provides accurate analog/digital separation and greatly reduces multi-lateral interference Dedicated audio layers on the PCB: separate layers for the left and right channels to guard the quality of sensitive audio signals LED Backlit Design Brighten up your PC with great lighting modes for your soundtrack. Premium Japanese Audio Capacitors: Provides a warm, natural and deeper sound with exceptional clarity and fidelity
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek RTL8111H 1Gb Ethernet
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 3.0
External connectors1 x DVI-D
External connectors1 x HDMI
External connectors1 x D-Sub
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors2 x USB 3.1
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Serial port header
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x System panel header
Onboard connectors1 x TPM header
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factormicro ATX
Dimensions24.4  x 24.4  cm
Accessories included2 x Serial ATA 6.0Gb/s cables I/O cover DVD user manual M.2 SSD Screw Set
Supported operating systemsWindows 10
SoftwareASUS Exclusive Software AI Suite 3: Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+: EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR Armoury Crate: Aura Creator Aura Sync   UEFI BIOS ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
DesignationCE+WEEE
