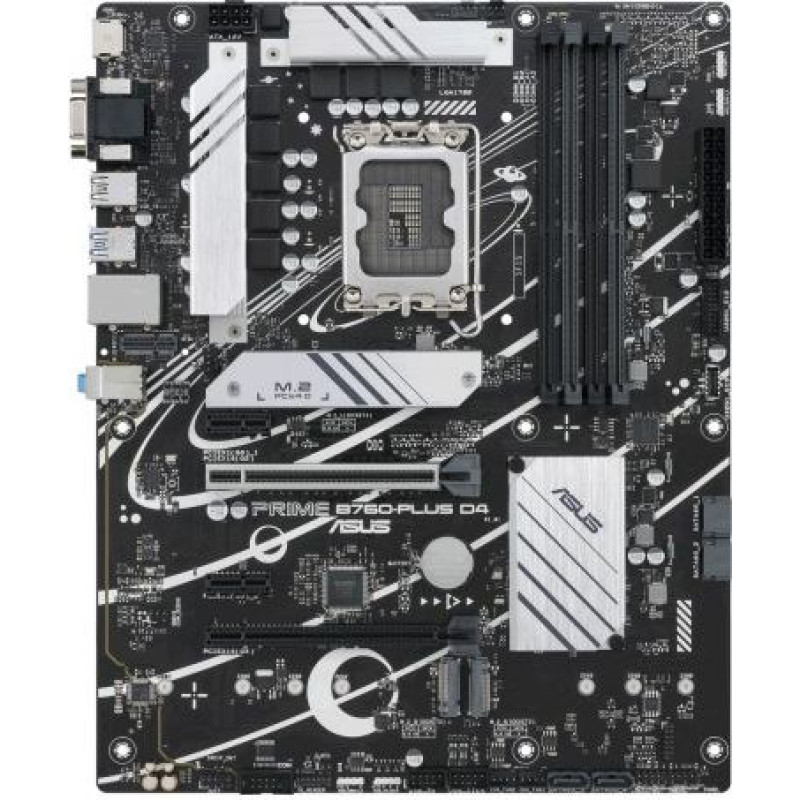

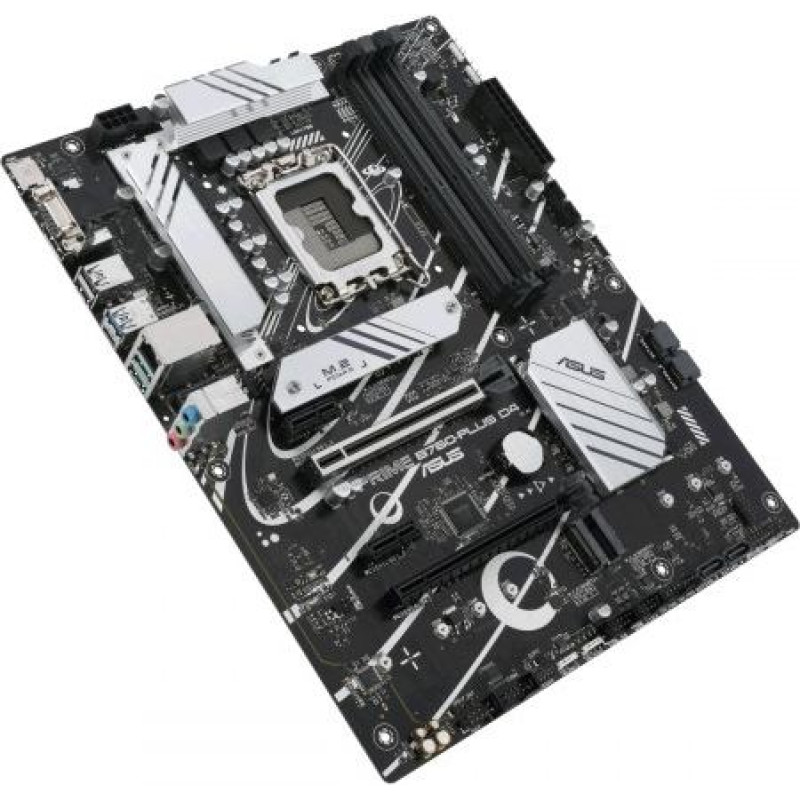

Asus Motherboard PRIME B760-PLUS D4 s1700 4DDR4 ATX

Asus Motherboard PRIME B760-PLUS D4 s1700 4DDR4 ATX

Delivery to the store in 5 to 7 business days.
ID: 167263
Model PRIME B760-PLUS D4
Barcode 4711081970309
Brand: ASUS
110.32€
(Ex Tax: 88.97€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIEB760A04
svītrkods: 4711081970309
Description
SKUKBASUIIEB760A04
Barcode4711081970309
ModelPRIME B760-PLUS D4
CPU socketLGA1700
Processor familyIntel Core
Processor familyIntel Pentium Gold
Processor familyIntel Celeron
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760 Chipset
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency2133 MHz
Memory bus frequency2400 MHz
Memory bus frequency2666 MHz
Memory bus frequency2800 MHz
Memory bus frequency2933 MHz
Memory bus frequency3000 MHz
Memory bus frequency3200 MHz
Memory bus frequency3333 MHz
Memory bus frequency3400 MHz
Memory bus frequency3466 MHz
Memory bus frequency3600 MHz
Memory bus frequency3733 MHz
Memory bus frequency4000 MHz
Memory bus frequency4266 MHz
Memory bus frequency4400 MHz
Memory bus frequency4600 MHz
Memory bus frequency4800 MHz
Memory bus frequency5000 MHz
Memory bus frequency5066 MHz
Max memory size128
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Expansion slots3 x M.2
Expansion slots2 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel Core Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics1 x DisplayPort 1 x VGA port 1 x HDMI port
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC* Supports: jack detection, streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding Premium Audio Capacitors Dedicated PCB Audio Layers *7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceEthernet1 x Realtek 2.5Gb EthernetWireless and BluetoothVertical M.2 slot only (Key E, CNVi, and PCIe)**Wi-Fi module sold separately.
USB ports at back panel6
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

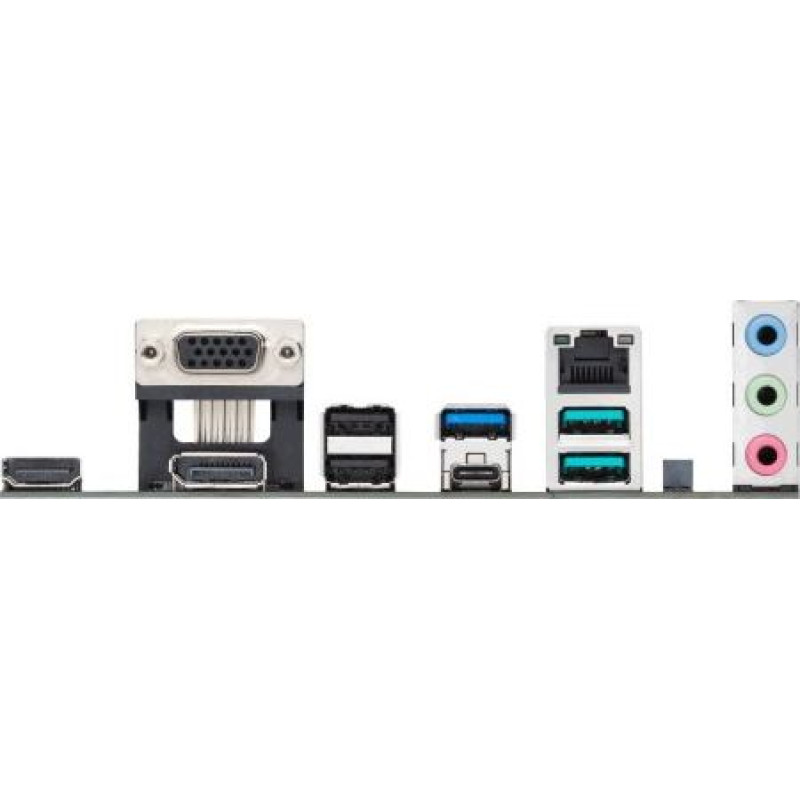

External connectors1 x RJ-45
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x DisplayPort
External connectors1 x D-Sub
External connectors1 x Vertical M.2 Slot
External connectors2 x USB 2.0
External connectors1 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x USB4 Type-C
External connectors1 x HDMI
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Onboard connectors1 x Serial port header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Form factorATX
Dimensions30.5 cm x 24.4 cm

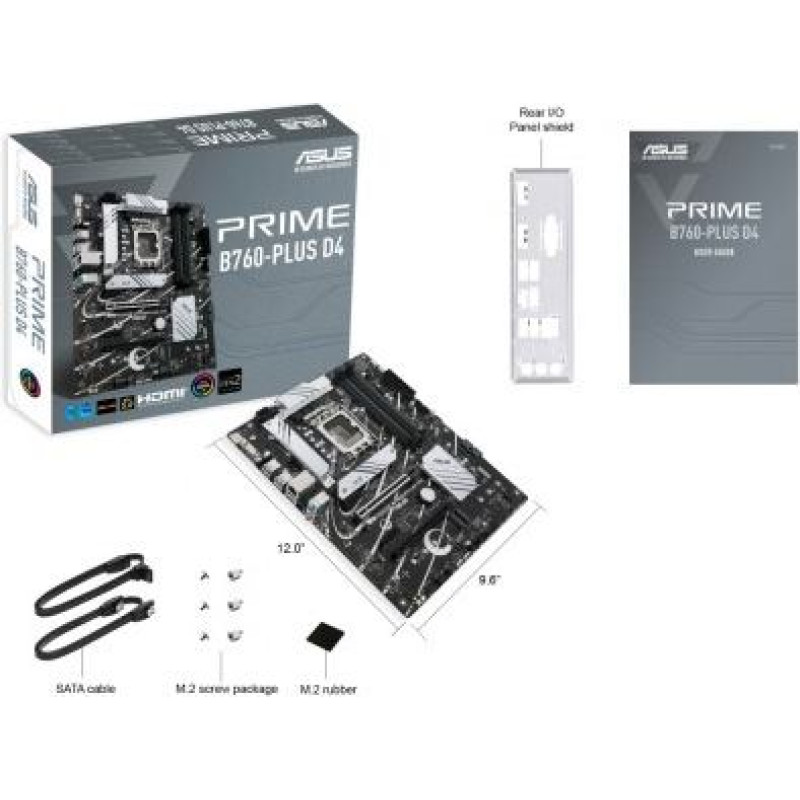

Accessories included2 x SATA 6Gb/s cables 1 x I/O shield 1 x M.2 rubber boot 2 x M.2 SSD screw packs 1 x user manual
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareASUS Exclusive Software Armoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power Saving AI Suite 3- DIGI+ VRM- PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
DesignationCE+WEEE
