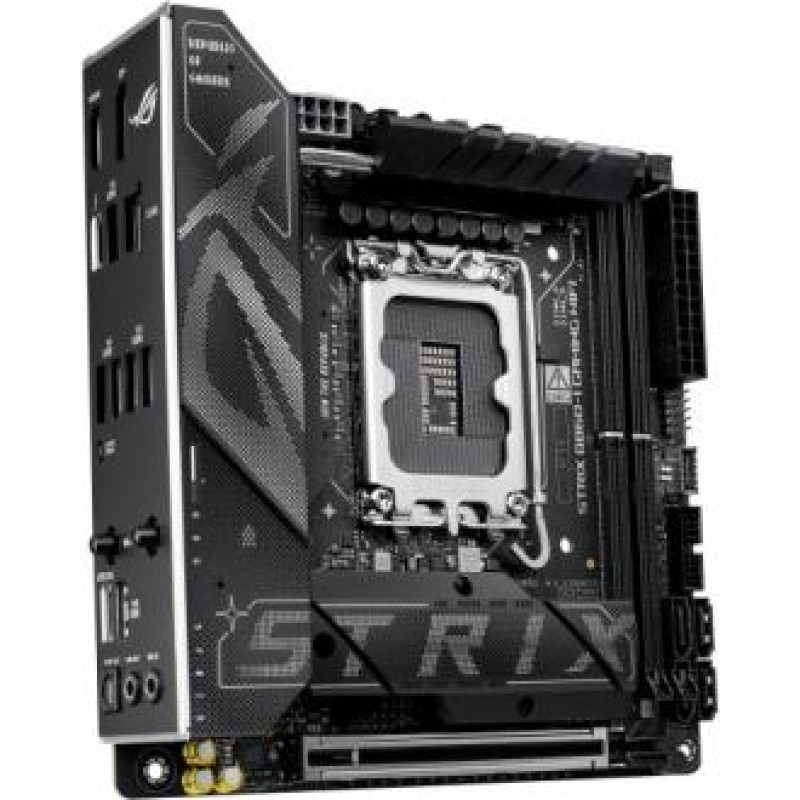

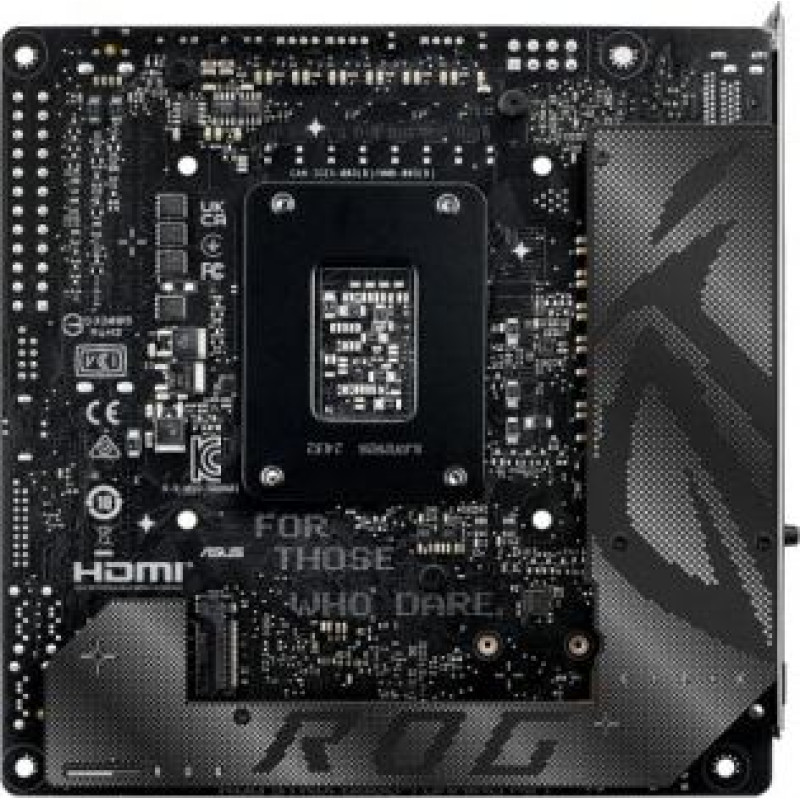

Asus Motherboard ROG STRIX B860-I GAMING WIFI s1851 4DDR5 TB ITX

Asus Motherboard ROG STRIX B860-I GAMING WIFI s1851 4DDR5 TB ITX

Delivery to the store in 5 to 7 business days.
ID: 166707
Model ROG STRIX B860-I GAMING WIFI
Barcode 4711387815991
Brand: ASUS
251.91€
(Ex Tax: 203.15€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIFB860M00
svītrkods: 4711387815991
Description
SKUKBASUIIFB860M00
Barcode4711387815991
ModelROG STRIX B860-I GAMING WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B860 Chipset
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency9066 MHz
Max memory size128
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics1 x DisplayPort 1 x HDMI 1 x Intel Thunderbolt 4
Sound cardRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* Audio Features  SupremeFX Shielding Technology Savitech SV3H712 AMP   Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceEthernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard   Wireless & Bluetooth: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
USB ports at back panel8
USB ports on motherboard5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Thunderbolt 4
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors2 x USB 2.0
External connectors3 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x USB 3.2 Gen 2x2 Type-C
External connectors1 x Przycisk Clear CMOS
External connectors1 x Wi-Fi Module
Onboard connectors1 x Thermal sensor connector
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin Chassis fan
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x Addressable LED
BIOS256Mb Flash ROM, UEFI AMI BIOS
Form factormini ITX
Dimensions17 x 17 cm
Accessories included2 x SATA 6Gb/s cables ROG USB2.0 splitter cable Panel cable ASUS WiFi Q-Antenna Cable ties package M.2 Q-Latch package Screw package for M.2 SSD M.2 Bracket ROG key chain ROG Strix stickers Quick start guide
Supported operating systemsWindows 11
SoftwareWOL by PME, UEFI PXE
DesignationCE+WEEE
