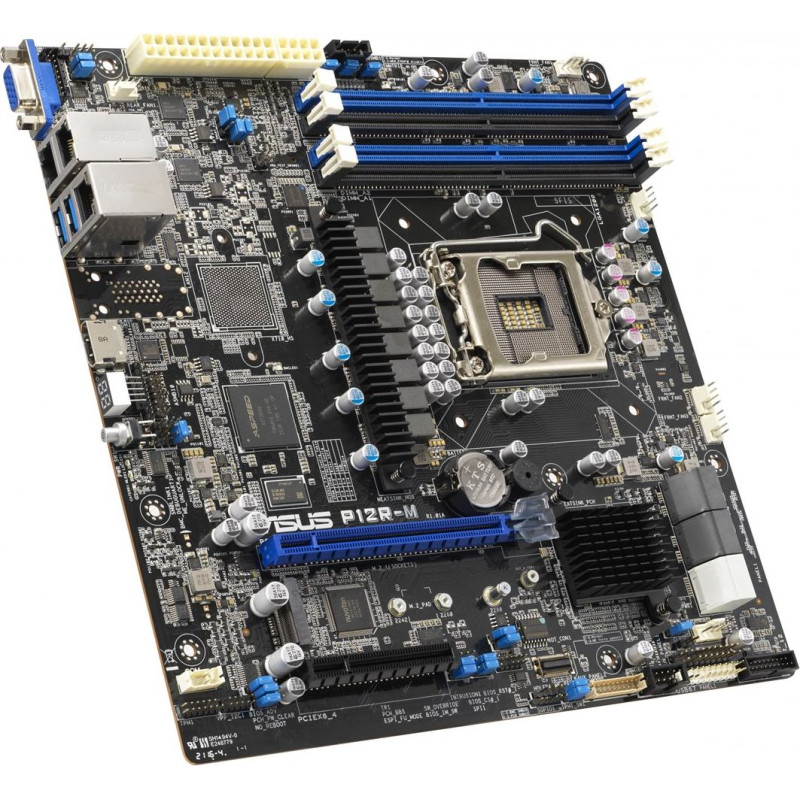

Asus P12R-M Intel C252 LGA 1200 (Socket H5) micro ATX server motherboard

Asus P12R-M Intel C252 LGA 1200 (Socket H5) micro ATX server motherboard

Out Of Stock
ID: 168423
Model 90SB09X0-M1UAY0
Barcode 4711081684749
Brand: ASUS
317.80€
(Ex Tax: 256.29€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesIntel® Pentium®
Processor manufacturerIntel
Processor socketLGA 1200 (Socket H5)
Graphics card familyASPEED
On-board graphics card memory64 MB
Graphics cardAST2600
Component forServer
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel C252
Memory channelsDual-channel
Supported memory module capacities16GB
Supported memory clock speeds3200
Maximum internal memory128 GB
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Storage relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Depth244 mm
Width244 mm
LAN controllerIntel® I210-AT
Ethernet LANYes
Wi-FiNo
EPS power connector (8-pin)Yes
Number of SATA III connectors6
ATX Power connector (24-pin)Yes
Serial port headers1
USB 3.2 Gen 2 (3.1 Gen 2) connectors2
Package weight1.3 kg
Supported storage drive interfacesM.2, SATA III
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
HDMI ports quantity1
VGA (D-Sub) ports quantity1
Number of M.2 (M) slots1
PCI Express x16 (Gen 4.x) slots1
Harmonized System (HS) code84733020
WarningsAdjust adequate ventilation to avoid overheating and potential damage.
