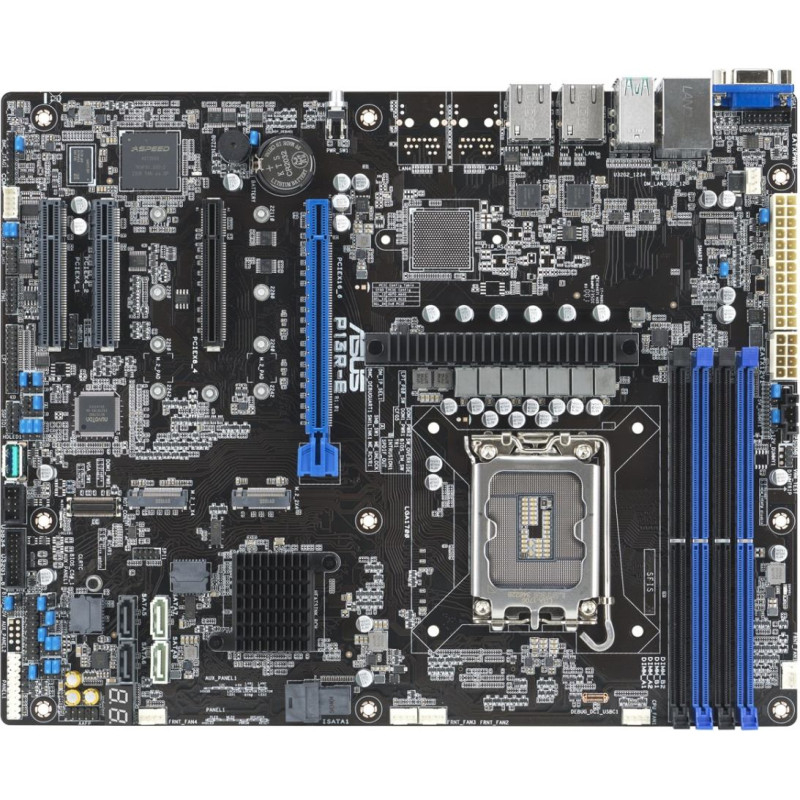

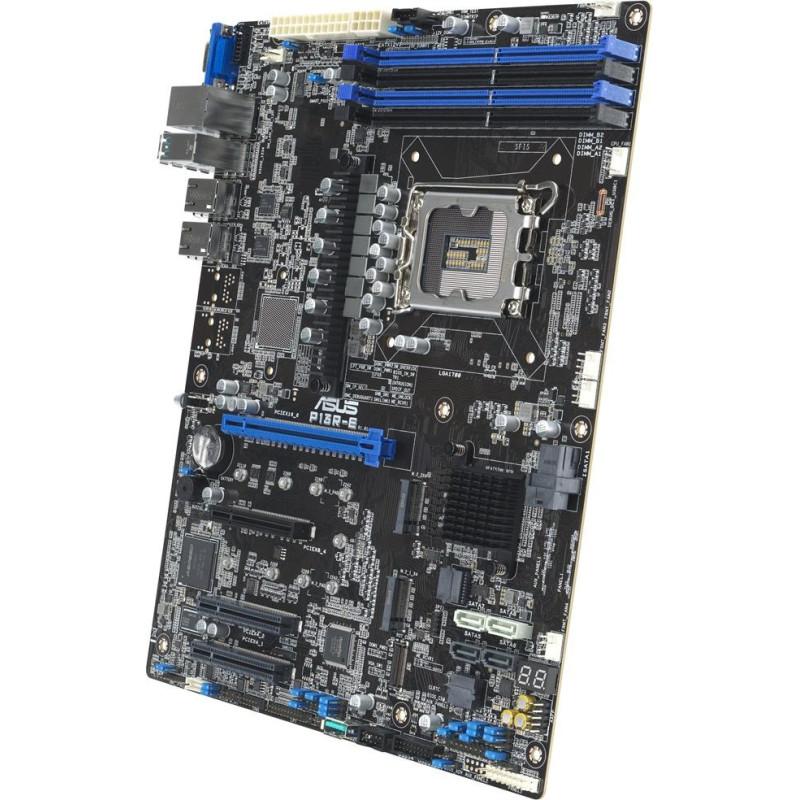

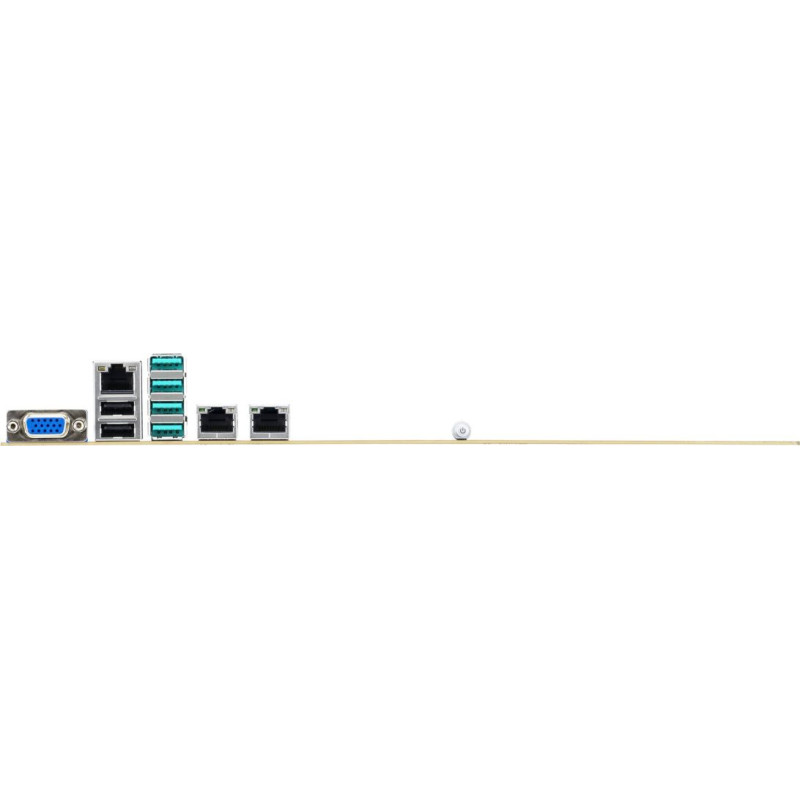

Asus P13R-E Intel C266 LGA 1700 ATX

Asus P13R-E Intel C266 LGA 1700 ATX

Delivery to the store takes 3 - 7 business days.
ID: 163032
Model 90SB0CS0-M0UAY1
Barcode 4711636234283
Brand: ASUS
421.18€
(Ex Tax: 339.66€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Compatible processor seriesAMD Turion X2 Ultra Dual-Core
Processor manufacturerIntel
Supported processor socketsLGA 1700
Parallel processing technology supportNot supported
Cooling typePassive
Power source typeATX
Component forServer
Motherboard chipsetIntel C266
Motherboard form factorATX
Motherboard chipset familyIntel
Product colourBlack
PC health monitoringTemperature
Supported memory clock speed (max)4400 MHz
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
ECC сompatibilityECC
Maximum internal memory per slot32 GB
Maximum internal memory128 GB
Supported memory clock speeds4400
Operating temperature (T-T)10 - 50 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C
Height68 mm
Depth244 mm
Width305 mm
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
Number of COM connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
TPM connectorYes
Front panel connectorYes
Number of chassis fan connectors6
12V power connectorYes
Number of EPS power connectors (8-pin)1
USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors8
Package depth281 mm
Package weight1.5 kg
Package width341 mm
Package height78 mm
Number of storage drives supported10
Number of HDDs supported8
Supported storage drive interfacesPCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity2
VGA (D-Sub) ports quantity1
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 (Gen 4.x) slots2
Number of M.2 (M) slots2
2nd M.2 largest key size22110
1st M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation4.0
PCI Express x8 (Gen 5.x) slots1
Weight800 g
