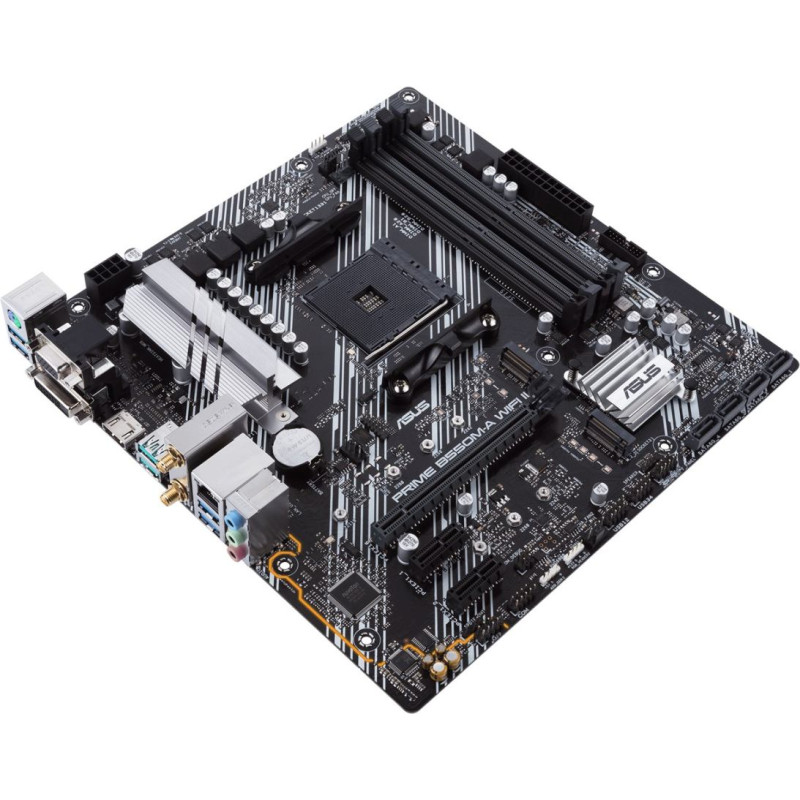

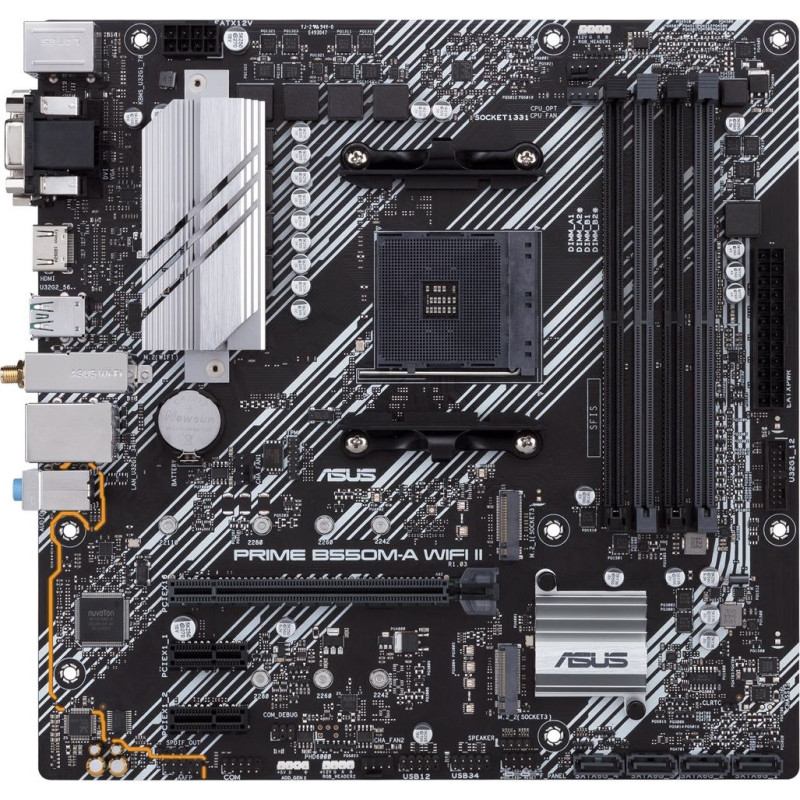

Asus PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX

Asus PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 178267
Model 90MB19X0-M0EAY0
Barcode 4711081309741
Brand: ASUS
95.97€
(Ex Tax: 77.40€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 5000 Series
Processor socketSocket AM4
Processor manufacturerAMD
Supported processor socketsSocket AM4
Parallel processing technology supportNot supported
On-board graphics cardNo
Motherboard form factormicro ATX
Product colourMulticolour
Motherboard chipset familyAMD
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Motherboard chipsetAMD B550
Supported memory clock speeds3866
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Unbuffered memoryYes
Number of memory slots4
Memory channelsDual-channel
Maximum internal memory128 GB
ECC сompatibilityECC
Depth244 mm
Height67 mm
Width244 mm
LAN controllerRealtek RTL8111H
BluetoothYes
Wi-Fi standards802.11a
Ethernet LANYes
Bluetooth version5.2
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wake-on-LAN readyYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2
CPU fan connectorYes
Number of EATX power connectors1
EPS power connector (8-pin)Yes
RGB LED pin headerYes
ATX Power connector (24-pin)Yes
S/PDIF out connectorYes
TPM connectorYes
Number of chassis fan connectors2
12V power connectorYes
Front panel audio connectorYes
Number of COM connectors1
Number of SATA III connectors4
BIOS typeUEFI AMI
Clear CMOS jumperYes
Cables includedSATA
Drivers includedYes
Number of storage drives supported6
Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
RAID levels10

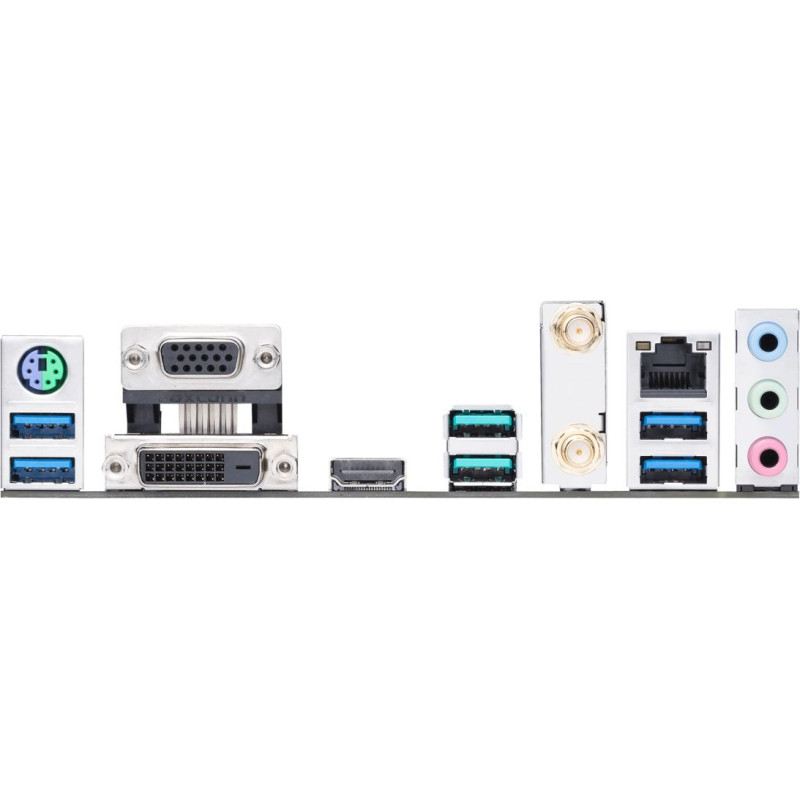

DVI-D ports quantity1
Microphone inYes
USB connector typeUSB Type-A
WiFi-AP antenna jack1
Headphone outputs1
VGA (D-Sub) ports quantity1
HDMI version2.1
PS/2 ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x1 (Gen 3.x) slots2
Number of M.2 (M) slots2
Packaging content2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual
Weight845 g
Harmonized System (HS) code84733020
WarningsAvoid direct contact with sensitive electronic components.
