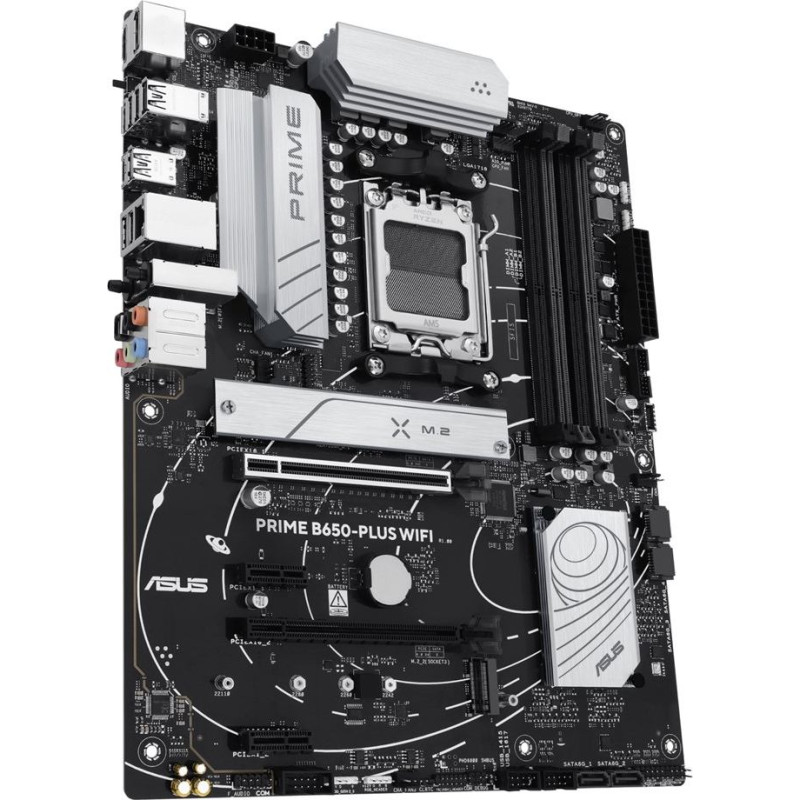

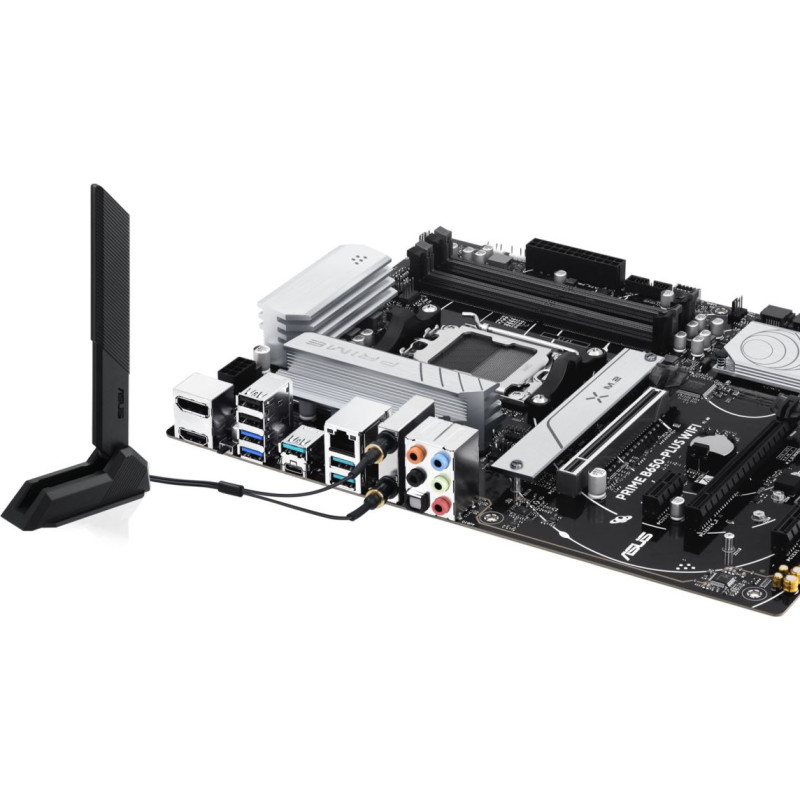

Asus PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX

Asus PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX

Out Of Stock
ID: 163220
Model 90MB1KP0-M0EAY0
Barcode 4711387760895
Brand: ASUS
131.17€
(Ex Tax: 105.78€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Parallel processing technology supportNot supported
Motherboard chipset familyAMD
Audio output channels7.1 channels
Motherboard form factorATX
Motherboard chipsetAMD B650
Windows operating systems supportedWindows 11
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds6000
Unbuffered memoryYes
Supported memory clock speed (max)7600 MHz
Maximum internal memory192 GB
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory channelsDual-channel
Depth244 mm
Width305 mm
BluetoothYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
Ethernet LANYes
Wi-FiYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Number of CPU fan connectors2
Number of RGB LED pin headers1
Thunderbolt headers1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
Number of SATA III connectors4
Front panel audio connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
RGB LED pin headerYes
Number of chassis fan connectors3
12V power connectorYes
Front panel connectorYes
TPM connectorYes
BIOS typeUEFI AMI
Package weight1.35 kg
Package width338 mm
Package height68 mm
Package depth373 mm
Antenna includedYes
Cables includedSATA
Screws includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Number of HDDs supported4
Number of storage drives supported6
USB 2.0 ports quantity2
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
S/PDIF out portYes
WiFi-AP antenna jack1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size22110
2nd M.2 largest key size22110
Number of M.2 (M) slots2
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots2
