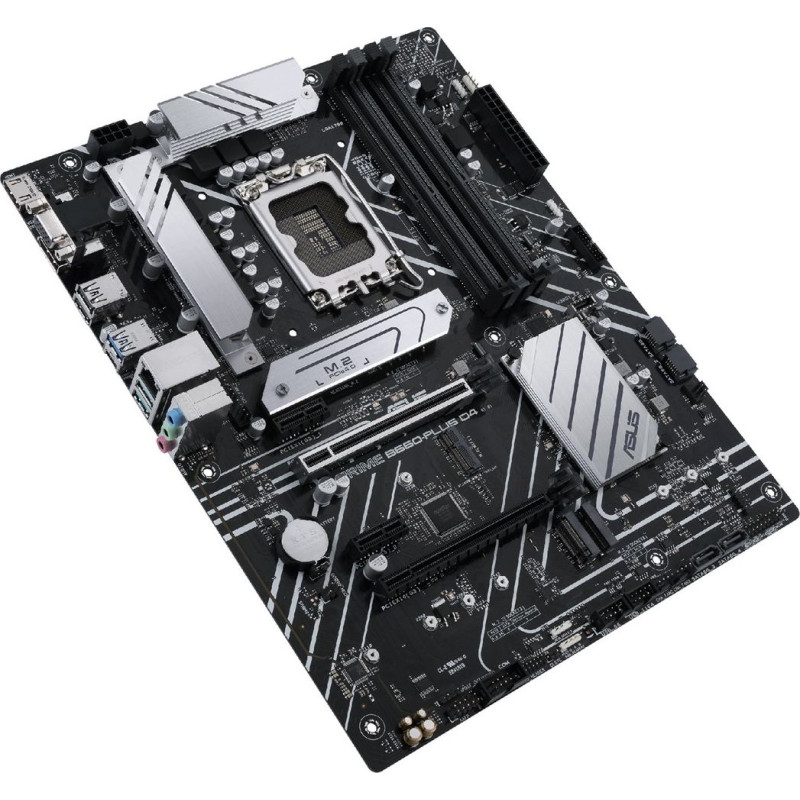

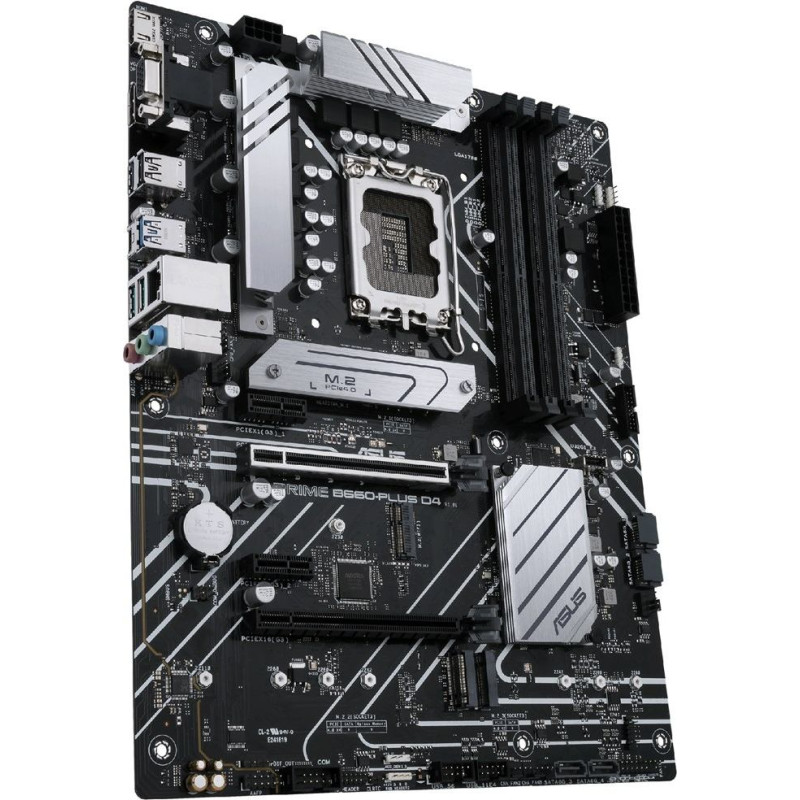

Asus PRIME B660-PLUS D4 Intel B660 LGA 1700 ATX

Asus PRIME B660-PLUS D4 Intel B660 LGA 1700 ATX

Delivery to the store in 5 to 7 business days.
ID: 163122
Model 90MB18X0-M1EAY0
Barcode 4711081523017
Brand: ASUS
118.81€
(Ex Tax: 95.82€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Processor manufacturerIntel
Compatible processor seriesIntel® Core™ i5
Supported processor socketsLGA 1700
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Power source typeATX
Motherboard chipsetIntel B660
Motherboard chipset familyIntel
Motherboard form factorATX
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory typesDDR4-SDRAM
Number of memory slots4
Supported memory clock speeds3000
Unbuffered memoryYes
Maximum internal memory128 GB
ECC сompatibilityNon-ECC
Depth244 mm
Height53 mm
Width305 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
RGB LED pin headerYes
TPM connectorYes
Number of COM connectors1
EPS power connector (8-pin)Yes
Chassis intrusion connectorYes
Front panel connectorYes
Front panel audio connectorYes
S/PDIF out connectorYes
Thunderbolt headers1
ATX Power connector (24-pin)Yes
CPU fan connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of chassis fan connectors3
Number of SATA III connectors4
Clear CMOS jumperYes
BIOS typeUEFI AMI
Cables includedSATA
Number of HDDs supported4
Number of storage drives supported7
Supported storage drive typesHDD & SSD
RAID supportYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI version2.1
Headphone outputs3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
VGA (D-Sub) ports quantity1
DisplayPort version1.4
USB connector typeUSB Type-A
USB 2.0 ports quantity2
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots3
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
Weight891 g
Harmonized System (HS) code84733020
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
