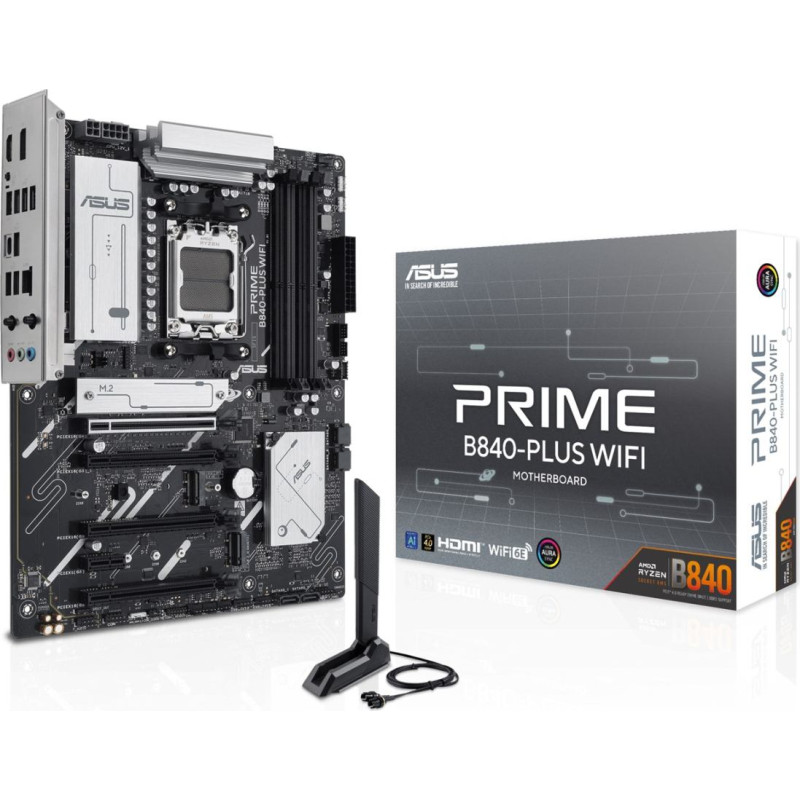

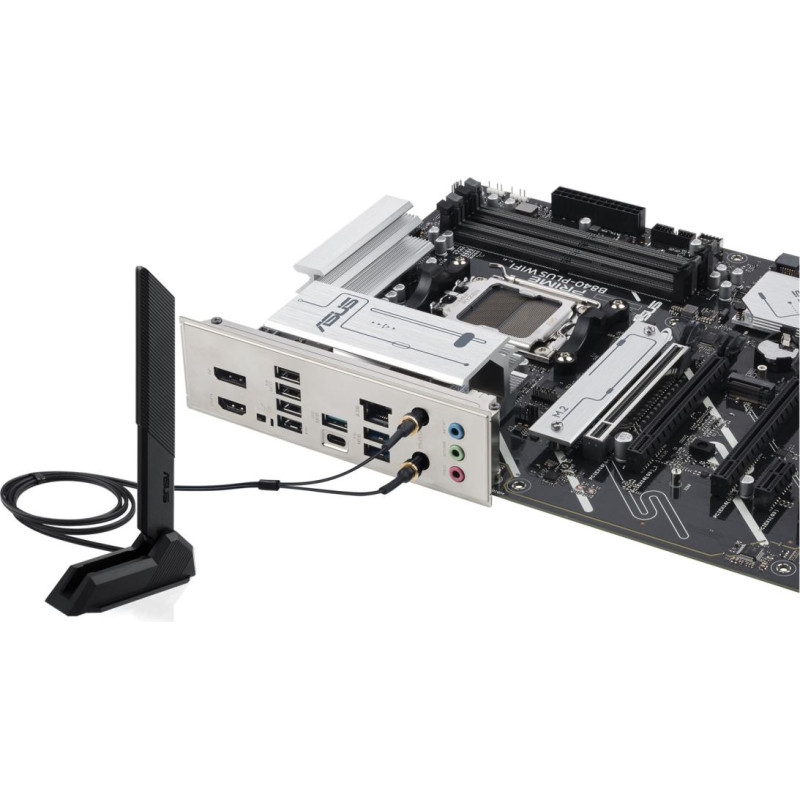

Asus PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX

Asus PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX

Out Of Stock
ID: 163256
Model 90MB1IZ0-M0EAY0
Barcode 4711387797273
Brand: ASUS
103.05€
(Ex Tax: 83.11€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 8000 Series
Processor socketSocket AM5
Supported processor socketsSocket AM5
Parallel processing technology supportNot supported
On-board graphics cardNo
Motherboard chipsetAMD B840
Motherboard form factorATX
Motherboard chipset familyAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 11
Product colourBlack
ECC сompatibilityECC & Non-ECC
Memory channelsDual-channel
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Maximum internal memory192 GB
Width305 mm
Depth244 mm
Bluetooth version5.3
Wi-FiYes
Wi-Fi standardsWi-Fi 6E (802.11ax)
BluetoothYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
12V power connectorYes
USB 2.0 connectors2
Front panel audio connectorYes
Chassis intrusion connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Thunderbolt headers1
Number of COM connectors1
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
CPU fan connectorYes
TPM connectorYes
S/PDIF out connectorYes
Number of chassis fan connectors4
BIOS typeUEFI AMI
Package weight1.26 kg
Package width353 mm
Package depth273 mm
Package height68 mm
Antenna includedYes
Screws includedYes
Cables includedSATA
Number of HDDs supported4
RAID levels5
RAID supportYes
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Supported storage drive interfacesM.2, SATA III
WiFi-AP antenna jack1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
DisplayPorts quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
3rd M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 4.x) slots1
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
3rd M.2 highest PCI Express generation3.0
2nd M.2 largest key size2280
Number of M.2 (M) slots3
PCI Express x16 (Gen 3.x) slots3
PCI Express x1 (Gen 3.x) slots1
WarningsAvoid contact with liquids to prevent electronic damage.
