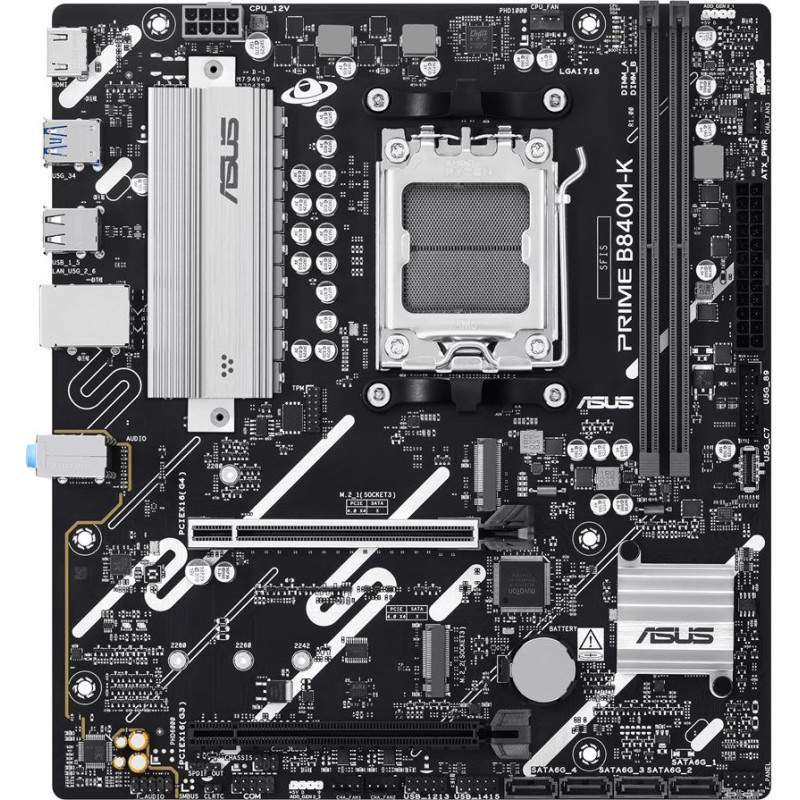

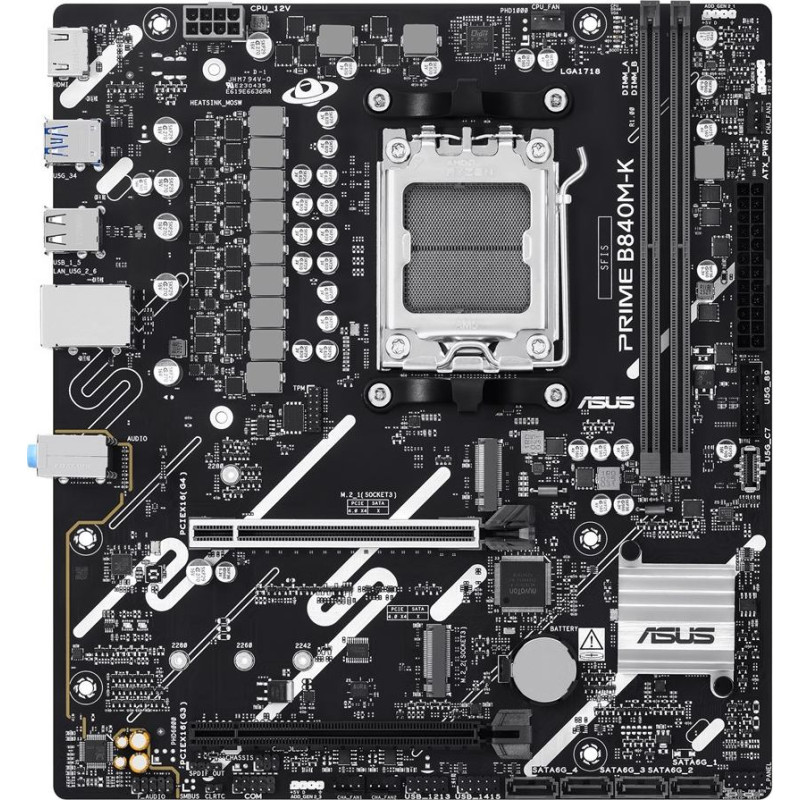

Asus PRIME B840M-K AMD B840 Socket AM5 micro ATX

Asus PRIME B840M-K AMD B840 Socket AM5 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 173273
Model 90MB1PK0-M0EAY0
Barcode 4711636435048
Brand: ASUS
139.75€
(Ex Tax: 112.70€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Supported processor socketsSocket AM5
Parallel processing technology supportNot supported
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Motherboard chipsetAMD B840
Product colourBlack
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Unbuffered memoryYes
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
ECC сompatibilityECC & Non-ECC
Number of memory slots2
Maximum internal memory128 GB
Width244 mm
Depth221 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
USB 2.0 connectors2
Number of COM connectors1
Number of SATA III connectors4
Front panel audio connectorYes
EPS power connector (8-pin)Yes
RGB LED pin headerYes
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Number of RGB LED pin headers3
Front panel connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
TPM connectorYes
12V power connectorYes
Number of chassis fan connectors3
CPU fan connectorYes
BIOS typeUEFI AMI
Package weight1.02 kg
Package width270 mm
Package depth263 mm
Package height51.5 mm
Cables includedSATA
Screws includedYes
Number of HDDs supported4
RAID levels1
Number of storage drives supported6
Supported storage drive typesHDD & SSD
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 2.0 ports quantity2
HDMI ports quantity1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2
