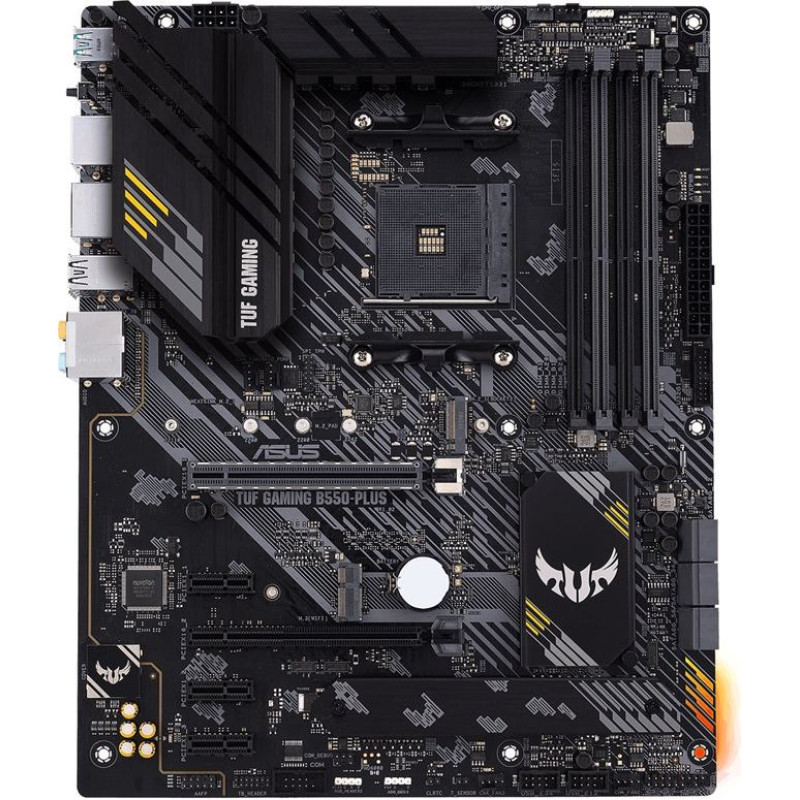

Asus TUF Gaming B550-PLUS Socket AM4 ATX AMD B550

Asus TUF Gaming B550-PLUS Socket AM4 ATX AMD B550

Delivery to the store in 5 to 7 business days.
ID: 171135
Model 90MB14G0-M0EAY0
Barcode 4718017749435
Brand: ASUS
113.72€
(Ex Tax: 91.71€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM4
Compatible processor series3rd Generation AMD Ryzen™ 7
Maximum number of SMP processors1
Processor manufacturerAMD
Processor socketSocket AM4
Parallel processing technology support2-Way CrossFireX
Motherboard chipsetAMD B550
Motherboard form factorATX
Audio chipRealtek ALC S1200A
Motherboard chipset familyAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64
Supported memory clock speeds3600
Maximum internal memory128 GB
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Width305 mm
Depth244 mm
LAN controllerRealtek RTL8125B
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Number of SATA connectors4
Number of SATA III connectors6
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
Number of chassis fan connectors3
TPM connectorYes
CPU fan connectorYes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Cables includedSATA
Drivers includedYes
Supported storage drive interfacesM.2, Serial ATA
RAID levels10
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
S/PDIF out portYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
PS/2 ports quantity1
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
