Home Computers and equipment Computer components Motherboard Gigabyte B550 AORUS ELITE AX V2 AM4 4DDR4 HDMI/DP M.2 ATX

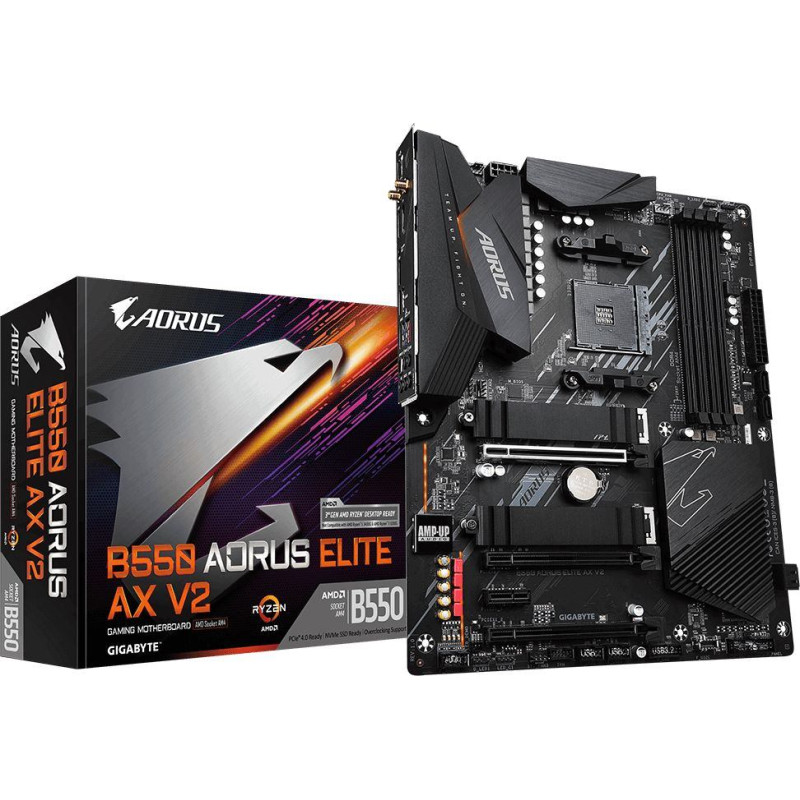

Gigabyte B550 AORUS ELITE AX V2 AM4 4DDR4 HDMI/DP M.2 ATX

GIGABYTE

Gigabyte B550 AORUS ELITE AX V2 AM4 4DDR4 HDMI/DP M.2 ATX

Out Of Stock
ID: 87928
Model B550 AORUS ELITE AX V2
Barcode 4719331809904
138.21€
(Ex Tax: 111.46€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7B550A08
svītrkods: 4719331809904
Description
SKUKBGBAAA7B550A08
Barcode4719331809904
ModelB550 AORUS Elite AX V2
CPU socketSocket AM4
Processor familyNon-CPU
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency2400 MHz
Memory bus frequency4600 MHz
Memory bus frequency2933 MHz
Memory bus frequency3200 MHz
Memory bus frequency4733 MHz
Memory bus frequency4400 MHz
Memory bus frequency4266 MHz
Memory bus frequency4133 MHz
Memory bus frequency4000 MHz
Memory bus frequency3733 MHz
Memory bus frequency3866 MHz
Memory bus frequency3600 MHz
Memory bus frequency3466 MHz
Memory bus frequency3400 MHz
Memory bus frequency2667 MHz
Memory bus frequency2133 MHz
Max memory size128
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe x 1
Expansion slots2 x PCIe x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesRAID 0, RAID 1, and RAID 10
Network interfaceBluetooth
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interface1 x 10/100/1000/2500 Mbit/s
USB ports at back panel7
USB ports on motherboard5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
External connectors1 x Line In
External connectors1 x S/PDIF
External connectors1 x Central Speaker / Subwoofer
External connectors2 x SMA
External connectors2 x USB 3.1
External connectors1 x Q-Flash Plus button
External connectors2 x USB 2.0
External connectors3 x USB 3.0
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x Rear Speaker
External connectors1 x HDMI
External connectors1 x DisplayPort
Onboard connectors1 x Front panel audio header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x TPM header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x System panel header
Form factorATX
Supported operating systemsWindows 10
DesignationCE+WEEE
