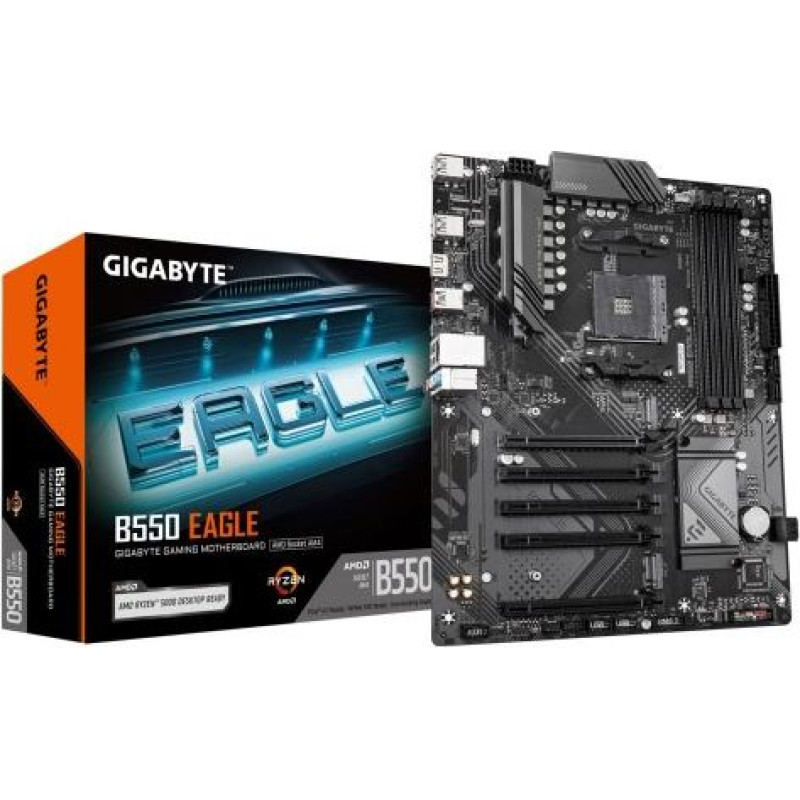

Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX

GIGABYTE

Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX

Delivery to the store in 5 to 7 business days.
ID: 172031
Model B550 EAGLE
Barcode 4719331868208
94.09€
(Ex Tax: 75.88€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7B550A09
svītrkods: 4719331868208
Description
SKUKBGBAAA7B550A09
Barcode4719331868208
ModelB550 Eagle
CPU socketSocket AM4
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency2133 MHz
Memory bus frequency2933 MHz
Memory bus frequency3200 MHz
Memory bus frequency2400 MHz
Memory bus frequency2667 MHz
Max memory size128
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesChipset 1.4 × PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
GraphicsIntegrated graphics support: AMD Radeon graphics card compatible 1 × HDMI port: Supports up to 4096 × 2160 @ 60 Hz
Sound cardAudio codec: Realtek High Definition Audio support Audio channels: 2/4/5.1/7.1
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.0
External connectors1 x USB 3.1
External connectors1 x USB 3.0 Type-C
External connectors1 x HDMI
External connectors1 x Q-Flash Plus button
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x USB C
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
