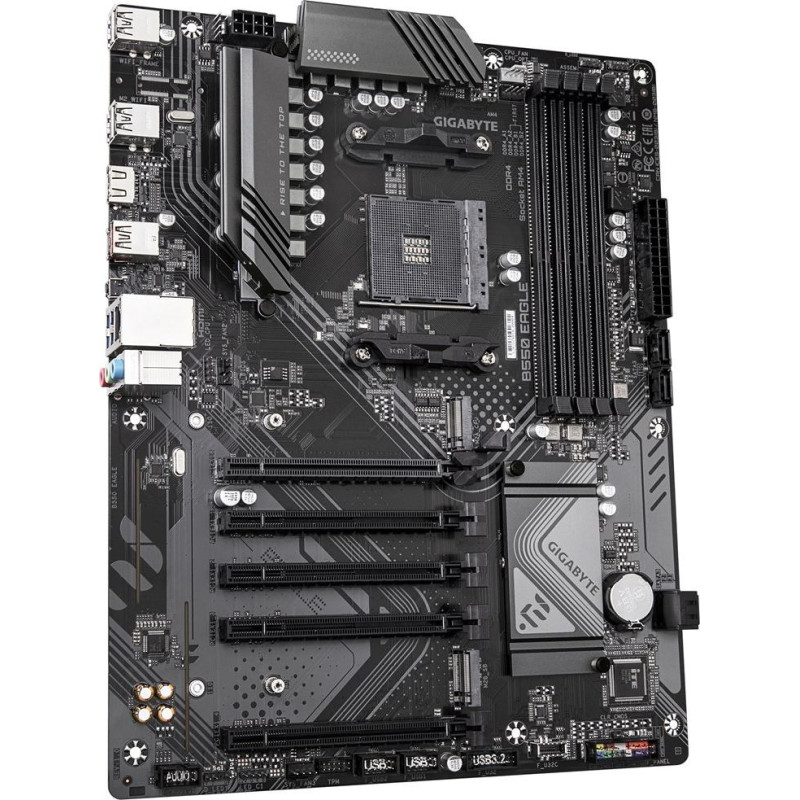

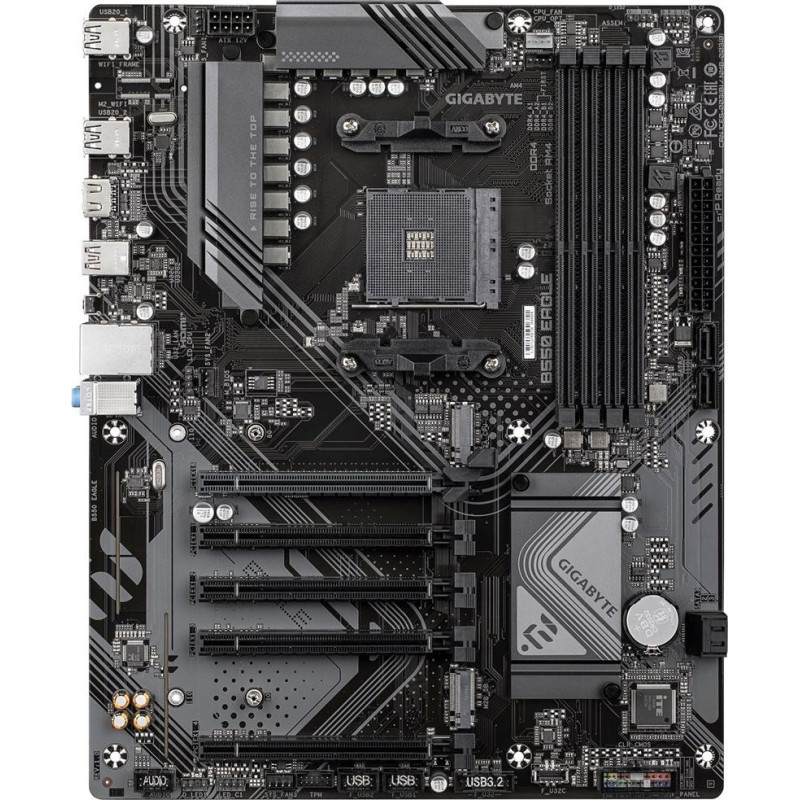

Gigabyte B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2

GIGABYTE

Gigabyte B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2

Delivery to the store in 5 to 7 business days.
ID: 181203
Model B550 EAGLE
Barcode 4719331868208
95.39€
(Ex Tax: 76.93€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM4
Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series
HDCPYes
Maximum resolution4096 x 2160 pixels
Parallel processing technology supportNot supported
DirectX version12.0
Motherboard chipset familyAMD
Product colourDark brown
PC health monitoringVoltage
Windows operating systems supportedWindows 10 x64
Motherboard chipsetAMD B550
Cooling typePassive
Audio output channels7.1 channels
Audio chipRealtek ALC897
Motherboard form factorATX
Power source typeATX
ECC сompatibilityECC & Non-ECC
Maximum internal memory per slot32 GB
Supported memory clock speeds2667
Maximum internal memory128 GB
Unbuffered memoryYes
Memory channelsDual-channel
Number of memory slots4
Memory slots typeDIMM
Supported memory clock speed (max)3200 MHz
Supported memory typesDDR4-SDRAM
Height35 mm
Width305 mm
Depth244 mm
LAN controllerRealtek RTL8111H
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Number of RGB LED pin headers5
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
Number of water pump connectors1
CPU fan connectorYes
Front panel connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of chassis fan connectors3
Front panel audio connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
RGB LED pin headerYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package height80 mm
Package width335 mm
Package weight1.48 kg
Package depth270 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Batteries includedYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
Number of HDDs supported4
Number of storage drives supported6

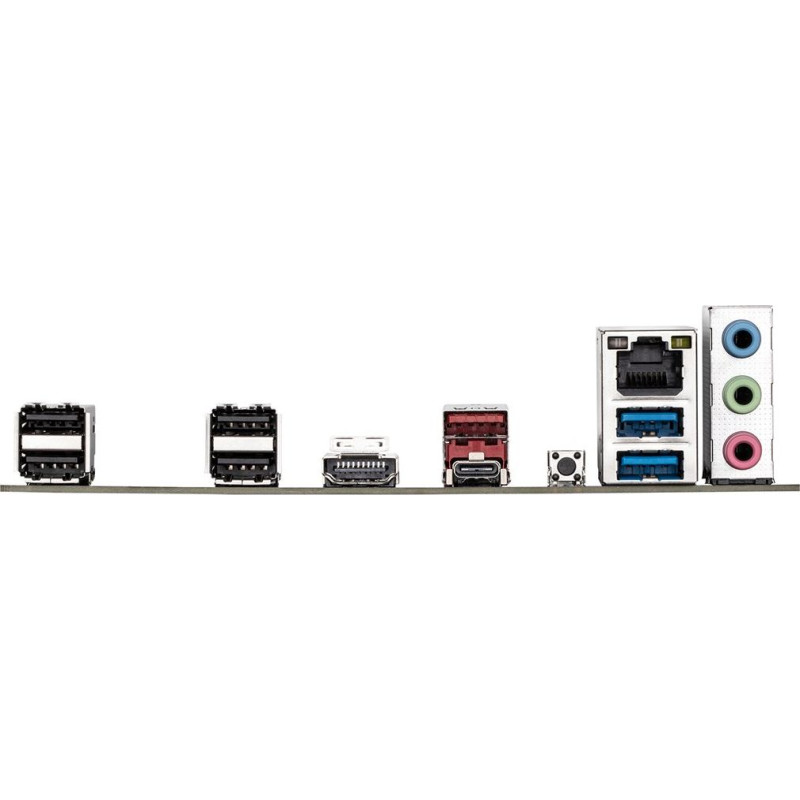

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI version2.1
HDMI ports quantity1
Microphone inYes
Line-inYes
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
1st M.2 largest key size22110
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation3.0
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots4
PCI Express x16 (Gen 4.x) slots1
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery weight3 g
Number of battery cells1
Lithium weight per battery0.07 g
Weight1.25 kg
Products per shipping (inner) case1 pc(s)
