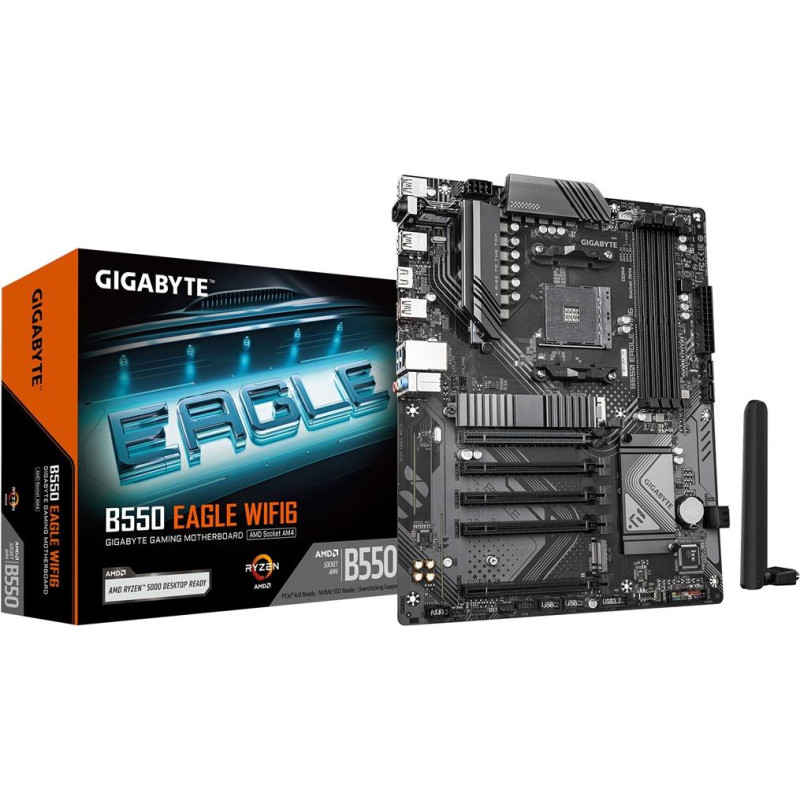

Gigabyte B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2

GIGABYTE

Gigabyte B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2

Out Of Stock
ID: 181283
Model B550 EAGLE WIFI6
Barcode 4719331868406
118.05€
(Ex Tax: 95.20€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM4
Compatible processor seriesAMD Ryzen 4000 Series
Processor socketSocket AM4
Processor manufacturerAMD
Parallel processing technology supportNot supported
HDCPYes
Maximum resolution4096 x 2160 pixels
DirectX version12.0
Audio output channels7.1 channels
PC health monitoringFan
Motherboard chipsetAMD B550
Product colourDark brown
Motherboard form factorATX
Power source typeATX
Motherboard chipset familyAMD
Audio chipRealtek ALC897
Windows operating systems supportedWindows 10 x64
Cooling typePassive
Supported memory clock speeds2400
Maximum internal memory128 GB
Unbuffered memoryYes
Maximum internal memory per slot32 GB
ECC сompatibilityECC & Non-ECC
Supported memory clock speed (max)3200 MHz
Memory channelsDual-channel
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Number of memory slots4
Height35 mm
Depth244 mm
Width305 mm
BluetoothYes
LAN controllerRealtek RTL8111H
Bluetooth version5.3
WLAN controller modelRealtek RTL8851BE
Ethernet LANYes
Wi-Fi standardsWi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ethernet interface typeGigabit Ethernet
Wi-FiYes
CPU fan connectorYes
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
Number of water pump connectors1
Front panel audio connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers5
Front panel connectorYes
Number of chassis fan connectors3
TPM connectorYes
EPS power connector (8-pin)Yes
RGB LED pin headerYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package weight1.48 kg
Package depth270 mm
Package height80 mm
Package width335 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Antenna includedYes
Batteries includedYes
Screws includedYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
Number of storage drives supported6
Number of HDDs supported4
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
WiFi-AP antenna jack2
Line-inYes
HDMI version2.1
Microphone inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
Number of M.2 (M) slots2
1st M.2 highest PCI Express generation4.0
PCI Express x1 (Gen 3.x) slots4
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation3.0
1st M.2 largest key size22110
PCI Express x16 (Gen 4.x) slots1
Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Weight1.25 kg
Products per shipping (inner) case1 pc(s)
