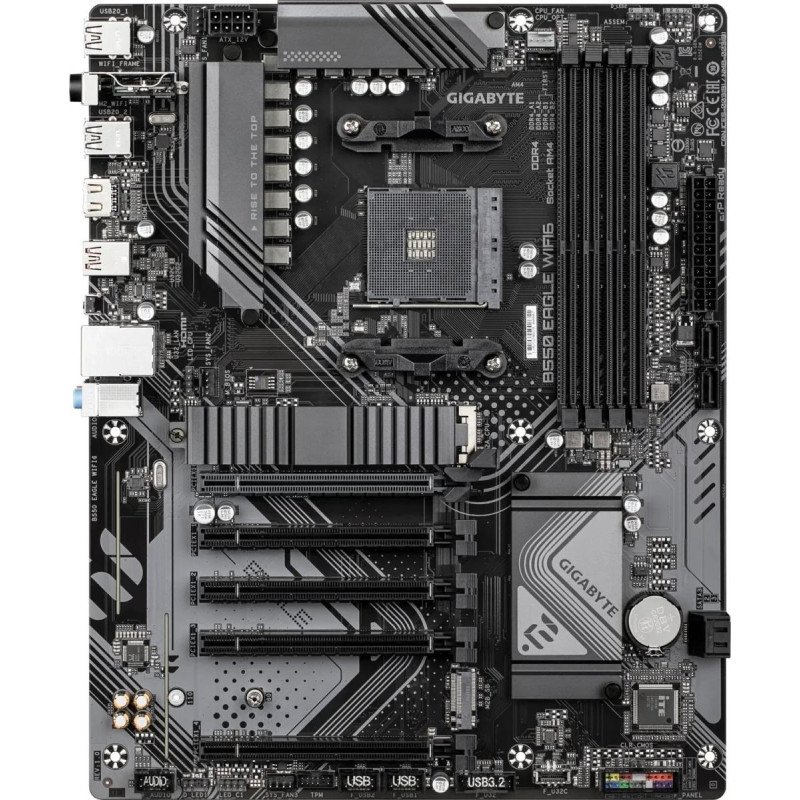

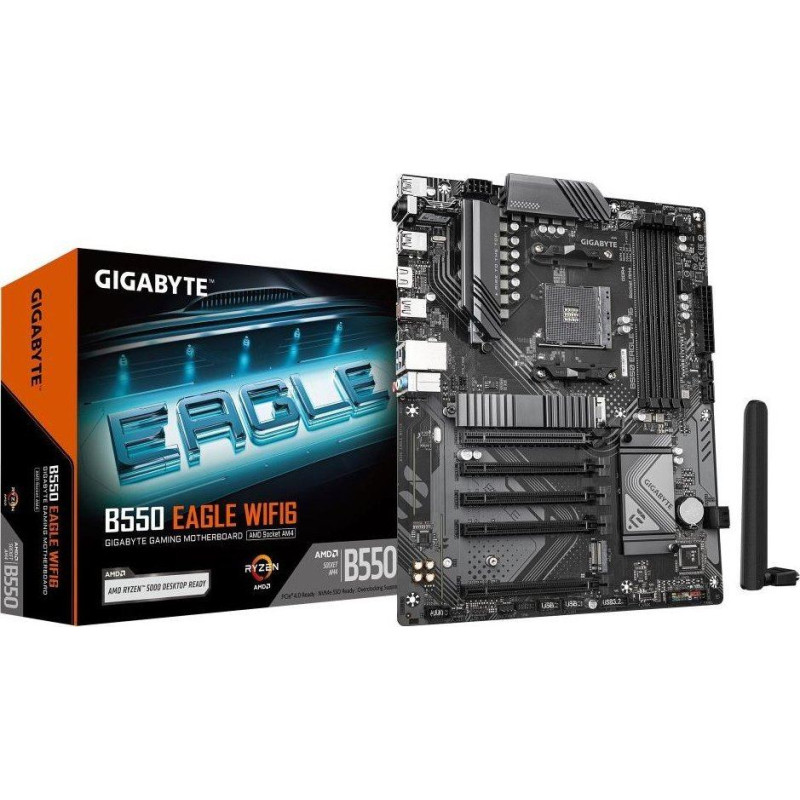

Gigabyte Motherboard B550 EAGLE WIFI6 AM5 4 DDR4

GIGABYTE

Gigabyte Motherboard B550 EAGLE WIFI6 AM5 4 DDR4

Delivery to the store in 5 to 7 business days.
ID: 117834
Model B550 EAGLE WIFI6
Barcode 4719331868406
119.11€
(Ex Tax: 96.06€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7B550A10
svītrkods: 4719331868406
Description
SKUKBGBAAA7B550A10
Barcode4719331868406
ModelB550 EAGLE WIFI6
CPU socketSocket AM4
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency3200 MHz
Memory bus frequency2400 MHz
Memory bus frequency2133 MHz
Memory bus frequency2933 MHz
Memory bus frequency2667 MHz
Max memory size128
Expansion slots1 x PCIe x 16
Expansion slots4 x PCIe 3.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
GraphicsIntegrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Graphics specifications may vary depending on CPU support.)Maximum shared memory of 16 GB
Sound cardRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface1 x 10/100/1000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ax
Network interfaceBluetooth
Network interfaceLAN: Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)Wireless Communication module: Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

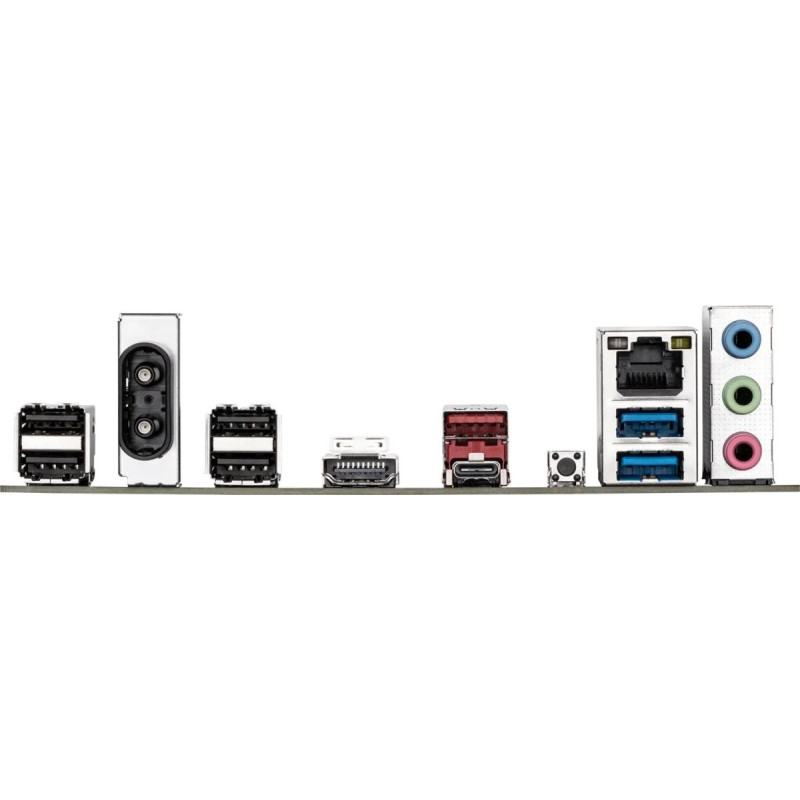

External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x RJ-45
External connectors1 x Line Out
External connectors1 x USB 3.2 Gen 1 Type-C
External connectors1 x MIC
External connectors2 x SMA
External connectors4 x USB 2.0
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x Q-Flash Plus button
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Front panel audio header
Onboard connectors2 x RGB LED Strip
Onboard connectors1 x CPU cooler LED strip/RGB LED strip header
Onboard connectors2 x Addressable LED
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x TPM header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x System panel header
Onboard connectors1 x 8pin 12V power
Onboard connectors4 x USB 2.0/1.1
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors3 x 4pin Chassis fan
Onboard connectors2 x M.2
Onboard connectors1 x 24pin ATX zasilanie
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
