Gigabyte B550I AORUS PRO AX AM4 2DDR4 HDMI/DP mITX

GIGABYTE

Gigabyte B550I AORUS PRO AX AM4 2DDR4 HDMI/DP mITX

Delivery to the store in 7-9 business days.
ID: 95085
Model B550I AORUS PRO AX
Barcode 4719331809508
148.52€
(Ex Tax: 119.77€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7B550M01
svītrkods: 4719331809508
Description
SKUKBGBAAA7B550M01
Barcode4719331809508
ModelB550I AORUS PRO AX
CPU socketSocket AM4
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Processor familyAMD Athlon
Processor familyAMD Ryzen 3
Processor familyNon-CPU
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550
Memory typeDDR4
Number of DDR4 slots2
Memory bus frequency3733 MHz
Memory bus frequency3200 MHz
Memory bus frequency3400 MHz
Memory bus frequency2933 MHz
Memory bus frequency3866 MHz
Memory bus frequency4000 MHz
Memory bus frequency4133 MHz
Memory bus frequency4266 MHz
Memory bus frequency4400 MHz
Memory bus frequency4600 MHz
Memory bus frequency4800 MHz
Memory bus frequency3466 MHz
Memory bus frequency3600 MHz
Memory bus frequency2667 MHz
Memory bus frequency2400 MHz
Memory bus frequency2133 MHz
Memory bus frequency5100 MHz
Memory bus frequency5200 MHz
Max memory size64
Expansion slots1 x PCIe x 16
Expansion slots2 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces1 x PCI Express x16 slot, integrated in the CPU AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
Graphics1 x DisplayPort, supporting a maximum resolution of 5120x2880 at 60 Hz * Support for DisplayPort 1.4, HDCP 2.3 and HDR versions. 2 HDMI ports supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1, HDCP 2.3 and HDR versions. Support for up to 3 displays simultaneously Maximum shared memory 16 GB
Sound cardRealtek ALC1220-VB codec * The rear panel line out jack supports DSD audio. High resolution audio support 2/4/5.1/7.1 - channel sound card (to configure 7.1 audio channels, use the front panel audio connector and set the quality in the sound manager)
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Intel Wi-Fi 6 AX200. WIFI a, b, g, n, ac with wave 2, ax functions, dual-band 2.4/5 GHz support BLUETOOTH 5 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps * Actual data transfer rate may vary depending on environment and hardware.
USB ports at back panel6
USB ports on motherboard4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

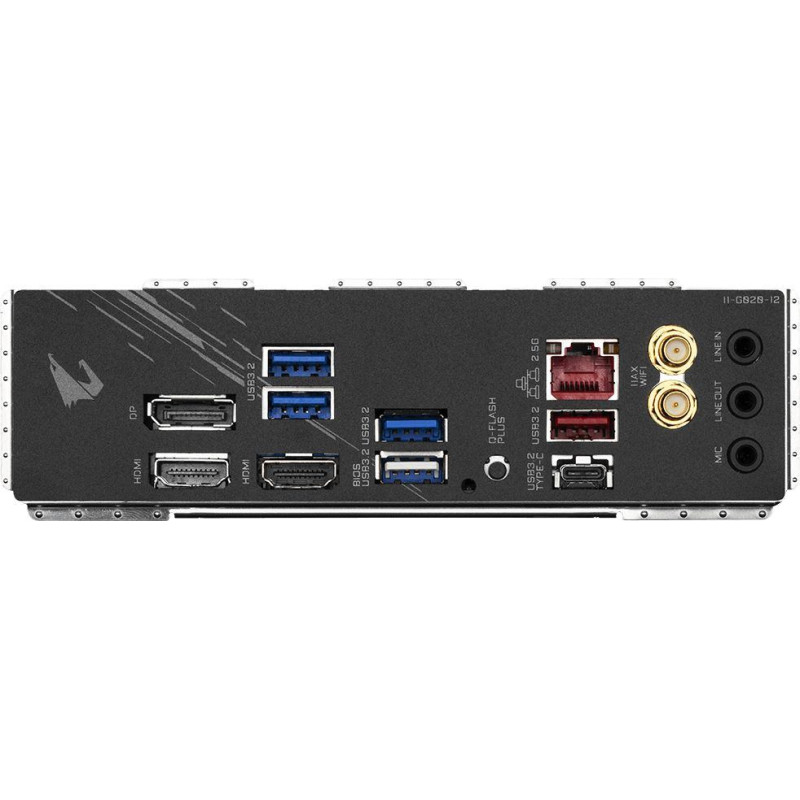

External connectors1 x RJ-45
External connectors4 x USB 3.0
External connectors1 x USB 3.1
External connectors1 x USB 3.1 Type-C
External connectors2 x SMA
External connectors1 x Line Out
External connectors1 x MIC
External connectors2 x HDMI
External connectors1 x Line In
External connectors1 x DisplayPort
External connectors1 x Q-Flash Plus button
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x TPM header
Onboard connectors1 x Clear CMOS jumper
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormini ITX
Dimensions17 x 17 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek 8125 Gaming LAN Bandwidth Control Utility
Other informationVoltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
DesignationCE+WEEE
