Home Computers and equipment Computer components Motherboard Gigabyte B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1

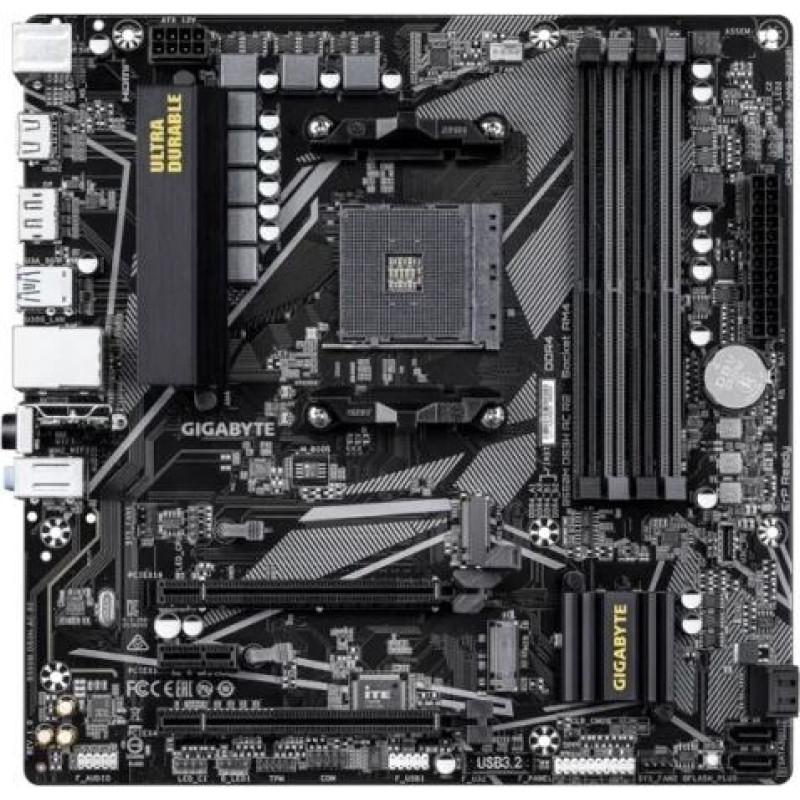

Gigabyte B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1

GIGABYTE

Gigabyte B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1

Delivery to the store in 5 to 7 business days.
ID: 163674
Model B550M DS3H AC R2
Barcode 4719331869908
99.53€
(Ex Tax: 80.27€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7B550U04
svītrkods: 4719331869908
Description
Warranty period3 year(s)
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 5000 Series
Processor socketSocket AM4
Supported processor socketsSocket AM4
DirectX version12.0
On-board graphics cardNo
HDCPYes
Maximum resolution5120 x 2880 pixels
Parallel processing technology supportNot supported
Product colourDark brown
Audio output channels7.1 channels
PC health monitoringVoltage
Motherboard chipsetAMD B550
Audio chipRealtek ALC1220-VB
Motherboard chipset familyAMD
Power source typeATX
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64
Cooling typePassive
Supported memory clock speed (max)4733 MHz
Maximum internal memory per slot32 GB
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds4600
Maximum internal memory128 GB
Number of memory slots4
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Unbuffered memoryYes
Width244 mm
Depth244 mm
Height35 mm
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN controller modelRealtek RTL8821CE
BluetoothYes
LAN controllerRealtek RTL8111H
Bluetooth version5.0
Wi-FiYes
Wi-Fi standards802.11g
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Number of RGB LED pin headers5
Number of EPS power connectors (8-pin)1
Number of CPU fan connectors1
RGB LED pin headerYes
USB 2.0 connectors1
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Serial port headers1
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
Number of chassis fan connectors2
Front panel connectorYes
Desktop Management Interface (DMI) version2.7
BIOS typeUEFI AMI
Clear CMOS jumperYes
Package weight1.07 kg
Package width270 mm
Package depth268 mm
Package height68 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Antenna includedYes
Batteries includedYes
Screws includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
DisplayPorts quantity1
WiFi-AP antenna jack2
HDMI ports quantity1
HDMI version2.1
Line-inYes
Microphone inYes
PS/2 ports quantity1
Headphone outputs1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
DisplayPort version1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
PCI Express x16 (Gen 4.x) slots1
2nd M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation3.0
PCI Express x16 (Gen 3.x) slots1
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots2
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Number of battery cells1
Battery weight3 g
Weight980 g
Products per shipping (inner) case1 pc(s)
