Home Computers and equipment Computer components Motherboard Gigabyte B650E EAGLE AX AM5 4DDR5 HDMI/DP ATX
Gigabyte B650E EAGLE AX AM5 4DDR5 HDMI/DP ATX

GIGABYTE

Gigabyte B650E EAGLE AX AM5 4DDR5 HDMI/DP ATX

Delivery to the store in 5 to 7 business days.
ID: 168228
Model B650 EAGLE AX
Barcode 4719331860158
129.46€
(Ex Tax: 104.40€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8B650A05
svītrkods: 4719331860158
Description
SKUKBGBAAA8B650A05
Barcode4719331860158
ModelB650 EAGLE AX
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B650
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency7200 MHz
Memory bus frequency7000 MHz
Memory bus frequency6800 MHz
Memory bus frequency6600 MHz
Memory bus frequency7600 MHz
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency4400 MHz
Max memory size192
Expansion slots3 x PCIe x 16
Expansion slots2 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:- AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:- AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDsChipset:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
GraphicsIntegrated graphics processor: - 1 x DisplayPort supporting a maximum resolution of 3840x2160 at 144 Hz * Support for DisplayPort version 1.4. - 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on processor support.)
Sound cardRealtek audio CODEC High quality sound 2/4/5.1/7.1-channel * You can change the functionality of the audio jack using audio software. Down configure 7.1 channel audio, go to audio software for audio settings.
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel9
USB ports on motherboard11
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

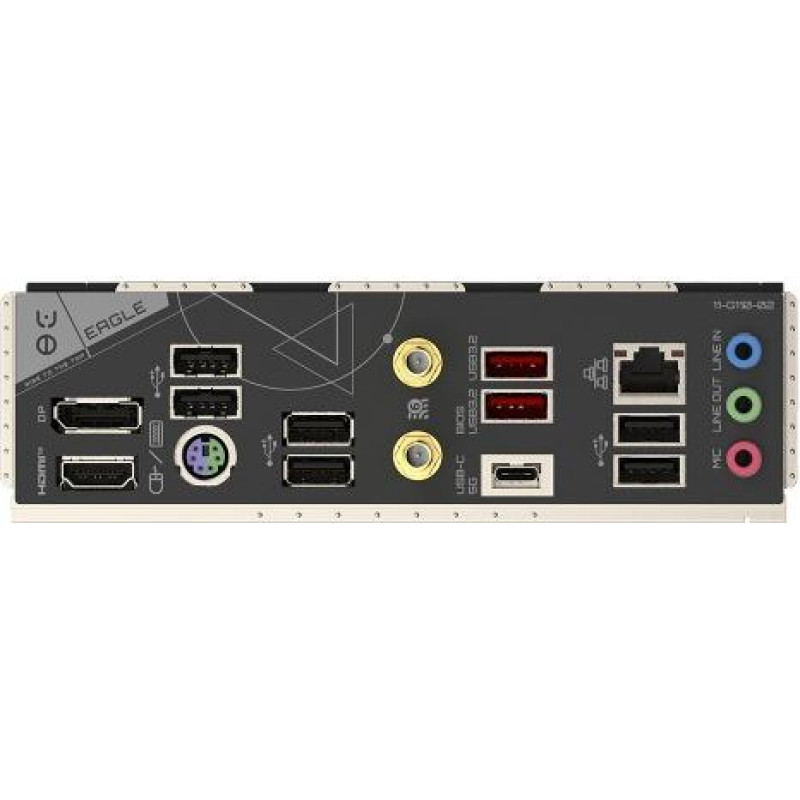

External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors6 x USB 2.0
External connectors2 x USB 3.1
External connectors1 x USB 3.1 Type-C
External connectors2 x SMA
External connectors1 x DisplayPort
External connectors1 x PS/2 Keyboard/MouseCombo
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors3 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
Other informationGIGABYTE Control Center (GCC) Support * Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus
DesignationCE+WEEE
