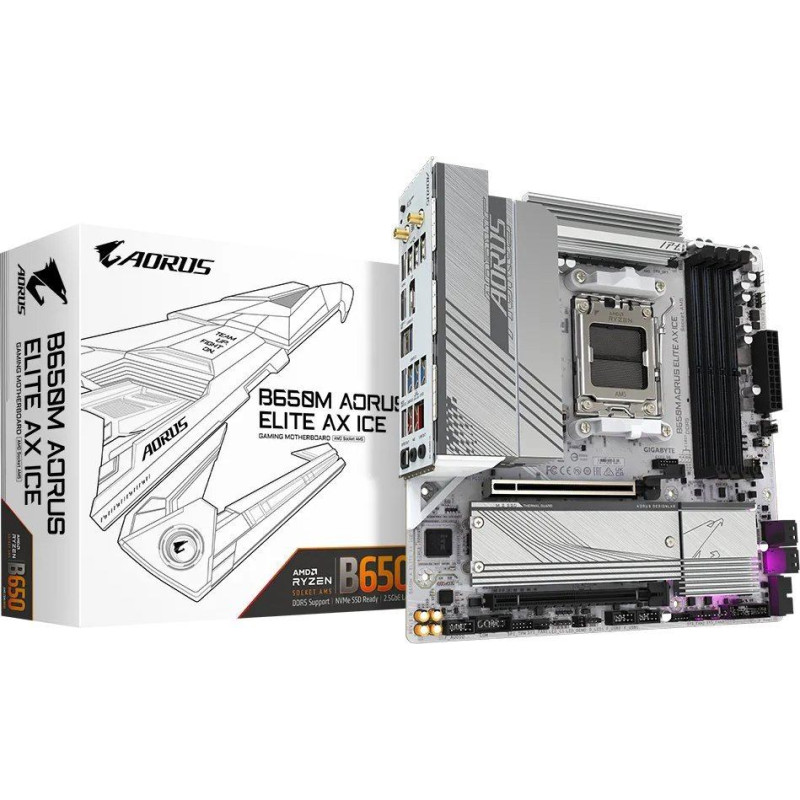

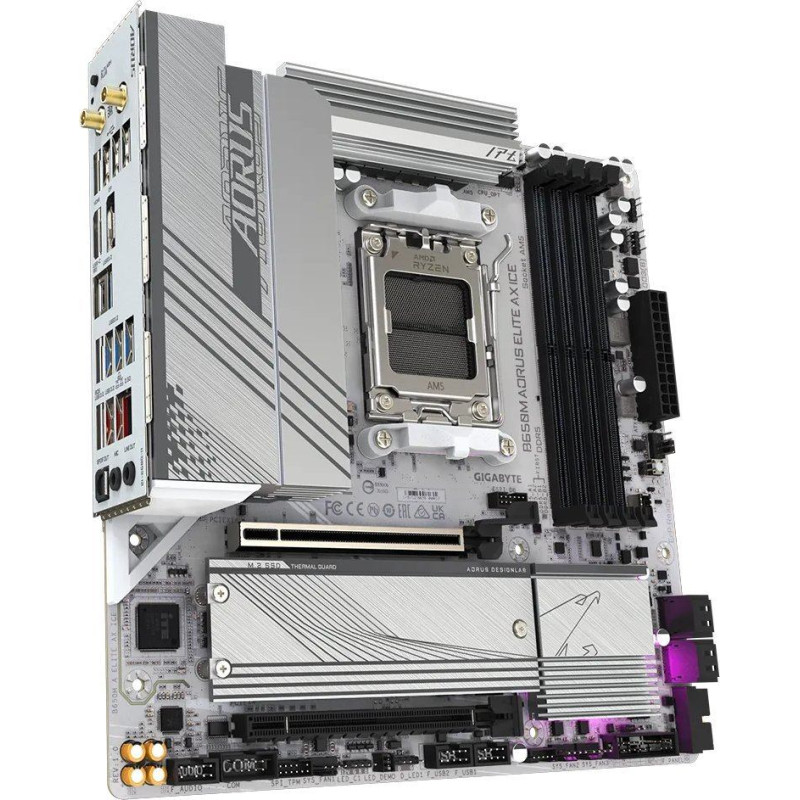

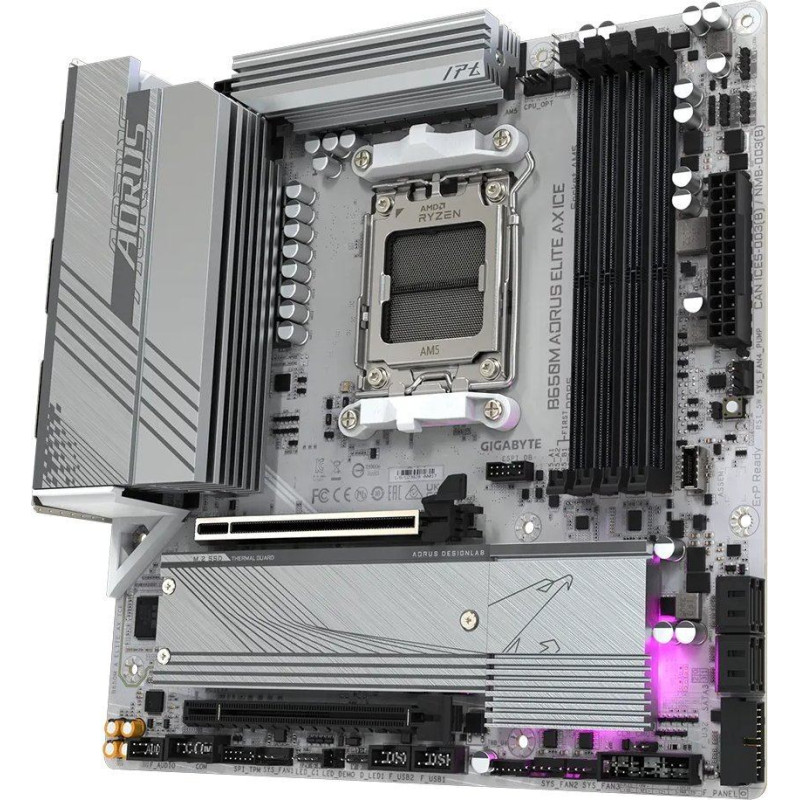

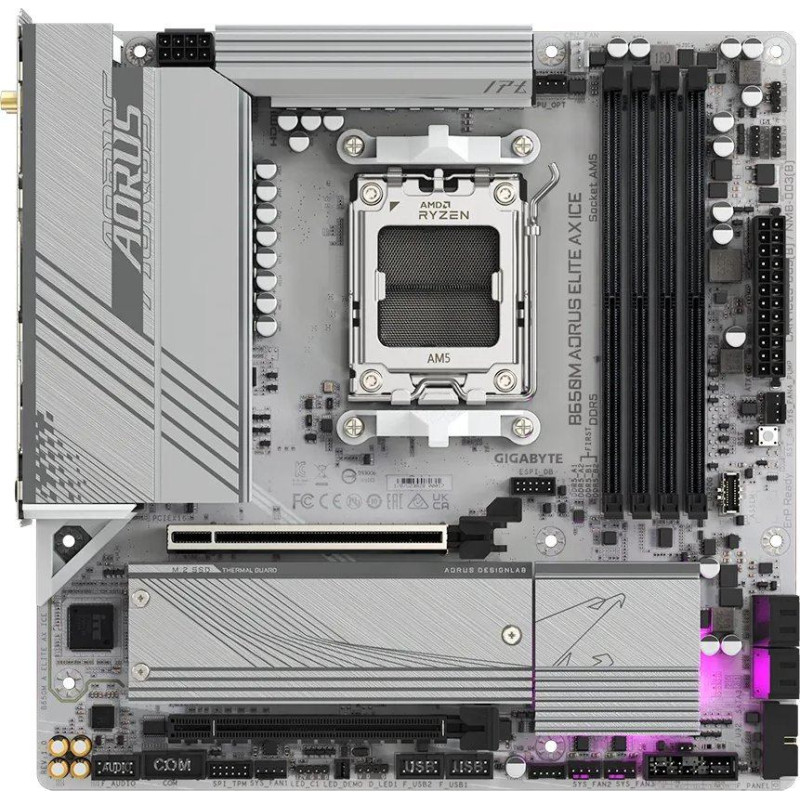

Gigabyte Motherboard B650M A ELITE AX ICE HDMI/DP M2 m.ATX

GIGABYTE

Gigabyte Motherboard B650M A ELITE AX ICE HDMI/DP M2 m.ATX

Delivery to the store in 5 to 7 business days.
ID: 87993
Model B650M A ELITE AX ICE
Barcode 4719331859336
172.48€
(Ex Tax: 139.10€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8B650U07
svītrkods: 4719331859336
Description
SKUKBGBAAA8B650U07
Barcode4719331859336
ModelB650M A ELITE AX ICE
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B650
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6800 MHz
Memory bus frequency4400 MHz
Memory bus frequency7200 MHz
Memory bus frequency8000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6666 MHz
Memory bus frequency7000 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency6600 MHz
Memory bus frequency4800 MHz
Memory bus frequency6400 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Memory bus frequency6000 MHz
Max memory size256
Expansion slots2 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
GraphicsIntegrated Graphics Processor with AMD Radeon Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)
Sound cardKodek audio Realtek High Definition Audio 2/4/5.1/7.1-kanałowy Obsługa wyjścia S/PDIF
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceWi-Fi 802.11a/b/g/n/ax
Network interfaceLAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Intel Wi-Fi 6E AX210 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
USB ports at back panel12
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x RJ-45
External connectors1 x Q-Flash Plus button
External connectors5 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x S/PDIF
External connectors1 x USB 3.2 Gen 2x2 Type-C
External connectors1 x DisplayPort
External connectors2 x SMA
External connectors4 x USB 2.0
External connectors1 x HDMI
External connectors1 x Line Out
External connectors1 x MIC
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x Addressable LED
Onboard connectors1 x CPU cooler LED strip/RGB LED strip header
Onboard connectors1 x Reset button
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Reset jumper
Onboard connectors1 x THB_U4 add-in card connector
Onboard connectors1 x TPM header
Onboard connectors1 x Serial port header
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors2 x RGB LED Strip
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
