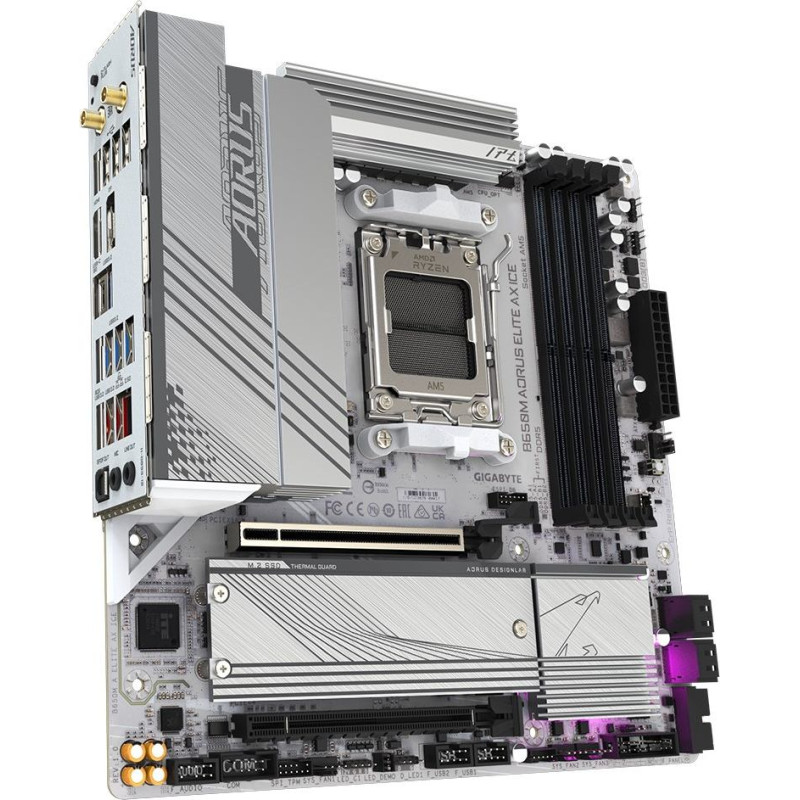

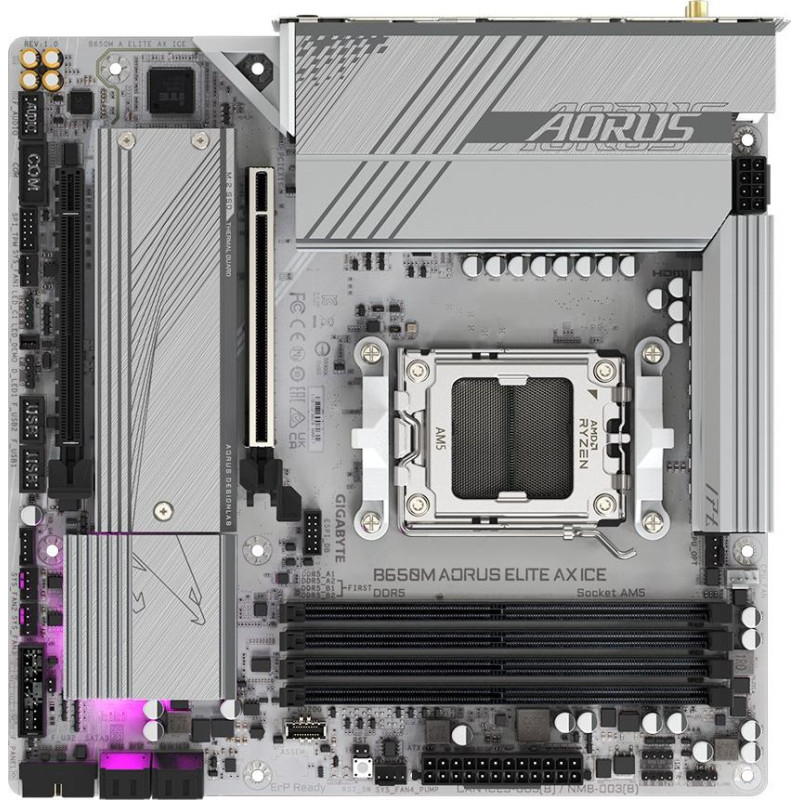

Home Computers and equipment Computer components Motherboard Gigabyte B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
Gigabyte B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2

GIGABYTE

Gigabyte B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2

Delivery to the store takes 3 - 7 business days.
ID: 223064
Model B650M AORUS ELITE AX ICE
Barcode 4719331859336
179.01€
(Ex Tax: 144.36€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Processor socketSocket AM5
DirectX version12.0
HDCPYes
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
Motherboard chipsetAMD B650
Power source typeATX
PC health monitoringTemperature
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Product colourWhite
Audio chipRealtek ALC897
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Supported memory clock speeds8000 MHz
Maximum internal memory256 GB
Memory slots typeDIMM
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots4
ECC сompatibilityNon-ECC
Maximum internal memory per slot64 GB
Supported memory clock speed (max)8000 MHz
Height35 mm
Depth244 mm
Width244 mm
LAN controllerRealtek RTL8125
BluetoothYes
Wi-Fi standards802.11g
Bluetooth version5.3
WLAN controller modelRealtek RTL8852CE
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
Wi-FiYes
Ethernet interface type2.5 Gigabit Ethernet
Serial port headers1
Front panel audio connectorYes
12V power connectorYes
Number of chassis fan connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2
CPU fan connectorYes
TPM connectorYes
RGB LED pin headerYes
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
USB 3.2 Gen 2x2 connectors1
Number of CPU fan connectors2
Number of RGB LED pin headers5
Number of water pump connectors2
Front panel connectorYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package weight1.89 kg
Package height68 mm
Package width270 mm
Package depth268 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Screws includedYes
Antenna includedYes
RAID levels10
Supported storage drive typesHDD & SSD
Number of HDDs supported4
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported6
S/PDIF out portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Digital audio optical out1
Ethernet LAN (RJ-45) ports1
DisplayPort version1.4
HDMI version2.1
Headphone outputs1
USB 2.0 ports quantity4
HDMI ports quantity1
DisplayPorts quantity1
Line-inYes
WiFi-AP antenna jack2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
PCI Express x16 (Gen 4.x) slots2
Number of M.2 (M) slots2
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size25110
2nd M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
Battery weight3 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Lithium weight per battery0.07 g
Number of battery cells1
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsDispose of in accordance with local regulations for electronic waste.
