Home Computers and equipment Computer components Motherboard Gigabyte B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

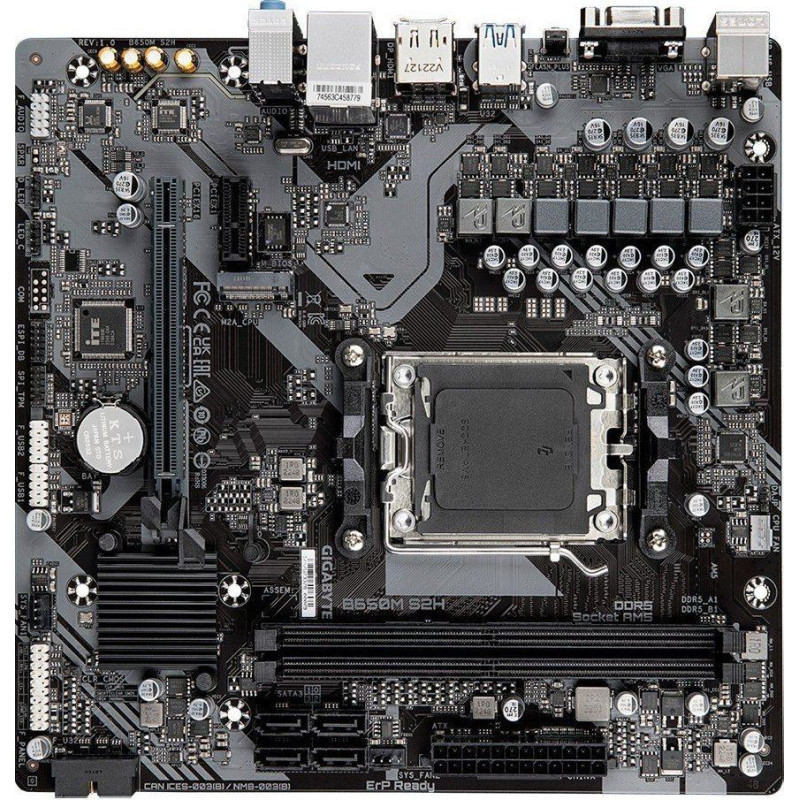

Gigabyte B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE

Gigabyte B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Delivery to the store takes 3 - 7 business days.
ID: 87984
Model B650M S2H
Barcode 4719331856298
95.92€
(Ex Tax: 77.36€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series
Supported processor socketsSocket AM5
Processor manufacturerAMD
DirectX version12.0
HDCPYes
Maximum resolution4096 x 2160 pixels
Parallel processing technology supportNot supported
Audio output channels7.1 channels
Motherboard form factormicro ATX
PC health monitoringFan
Motherboard chipsetAMD B650
Windows operating systems supportedWindows 11 x64
Power source typeATX
Product colourBronze
Cooling typePassive
Motherboard chipset familyAMD
Audio chipRealtek ALC897
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots2
Maximum internal memory per slot64 GB
ECC сompatibilityNon-ECC
Supported memory clock speed (max)6400 MHz
Supported memory clock speeds6400
Unbuffered memoryYes
Maximum internal memory128 GB
Memory channelsDual-channel
Height35 mm
Depth225 mm
Width230 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wi-FiNo
RGB LED pin headerYes
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
12V power connectorYes
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2
Front panel audio connectorYes
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of SATA III connectors4
Number of RGB LED pin headers2
CPU fan connectorYes
TPM connectorYes
Front panel connectorYes
Desktop Management Interface (DMI) version2.7
BIOS typeUEFI AMI
Clear CMOS jumperYes
Package weight917 g
Package height54 mm
Package depth265 mm
Package width265 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Batteries includedYes
Number of HDDs supported4
RAID supportYes
RAID levels1
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Number of storage drives supported5
VGA (D-Sub) ports quantity1
Headphone outputs1
Line-inYes
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DisplayPort version1.4
DisplayPorts quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
Microphone inYes
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
1st M.2 largest key size2580
PCI Express x1 (Gen 3.x) slots1
1st M.2 highest PCI Express generation4.0
Lithium weight per battery0.07 g
Number of battery cells1
Battery weight3 g
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
