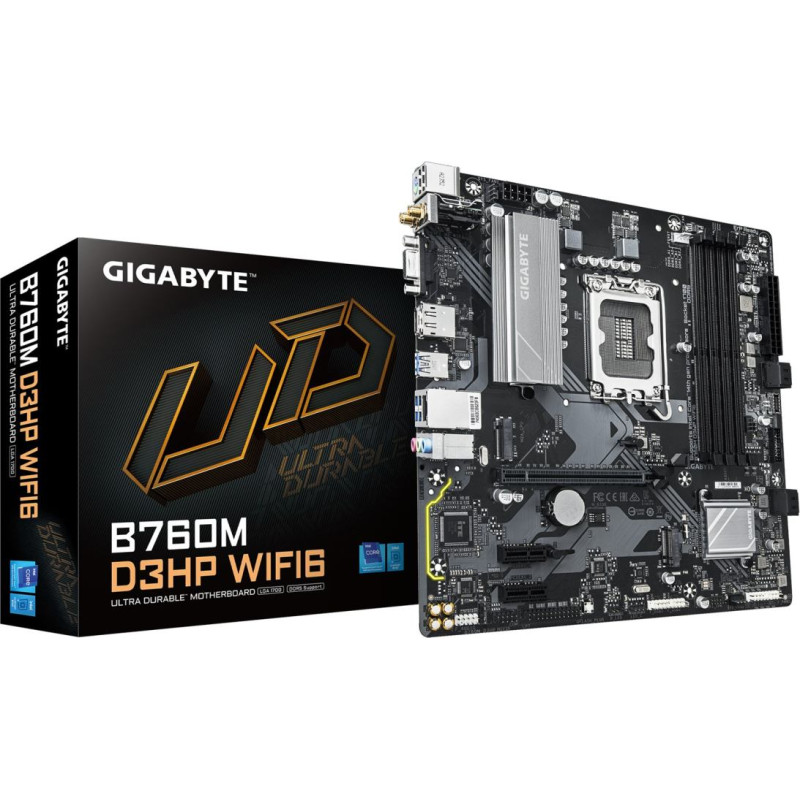

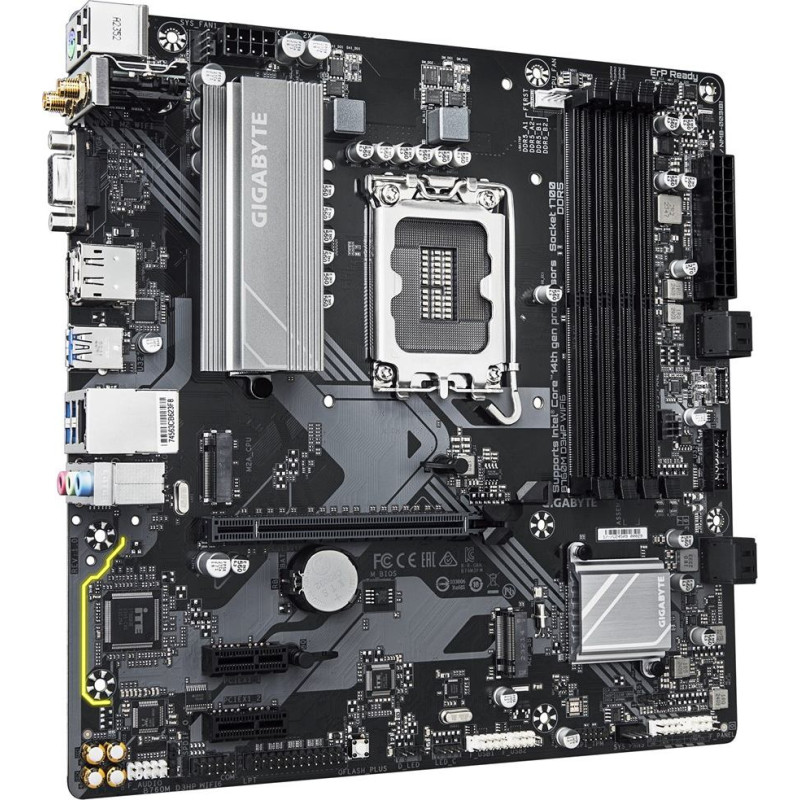

Home Computers and equipment Computer components Motherboard Gigabyte B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1
Gigabyte B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1

GIGABYTE

Gigabyte B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1

Delivery to the store in 5 to 7 business days.
ID: 163114
Model B760M D3HP WIFI6
Barcode 4719331867638
103.21€
(Ex Tax: 83.23€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Compatible processor seriesIntel® Pentium® Gold
Processor manufacturerIntel
Processor socketLGA 1700
Supported processor socketsLGA 1700
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
HDCPYes
DirectX version12.0
Audio output channels7.1 channels
Power source typeATX
Motherboard form factormicro ATX
Motherboard chipsetIntel B760 Express
PC health monitoringTemperature
Product colourBlack
Audio chipRealtek ALC897
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Cooling typePassive
ECC сompatibilityECC & Non-ECC
Maximum internal memory per slot48 GB
Supported memory clock speeds4800
Unbuffered memoryYes
Maximum internal memory192 GB
Supported memory clock speed (max)5600 MHz
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots4
Width244 mm
Height35 mm
Depth244 mm
BluetoothYes
LAN controllerRealtek RTL8111H
Bluetooth version5.3
WLAN controller modelRealtek RTL8851BE
Wi-Fi standards802.11ac
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Number of RGB LED pin headers2
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
Front panel audio connectorYes
S/PDIF out connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
RGB LED pin headerYes
Parallel connectorYes
ATX Power connector (24-pin)Yes
12V power connectorYes
Front panel connectorYes
TPM connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
CPU fan connectorYes
Number of chassis fan connectors3
Desktop Management Interface (DMI) version2.7
BIOS typeUEFI AMI
Clear CMOS jumperYes
Package depth265 mm
Package weight1.2 kg
Package width265 mm
Package height54 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Antenna includedYes
Screws includedYes
Batteries includedYes
RAID supportYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Number of HDDs supported4
RAID levels1
Number of storage drives supported3
DisplayPorts quantity1
DisplayPort version1.2
Ethernet LAN (RJ-45) ports1
Line-inYes
WiFi-AP antenna jack2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
Headphone outputs1
PS/2 ports quantity1
HDMI version2.1
Microphone inYes
USB 2.0 ports quantity2
VGA (D-Sub) ports quantity1
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
2nd M.2 largest key size2280
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
Number of battery cells1
Battery typeCR2032
Battery weight3 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Weight1.11 kg
Products per shipping (inner) case1 pc(s)
