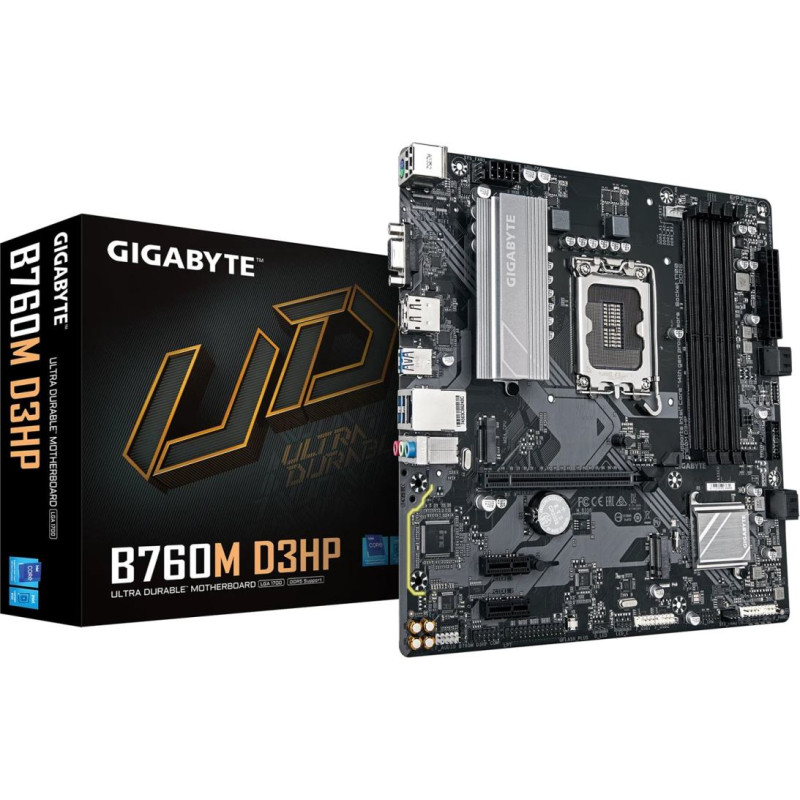

Home Computers and equipment Computer components Motherboard Gigabyte B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
Gigabyte B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE

Gigabyte B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Delivery to the store takes 3 - 7 business days.
ID: 143081
Model B760M D3HP
Barcode 4719331864347
92.40€
(Ex Tax: 74.51€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsLGA 1700
Processor socketLGA 1700
Compatible processor seriesIntel Core i5 13th Gen
Processor manufacturerIntel
DirectX version12.0
Maximum resolution4096 x 2304 pixels
HDCPYes
Parallel processing technology supportNot supported
Motherboard chipsetIntel B760 Express
Windows operating systems supportedWindows 10
Audio output channels7.1 channels
Power source typeATX
PC health monitoringWater cooling
Motherboard chipset familyIntel
Product colourBronze
Motherboard form factormicro ATX
Supported memory clock speeds4400 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
ECC сompatibilityECC & Non-ECC
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)5600 MHz
Maximum internal memory per slot64 GB
Width244 mm
Height35 mm
Depth244 mm
LAN controllerRealtek RTL8111H
Wi-FiNo
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Parallel connectorYes
S/PDIF out connectorYes
Number of chassis fan connectors3
Number of SATA III connectors4
EPS power connector (8-pin)Yes
Front panel audio connectorYes
USB 2.0 connectors2
TPM connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
ATX Power connector (24-pin)Yes
Number of RGB LED pin headers2
Serial port headers1
CPU fan connectorYes
Front panel connectorYes
RGB LED pin headerYes
Number of CPU fan connectors1
12V power connectorYes
Number of EPS power connectors (8-pin)1
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Package weight1.21 kg
Package width270 mm
Package height68 mm
Package depth268 mm
Bundled softwareNorton Internet Security
Screws includedYes
Batteries includedYes
RAID levels1
RAID supportYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6

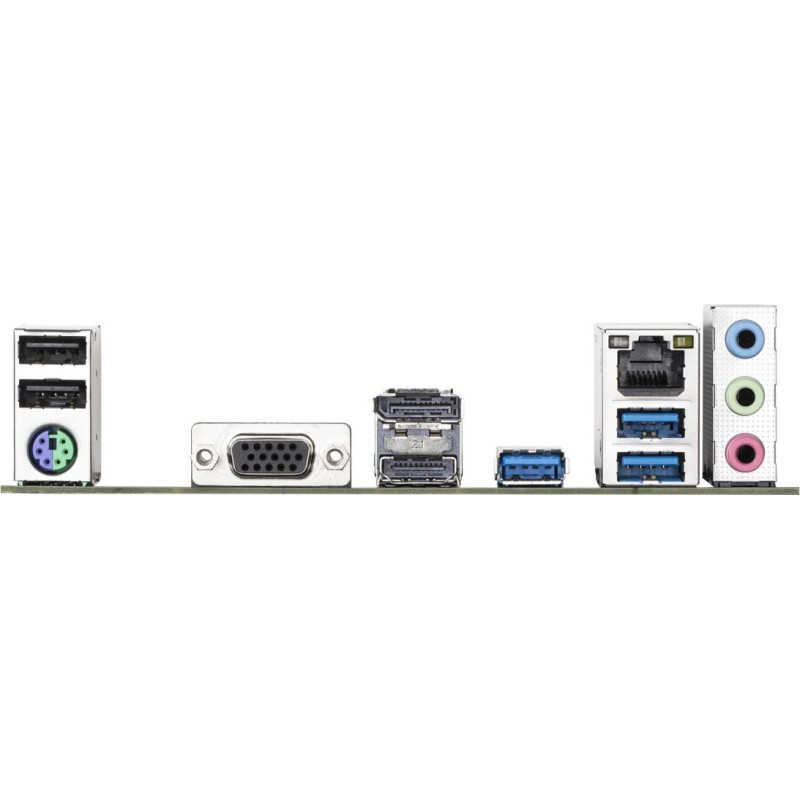

DisplayPort version1.2
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Line-inYes
Microphone inYes
HDMI version2.1
VGA (D-Sub) ports quantity1
PS/2 ports quantity1
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
PCI Express x1 (Gen 3.x) slots2
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots1
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Number of battery cells1
Battery weight3 g
Lithium weight per battery0.07 g
Weight720 g
Products per shipping (inner) case1 pc(s)
