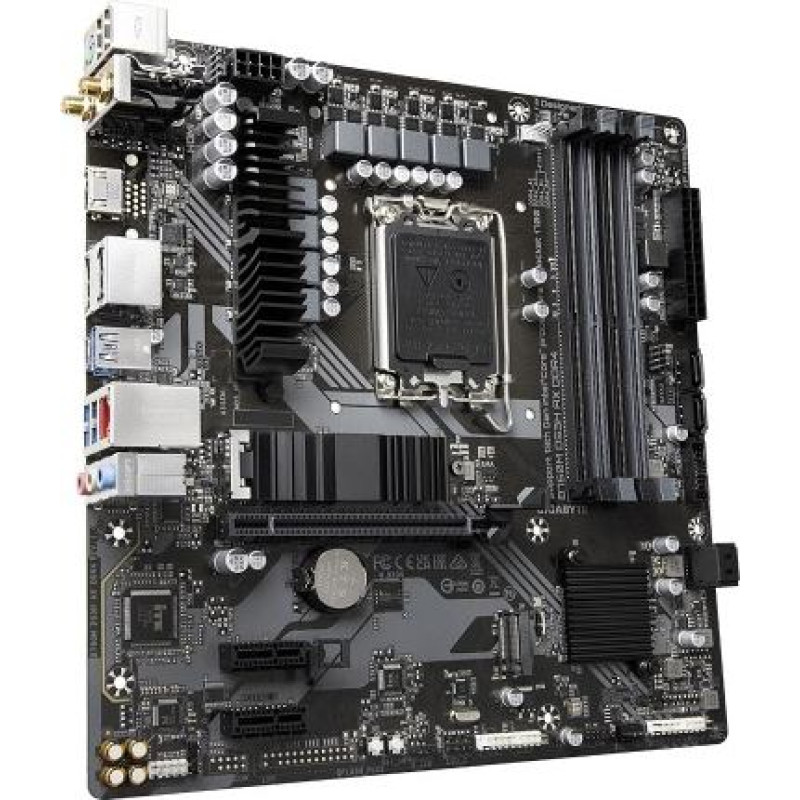

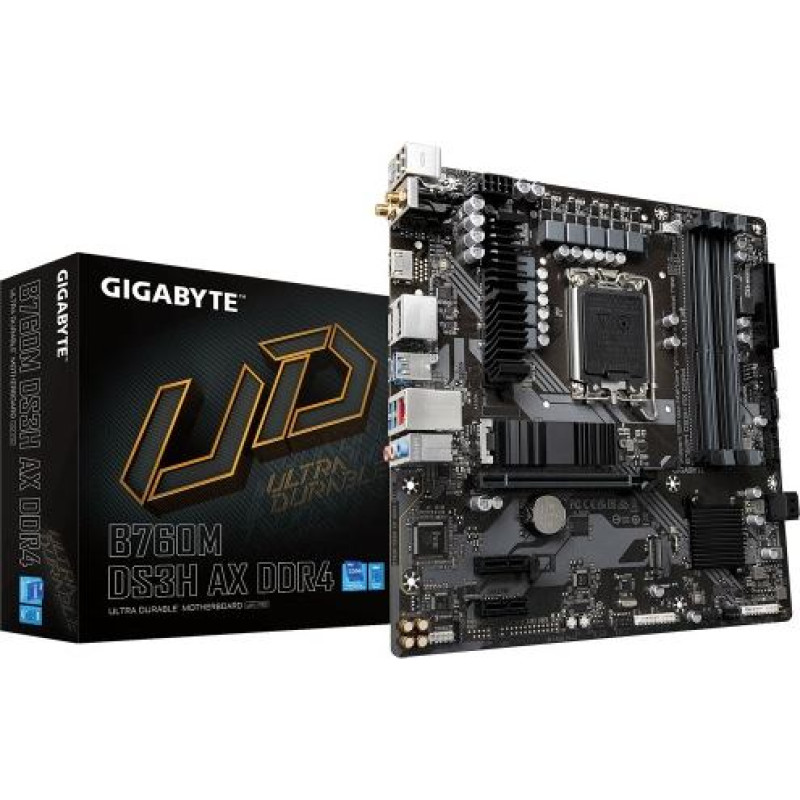

Gigabyte B760M DS3H AX DDR4 s1700 4DDR4 HDMI mATX

GIGABYTE

Gigabyte B760M DS3H AX DDR4 s1700 4DDR4 HDMI mATX

Out Of Stock
ID: 173325
Model B760M DS3H AX DDR4
Barcode 4719331850869
110.98€
(Ex Tax: 89.50€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIEB760U05
svītrkods: 4719331850869
Description
SKUKBGBAIIEB760U05
Barcode4719331850869
ModelB760M DS3H AX DDR4
CPU socketLGA1700
Processor familyIntel Celeron
Processor familyIntel Core
Processor familyIntel Pentium Gold
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760 Express Chipset
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency4800 MHz
Memory bus frequency4700 MHz
Memory bus frequency4500 MHz
Memory bus frequency4600 MHz
Memory bus frequency4400 MHz
Memory bus frequency4300 MHz
Memory bus frequency4266 MHz
Memory bus frequency4133 MHz
Memory bus frequency4000 MHz
Memory bus frequency3866 MHz
Memory bus frequency3800 MHz
Memory bus frequency3733 MHz
Memory bus frequency3300 MHz
Memory bus frequency3333 MHz
Memory bus frequency3666 MHz
Memory bus frequency3600 MHz
Memory bus frequency3400 MHz
Memory bus frequency3466 MHz
Memory bus frequency3000 MHz
Memory bus frequency3200 MHz
Memory bus frequency2933 MHz
Memory bus frequency2666 MHz
Memory bus frequency2400 MHz
Memory bus frequency2133 MHz
Memory bus frequency4933 MHz
Memory bus frequency5000 MHz
Memory bus frequency5133 MHz
Memory bus frequency5333 MHz
Max memory size128
Expansion slots2 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 CPU1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
GraphicsIntegrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.0 and HDCP 2.3 versions. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort version 1.2. (Graphics specifications may vary depending on processor support.) Support maximum triple display at the same time
Sound cardRealtek audio codec High resolution audio support Number of audio channels 2/4/5.1/7.1 * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound. Support for S/PDIF output
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate Intel Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Line Out
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors2 x DisplayPort
External connectors2 x USB 2.0
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x HDMI
External connectors1 x Line In
External connectors3 x USB 3.0
External connectors1 x USB 3.1 Type-C
External connectors2 x SMA
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x TPM header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Reset button
Onboard connectors1 x Q-Flash Plus button
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 x 17.4cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
Other informationVoltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
DesignationCE+WEEE
