Home Computers and equipment Computer components Motherboard Gigabyte B850 EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

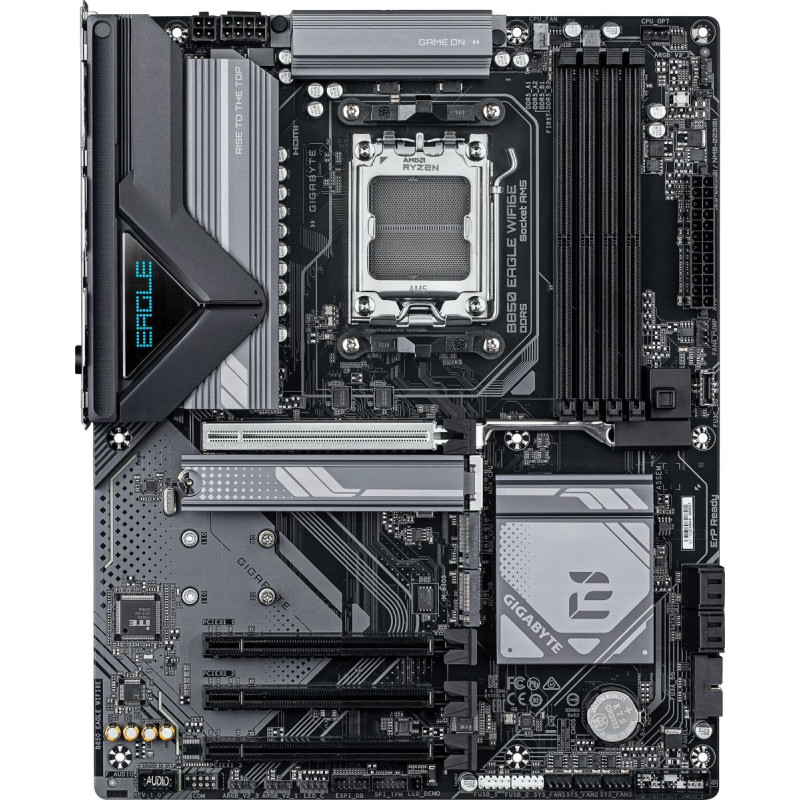

Gigabyte B850 EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

GIGABYTE

Gigabyte B850 EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

Delivery to the store in 7-9 business days.
ID: 87988
Model B850 EAGLE WIFI6E
Barcode 4719331866587
156.36€
(Ex Tax: 126.10€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
Processor socketSocket AM5
Parallel processing technology supportNot supported
DirectX version12.0
Maximum resolution4096 x 2160 pixels
HDCPYes
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
PC health monitoringFan
Motherboard form factorATX
Power source typeATX
Product colourBronze
Motherboard chipsetAMD B850
Motherboard chipset familyAMD
Number of memory slots4
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Supported memory clock speed (max)8200 MHz
ECC сompatibilityNon-ECC
Maximum internal memory per slot64 GB
Supported memory clock speeds5600
Maximum internal memory256 GB
Unbuffered memoryYes
Depth244 mm
Height35 mm
Width305 mm
Bluetooth version5.3
Ethernet LANYes
Wi-FiYes
WLAN controller modelRealtek RTL8111H
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet interface typeGigabit Ethernet
Wi-Fi standardsWi-Fi 5 (802.11ac)
BluetoothYes
Number of chassis fan connectors3
Peripheral (Molex) power connectors (4-pin)1
Total number of SATA connectors4
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
CPU fan connectorYes
Front panel audio connectorYes
Serial port headers1
Front panel connectorYes
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
Number of CPU fan connectors2
Number of water pump connectors2
Number of RGB LED pin headers4
Number of EPS power connectors (8-pin)1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
Number of SATA III connectors4
Clear CMOS jumperYes
BIOS typeUEFI AMI
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
Package depth270 mm
Package height80 mm
Package width335 mm
Package weight1.93 kg
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Batteries includedYes
Antenna includedYes
RAID levels1
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI version2.1
Headphone outputs1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
WiFi-AP antenna jack2
Microphone inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
DisplayPort version2.1
DisplayPorts quantity1
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size25110
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 5.x) slots1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Number of battery cells1
Lithium weight per battery0.07 g
Weight1.68 kg
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsAvoid contact with liquids to prevent electronic damage.
