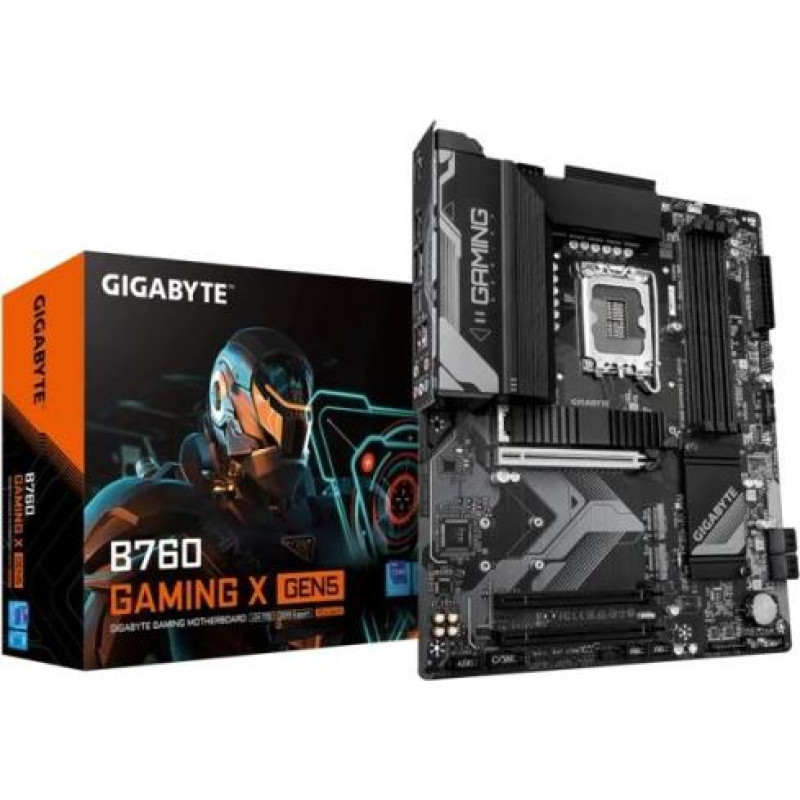

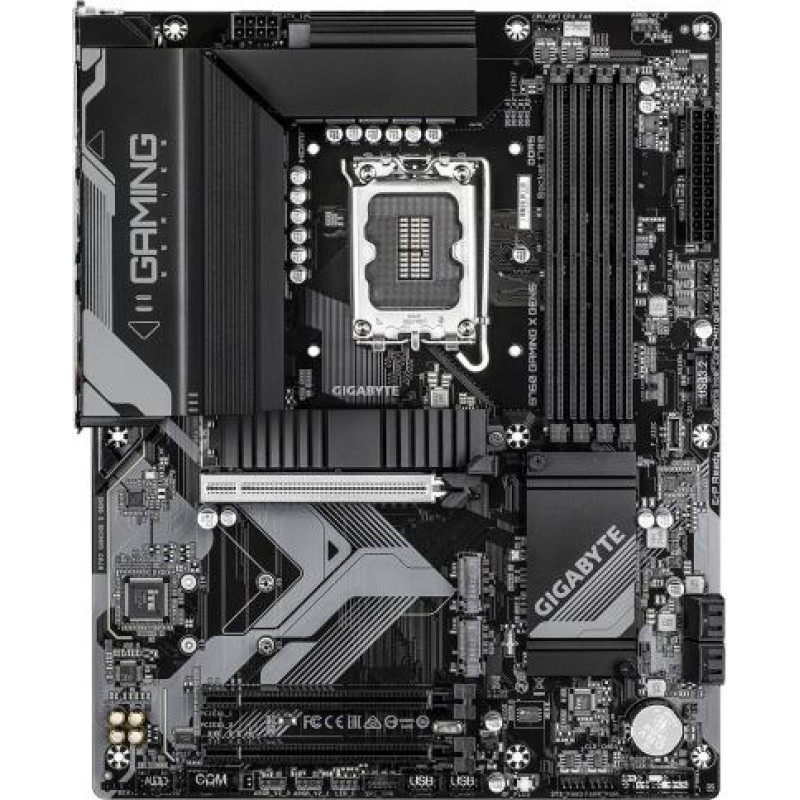

Gigabyte Motherboard B760 GAMING X GEN5 s170 0 4DDR5 DP/HDMI ATX

GIGABYTE

Gigabyte Motherboard B760 GAMING X GEN5 s170 0 4DDR5 DP/HDMI ATX

Delivery to the store in 5 to 7 business days.
ID: 163797
Model B760 GAMING X GEN5
Barcode 4719331872120
110.65€
(Ex Tax: 89.23€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIEB760A11
svītrkods: 4719331872120
Description
SKUKBGBAIIEB760A11
Barcode4719331872120
ModelB760 Gaming X
CPU socketLGA1700
Processor familyIntel Pentium
Processor familyIntel Core
Processor familyIntel Celeron
Integrated CPUYes
Chipset manufacturerIntel
Chipset typeIntel B760 Express Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency133 MHz
Memory bus frequency4400 MHz
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Max memory size256
Expansion slots3 x PCIe 4.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 mode (PCIEX16) Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and operating at x1 mode (PCIEX1_1, PCIEX1_2)
GraphicsIntegrated Graphics Processor: Intel HD Graphics support 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 at 60 Hz Supports DisplayPort 1.2 and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz Supports HDMI 2.1 and HDCP 2.3 Supports native HDMI 2.1 TMDS-compatible ports
Sound cardRealtek audio codec High Definition Audio support Audio channels: 2/4/5.1/7.1 S/PDIF Out support
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x USB 3.0 Type-C
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Side Speaker
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors5 x USB 2.0
External connectors1 x USB 3.0
External connectors2 x SMA
External connectors1 x USB 3.1
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x S/PDIF Out header
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
