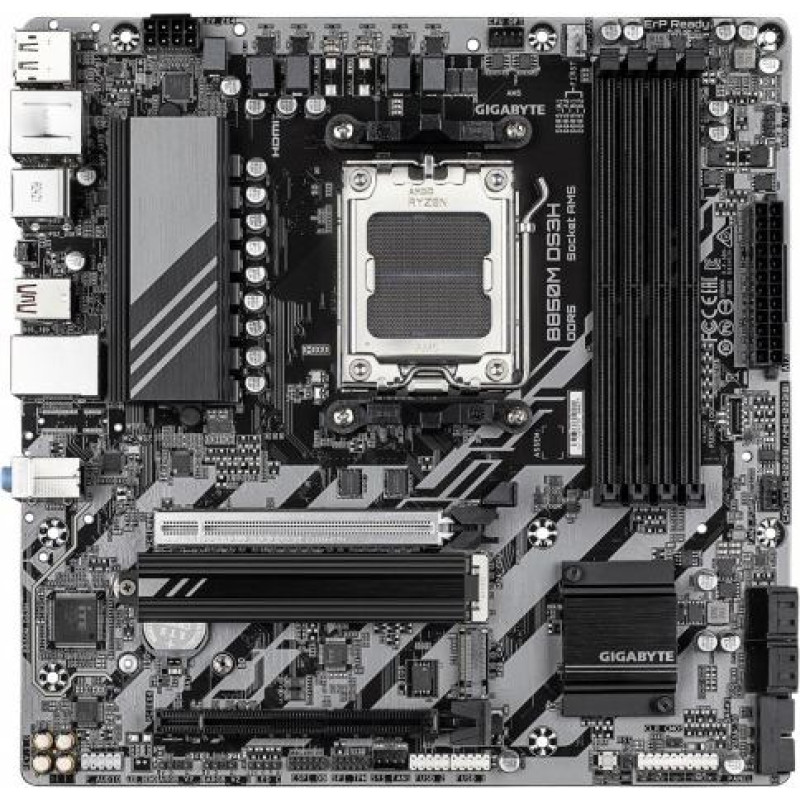

Gigabyte Motherboard B850M DS3H

GIGABYTE

Gigabyte Motherboard B850M DS3H

Delivery to the store in 5 to 7 business days.
ID: 166902
Model B850M DS3H
Barcode 4719331866518
132.71€
(Ex Tax: 107.02€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8B850U01
svītrkods: 4719331866518
Description
SKUKBGBAAA8B850U01
Barcode4719331866518
ModelB850M DS3H
CPU socketSocket AM5
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 5
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency4400 MHz
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency8200 MHz
Memory bus frequency8000 MHz
Memory bus frequency7800 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6666 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7600 MHz
Memory bus frequency5600 MHz
Memory bus frequency6000 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots2 x M.2
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 4.0 x 8
Expansion slots1 x PCIe 3.0 x 4
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesExpansion connectors  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode  *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.  Chipset:  - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) SATA connectors  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:  AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs  4 x SATA 6Gb/s connectors  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices  * RAID 5 is only available on AMD Ryzen 9000 Series Processors.  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Sound cardRealtek Audio CODEC  High Definition Audio  2/4/5.1/7.1-channel
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

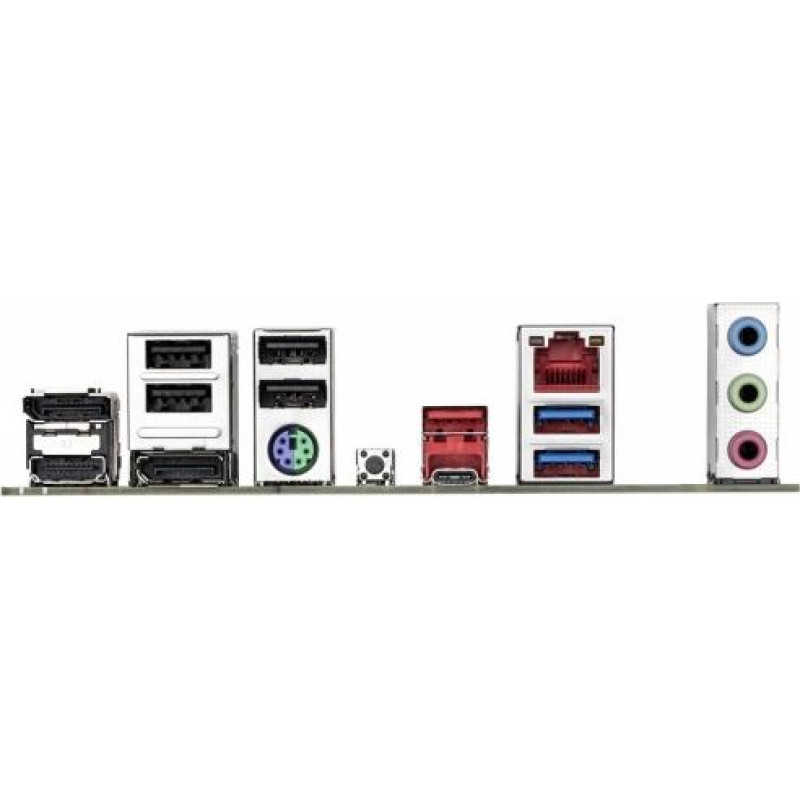

External connectors2 x DisplayPort
External connectors1 x HDMI
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x Q-Flash Plus button
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors4 x USB 2.0
External connectors1 x Line Out
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors1 x Line In
Onboard connectors1 x Reset jumper
Onboard connectors1 x System panel header
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Reset button
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x TPM header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin Chassis fan
Onboard connectors3 x Addressable LED
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Supported operating systemsWindows 11
Supported operating systemsWindows 10
Software    Norton Internet Security (OEM version)     LAN bandwidth management software
DesignationCE+WEEE
