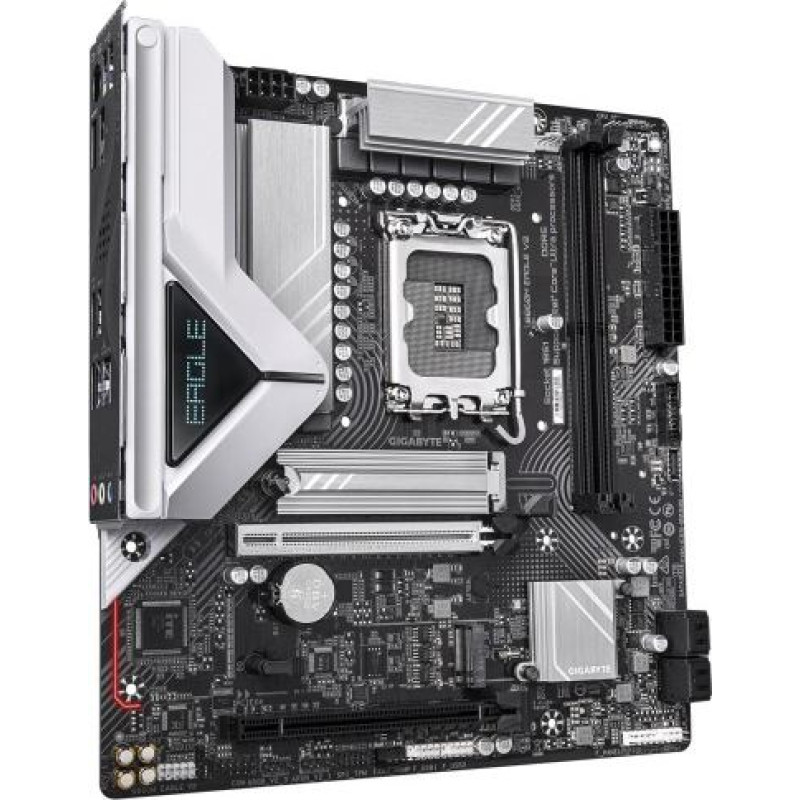

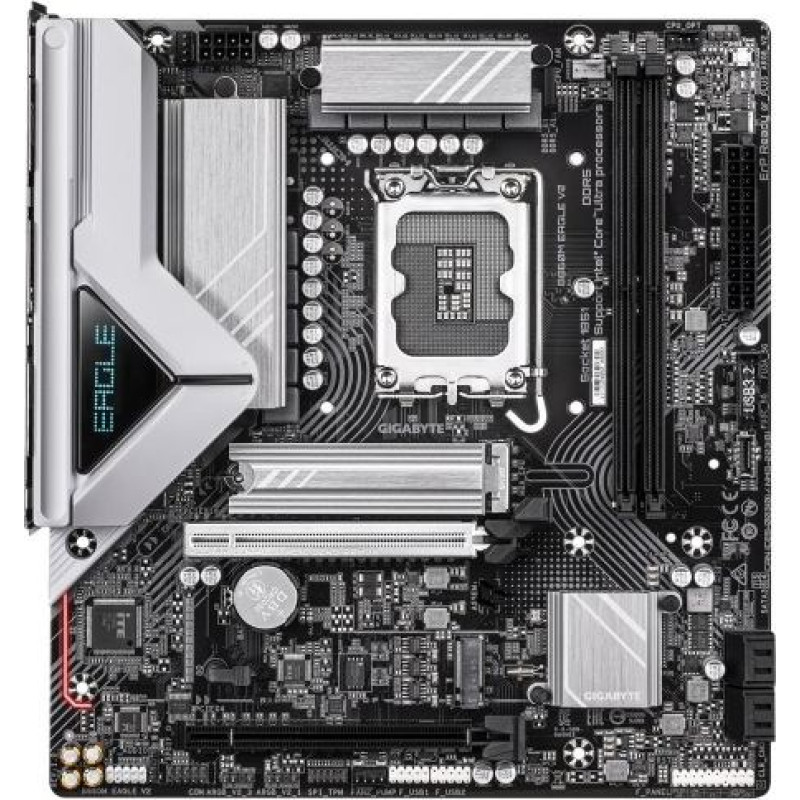

Gigabyte Motherboard B860M EAGLE v2 s1851 2DDR5 HDMI/DP mATX

GIGABYTE

Gigabyte Motherboard B860M EAGLE v2 s1851 2DDR5 HDMI/DP mATX

Delivery to the store in 5 to 7 business days.
ID: 164337
Model B860M EAGLE V2
Barcode 4719331869656
126.38€
(Ex Tax: 101.92€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFB860U07
svītrkods: 4719331869656
Description
SKUKBGBAIIFB860U07
Barcode4719331869656
ModelB860M EAGLE V2
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B860 Express Chipset
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency5600 MHz
Memory bus frequency133 MHz
Memory bus frequency7800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency8000 MHz
Memory bus frequency8200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency7200 MHz
Memory bus frequency7000 MHz
Memory bus frequency6800 MHz
Memory bus frequency6600 MHz
Memory bus frequency6400 MHz
Memory bus frequency8266 MHz
Memory bus frequency8400 MHz
Max memory size128
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU 1 PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 mode (PCIEX16) Chipset 1 PCI Express x16 slot, supporting PCIe 4.0 and operating at x4 mode (PCIEX4)
GraphicsIntegrated Graphics Support: Intel HD Graphics 1 × HDMI port, supporting a maximum resolution of 4096 × 2160 at 60 Hz Supports HDMI 2.1 and HDCP 2.3 1 × DisplayPort, supporting a maximum resolution of 3840 × 2160 at 144 Hz Supports DisplayPort 2.1
Sound cardRealtek audio codec Supports High Definition Audio Audio channels: 2/4/5.1/7.1 Supports S/PDIF Out
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel6
USB ports on motherboard3
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

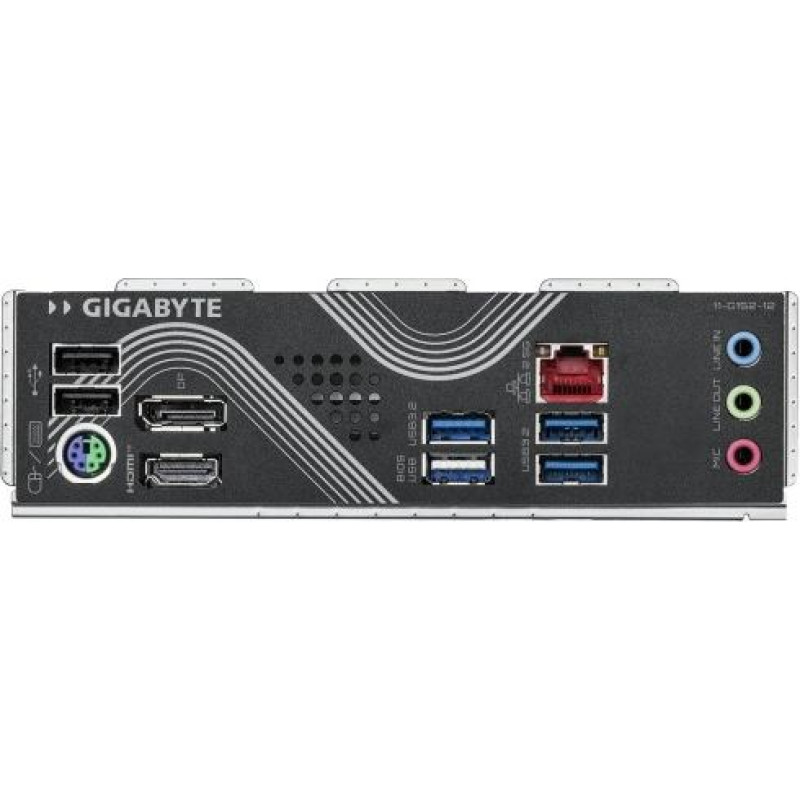

External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors3 x USB 2.0
External connectors3 x USB 3.0
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x TPM header
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 x 22.5 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (wersja OEM) LAN bandwidth management software
DesignationCE+WEEE
