Gigabyte Motherboard Z890 AORUS MASTER

GIGABYTE

Gigabyte Motherboard Z890 AORUS MASTER

Delivery to the store in 5 to 7 business days.
ID: 167362
Model Z890 AORUS MASTER
Barcode 4719331864903
541.37€
(Ex Tax: 436.59€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFZ890A01
svītrkods: 4719331864903
Description
SKUKBGBAIIFZ890A01
Barcode4719331864903
ModelZ890 AORUS MASTER
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel Z890 Express
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8400 MHz
Memory bus frequency8600 MHz
Memory bus frequency8266 MHz
Memory bus frequency6600 MHz
Memory bus frequency6000 MHz
Memory bus frequency5600 MHz
Memory bus frequency5800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency9066 MHz
Memory bus frequency8933 MHz
Memory bus frequency8800 MHz
Memory bus frequency6800 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency7950 MHz
Memory bus frequency8000 MHz
Memory bus frequency8200 MHz
Memory bus frequency9200 MHz
Memory bus frequency9333 MHz
Memory bus frequency9466 MHz
Memory bus frequency9500 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 3.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors
GraphicsIntegrated Graphics Processor-Intel HD Graphics support: 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; support for HDMI 1.4 version.
Sound cardRealtek ALC1220 CODEC ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10Gbit/s 10GBase-T
Network interfaceBluetooth
Network interfaceLAN: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless communication: Intel Wi-Fi 7 BE200NGW 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 320MHz wireless standard
USB ports at back panel14
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports7
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

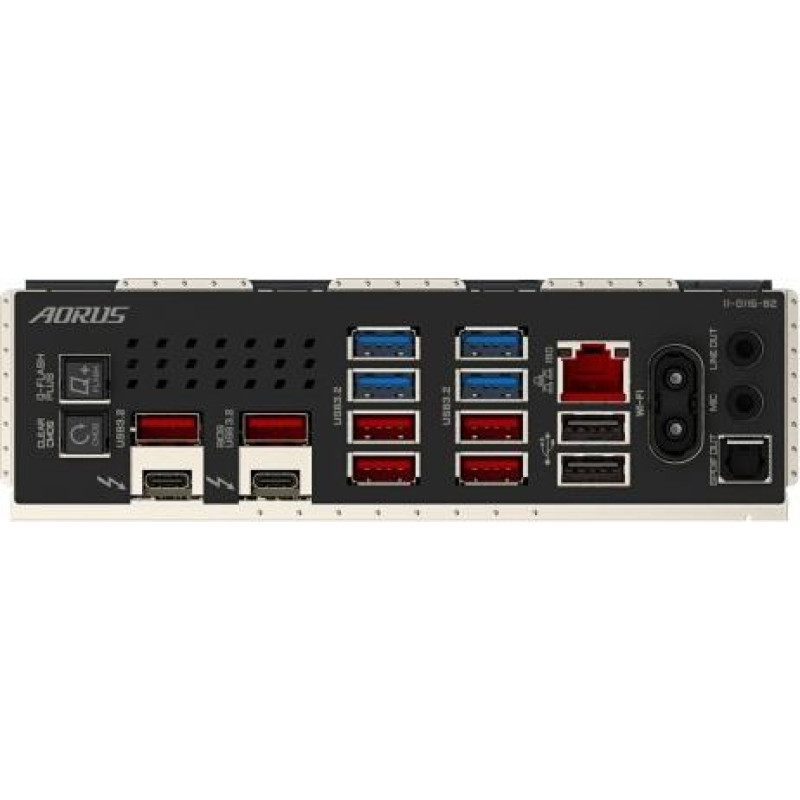

External connectors1 x S/PDIF
External connectors2 x USB 2.0
External connectors1 x MIC
External connectors1 x Przycisk Clear CMOS
External connectors4 x USB 3.0
External connectors6 x USB 3.1
External connectors2 x SMA
External connectors2 x Thunderbolt 4
External connectors1 x RJ-45
External connectors1 x Line Out
External connectors1 x Q-Flash Plus button
Onboard connectors1 x Reset button
Onboard connectors1 x Voltage measurement module
Onboard connectors1 x Reset jumper
Onboard connectors1 x TPM header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors4 x 4pin Chassis fan
Onboard connectors4 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors5 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors4 x USB 3.0
Onboard connectors1 x USB C
Onboard connectors1 x HDMI
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Power button
Onboard connectors2 x temperature sensor
Onboard connectors1 x Noise detection header
Onboard connectors1 x RGB LED strip header
Onboard connectors4 x Adresowalna dioda LED
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
