Home Computers and equipment Computer components Motherboard Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX

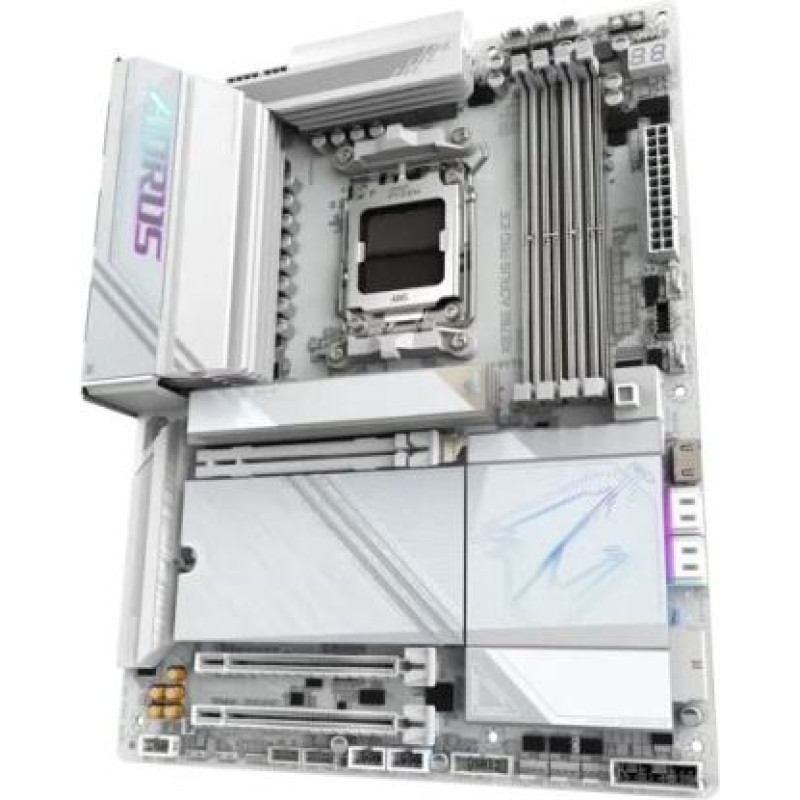

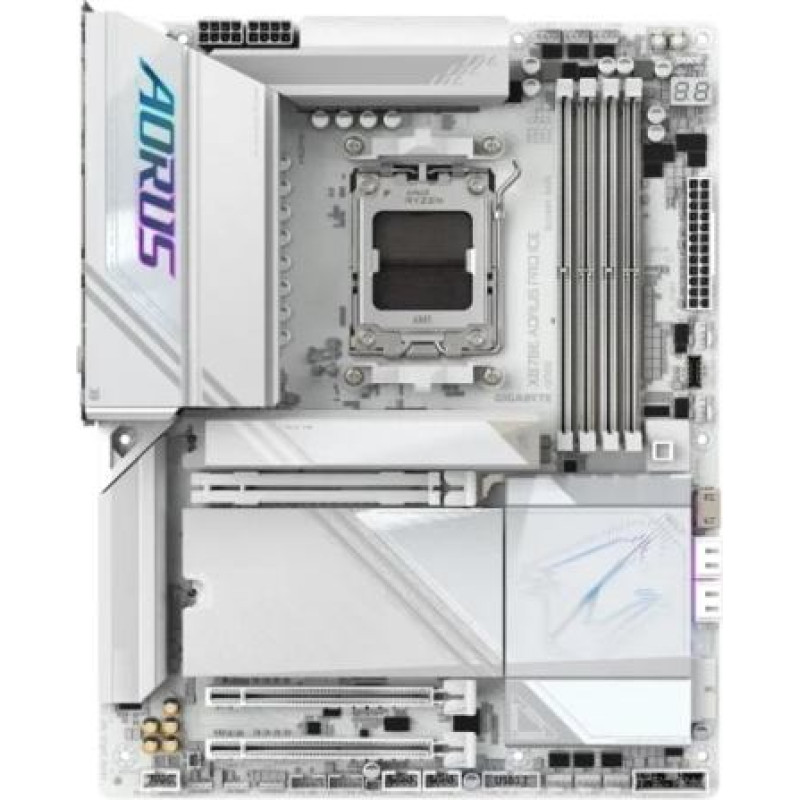

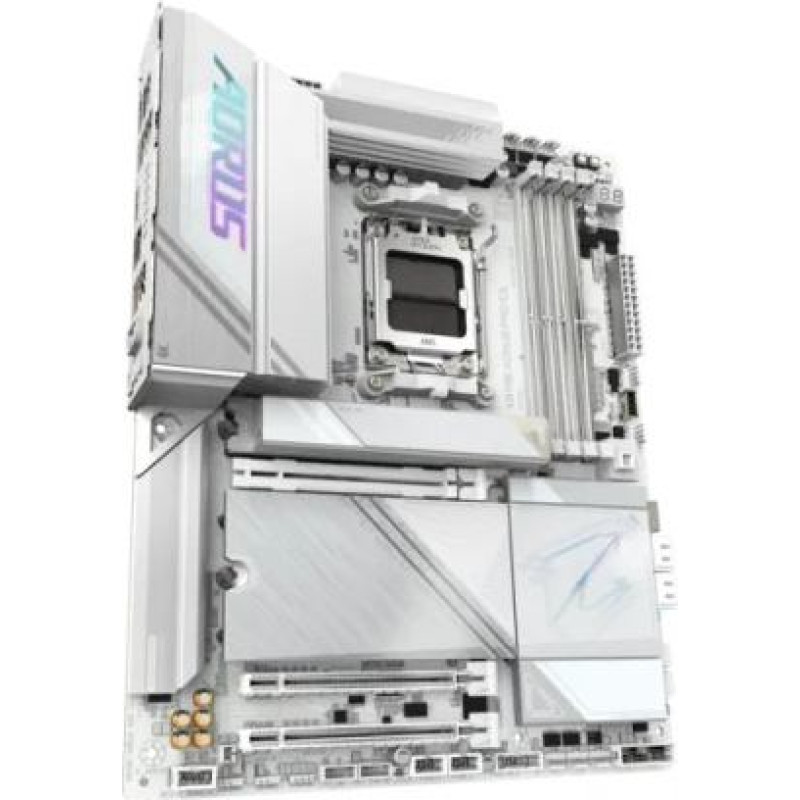

Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX

GIGABYTE

Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX

Delivery to the store in 5 to 7 business days.
ID: 170498
Model X870E A PRO X ICE
Barcode 4719331876487
367.43€
(Ex Tax: 296.32€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8X870A07
svītrkods: 4719331876487
Description
SKUKBGBAAA8X870A07
Barcode4719331876487
ModelX870E Aorus Pro
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Memory bus frequency4400 MHz
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Memory bus frequency8200 MHz
Memory bus frequency7800 MHz
Memory bus frequency7600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6666 MHz
Max memory size256
Expansion slots3 x PCIe 5.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 3.0 x 4
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces1 M.2 slot (M2A_CPU), integrated with the processor, supporting SSDs Socket 3, M key, type 25110/22110/2580/22802 M.2 slots (M2B_CPU, M2C_CPU), integrated with the processor, supporting SSDs Socket 3, M key, type 22110/2280 AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs. M2B_CPU and M2C_CPU slots will be unavailable when using AMD Ryzen 8000-Phoenix 1/Phoenix 2 series processors. AMD Ryzen 8000 Phoenix 1/Phoenix 2 processors. 1 M.2 slot (M2D_SB), integrated with the chipset, supporting PCIe 4.0 x4/x2 SSDs Socket 3, M key 4 SATA 6 Gb/s slots
Sound cardRealtek ALC1220 codec High Definition Audio support Audio channels: 2/4/5.1/7.1 Support for S/PDIF Out
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel11
USB ports on motherboard8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors3 x USB 3.2 Gen 2 Type-A
External connectors1 x Q-Flash Plus button
External connectors2 x SMA
External connectors2 x USB4 Type-C
External connectors1 x HDMI
External connectors1 x Line Out (front)
External connectors1 x MIC (front)
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors2 x USB 2.0
External connectors4 x USB 3.0
Onboard connectors1 x Noise detection header
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Onboard connectors1 x Reset jumper
Onboard connectors2 x temperature sensor
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x HDMI
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Reset button
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
BIOS1 × 256 Mbit flash Uses licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
