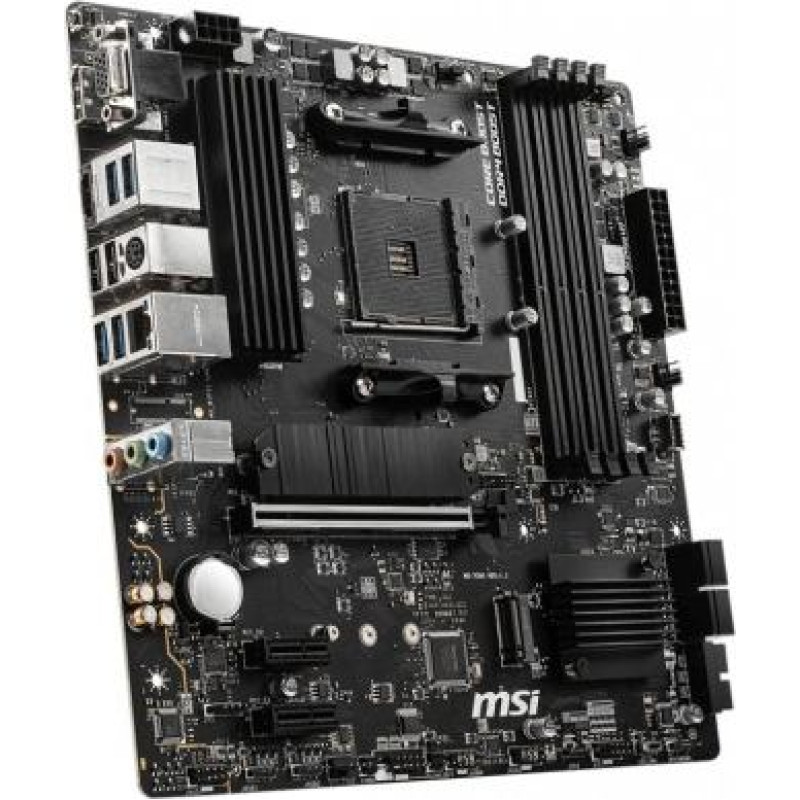

MSI B550M PRO-VDH AM4 4DDR4 HDMI/DP/VGA mATX

MSI

MSI B550M PRO-VDH AM4 4DDR4 HDMI/DP/VGA mATX

Delivery to the store takes 3 - 7 business days.
ID: 178813
Model B550M PRO-VDH
Barcode 4719072758417
89.69€
(Ex Tax: 72.33€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIAA7B550U06
svītrkods: 4719072758417
Description
SKUKBMSIAA7B550U06
Barcode4719072758417
ModelB550M PRO-VDH
CPU socketSocket AM4
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency3733 MHz
Memory bus frequency3866 MHz
Memory bus frequency3600 MHz
Memory bus frequency4266 MHz
Memory bus frequency4133 MHz
Memory bus frequency2667 MHz
Memory bus frequency2800 MHz
Memory bus frequency2933 MHz
Memory bus frequency3000 MHz
Memory bus frequency3466 MHz
Memory bus frequency3200 MHz
Memory bus frequency3066 MHz
Memory bus frequency4000 MHz
Memory bus frequency1866 MHz
Memory bus frequency2133 MHz
Memory bus frequency2400 MHz
Memory bus frequency4400 MHz
Max memory size128
Expansion slots1 x PCIe 3.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Expansion slots2 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDYes
Network interface1 x 10/100/1000 Mbit/s
USB ports at back panel6
USB ports on motherboard8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Flash BIOS Button
External connectors4 x USB 3.2 Gen 1 Type-A
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x D-Sub
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x 4pin CPU fan
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors2 x System panel header
Onboard connectors2 x RGB LED Strip
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Serial port header
Onboard connectors3 x Addressable LED
Form factormicro ATX
DesignationCE+WEEE
