MSI B760 GAMING PLUS WIFI DDR4 motherboard Intel B760 LGA 1700 ATX

MSI

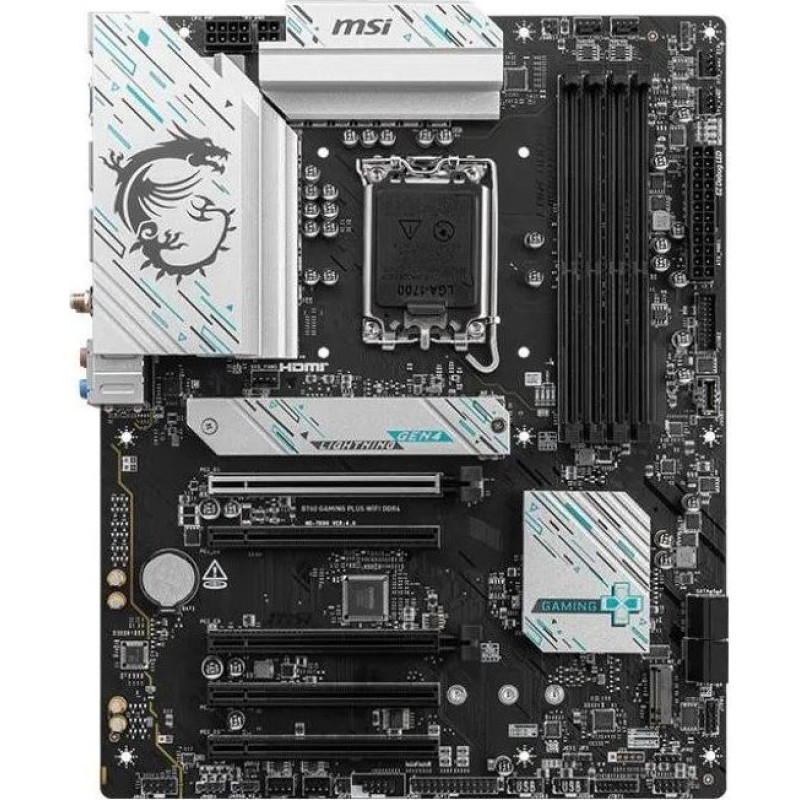

MSI B760 GAMING PLUS WIFI DDR4 motherboard Intel B760 LGA 1700 ATX

Delivery to the store in 5 to 7 business days.
ID: 177468
Model 7D98-043R
Barcode 4711377247900
136.80€
(Ex Tax: 110.32€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Maximum internal memory supported by processor128 GB
Compatible processor seriesIntel® Pentium® Gold
Processor manufacturerIntel
Supported processor socketsLGA 1700
Windows operating systems supportedWindows 11 x64
Motherboard chipsetIntel B760
Motherboard chipset familyIntel
Audio output channels7.1 channels
Motherboard form factorATX
Audio chipRealtek ALC897
Memory slots typeDIMM
Number of memory slots4
Memory channelsDual-channel
Supported memory typesDDR4-SDRAM
Supported memory clock speeds3733
Maximum internal memory128 GB
ECC сompatibilityNon-ECC
Width243.8 mm
Depth304.8 mm
Bluetooth version5.3
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ethernet LANYes
Wi-Fi standards802.11g
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
BluetoothYes
LAN controllerDragon RTL8125BG
RGB LED pin headerYes
Total number of SATA connectors4
TPM connectorYes
S/PDIF out connectorYes
USB 2.0 connectors4
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
BIOS typeUEFI AMI
Number of HDDs supported4
RAID levels10
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA
RAID supportYes
HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
DisplayPorts quantity1
S/PDIF out portYes
DisplayPort version1.4
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots2
PCI Express x1 (Gen 3.x) slots3
PCI Express x1 slots3
PCI Express x16 slots2
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
