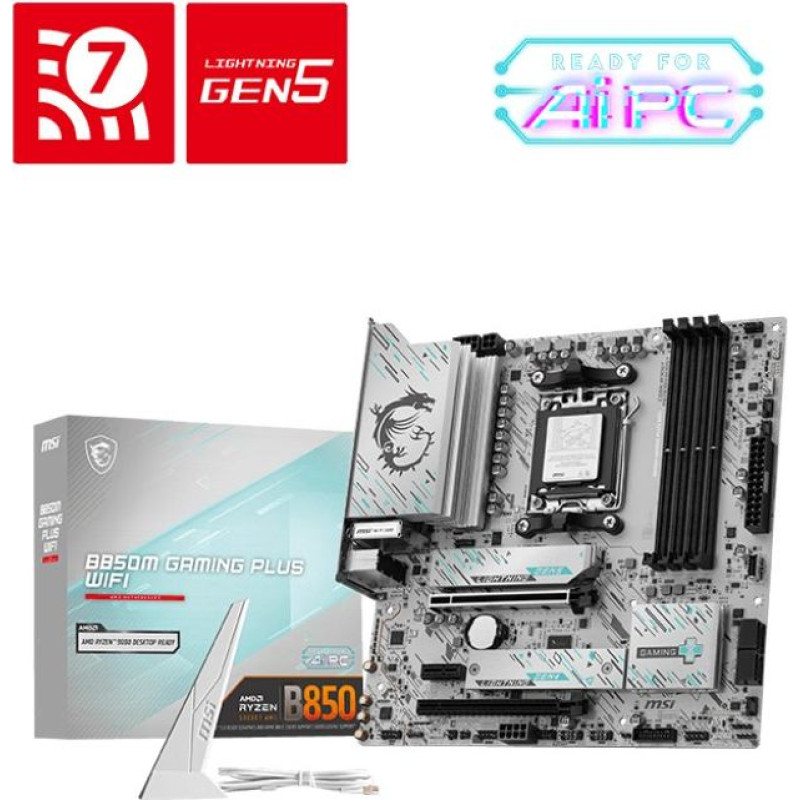

MSI B850M GAMING PLUS WIFI AMD B850 Socket AM5 micro ATX

MSI

MSI B850M GAMING PLUS WIFI AMD B850 Socket AM5 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 163215
Model B850M GAMING PLUS WIFI
Barcode 4711377347570
166.41€
(Ex Tax: 134.20€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 8000 Series
Processor manufacturerAMD
Processor socketSocket AM5
On-board graphics cardNo
Motherboard chipsetAMD B850
Motherboard form factormicro ATX
Audio chipRealtek ALC897
Product colourBlack
Motherboard chipset familyAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Supported memory clock speeds6400
Supported memory clock speed (max)8200 MHz
Number of memory slots4
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Width243.8 mm
Depth243.8 mm
LAN controllerRealtek RTL8126
BluetoothYes
Wi-Fi standards802.11b
Ethernet LANYes
Wi-FiYes
Bluetooth version5.4
Ethernet interface type5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 7 (802.11be)
Number of CPU fan connectors2
Number of RGB LED pin headers3
Number of water pump connectors1
Front panel connectorYes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Front panel audio connectorYes
USB 2.0 connectors4
RGB LED pin headerYes
Total number of SATA connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
BIOS typeUEFI AMI
Supported storage drive typesHDD & SSD
RAID supportYes
RAID levels1
Supported storage drive interfacesM.2
Number of HDDs supported4
Number of storage drives supported7
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
2nd M.2 largest key size2280
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
Number of M.2 (M) slots3
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 slots1
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x4 slots1
