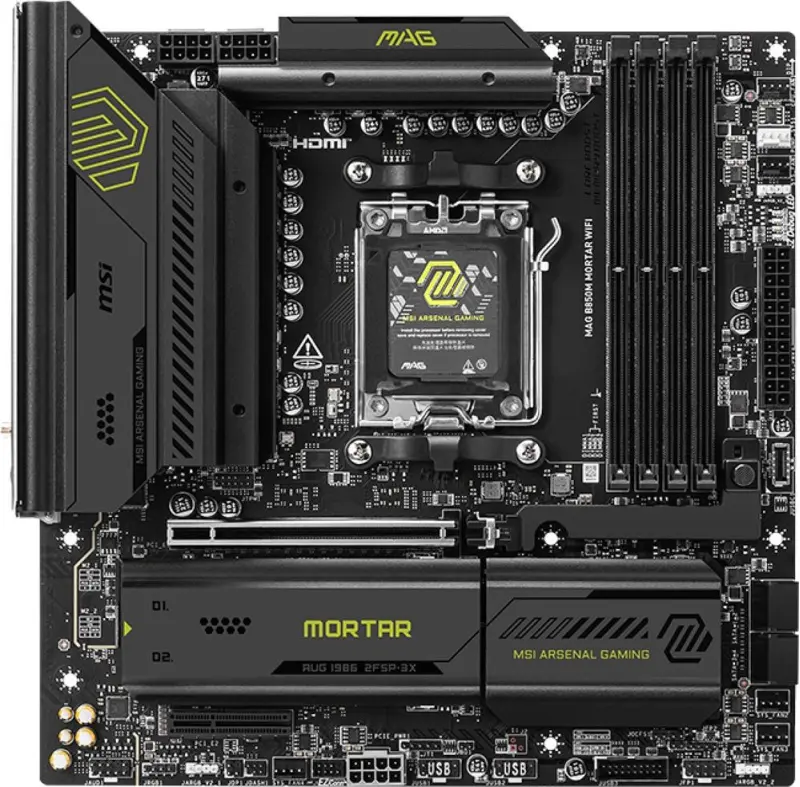

MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX

Delivery to the store in 7-9 business days.
ID: 163219
Product Code: MAG B850M MORTAR WIFI
Barcode 4711377321150
215.23€
(Ex Tax: 173.58€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 7000 Series
Supported processor socketsSocket AM5
Processor manufacturerAMD
Processor socketSocket AM5
On-board graphics cardNo
Audio output channels7.1 channels
Motherboard chipsetAMD B850
Windows operating systems supportedWindows 11 x64
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Product colourBlack
Audio chipRealtek ALC4080
Supported memory clock speeds4800 MHz
Maximum internal memory256 GB
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speed (max)8200 MHz
Width243.8 mm
Depth243.8 mm
BluetoothYes
Wi-FiYes
Wi-Fi standards802.11g
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
Bluetooth version5.4
Number of SATA III connectors4
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Total number of SATA connectors4
ATX Power connector (24-pin)Yes
Front panel connectorYes
CPU fan connectorYes
USB 2.0 connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
RGB LED pin headerYes
Number of CPU fan connectors2
Number of water pump connectors1
Number of RGB LED pin headers3
BIOS typeUEFI AMI
RAID levels1
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2
RAID supportYes
Number of storage drives supported7
Number of HDDs supported4
Ethernet LAN (RJ-45) ports1
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Number of M.2 (M) slots3
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 slots1
PCI Express x4 slots1
PCI Express x16 (Gen 4.x) slots1
2nd M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 5.x) slots1
3rd M.2 largest key size2280
1st M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
