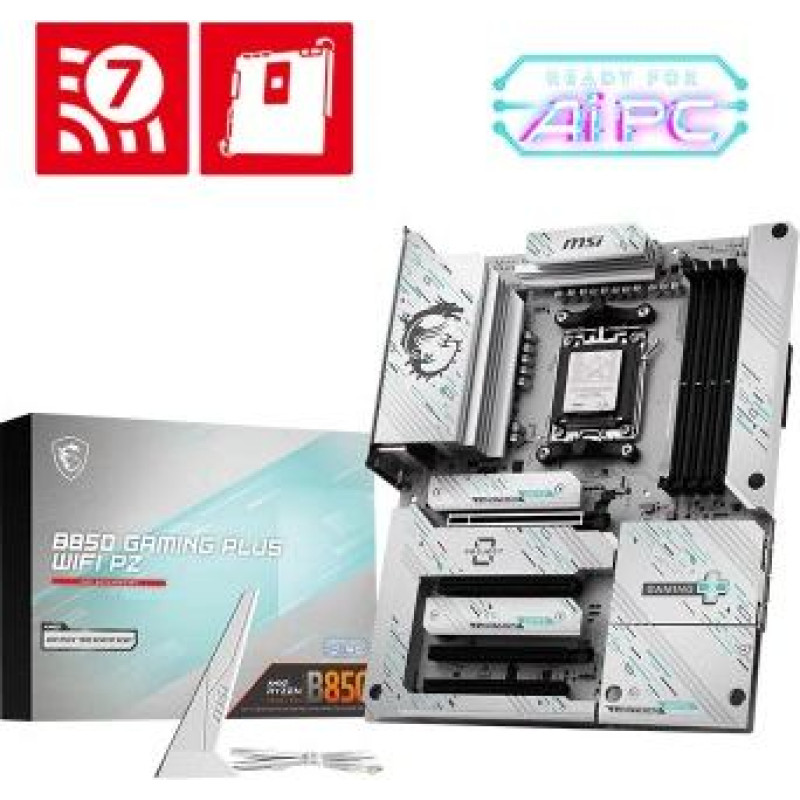

MSI Motherboard B850 GAMING PLUS WIFI PZ AM5 4DDR5 ATX

MSI

MSI Motherboard B850 GAMING PLUS WIFI PZ AM5 4DDR5 ATX

Out Of Stock
ID: 179327
Model B850 GAMING PLUS WIFI PZ
Barcode 4711377365284
225.09€
(Ex Tax: 181.52€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIAA8B850A07
svītrkods: 4711377365284
Description
SKUKBMSIAA8B850A07
Barcode4711377365284
ModelB850 GAMING PLUS WIFI PZ
CPU socketSocket AM5
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 7
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8200 MHz
Memory bus frequency4800 MHz
Memory bus frequency6000 MHz
Memory bus frequency5600 MHz
Memory bus frequency6400 MHz
Max memory size256
Expansion slots2 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 4
Expansion slots3 x M.2
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/8300 Series processors) RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Graphics1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Sound cardRealtek ALC897 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceBluetooth
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceRealtek 8126VB 5G LAN Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
USB ports at back panel8
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x DisplayPort
External connectors1 x RJ-45
External connectors1 x Line In
External connectors1 x Line Out
External connectors2 x SMA
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 2 Type-C
External connectors1 x S/PDIF
External connectors1 x Flash BIOS Button
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 1 Type-A
External connectors1 x Przycisk Clear CMOS
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Front panel audio header
Onboard connectors1 x TPM header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors4 x USB 2.0/1.1
Onboard connectors1 x Serial port header
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Onboard connectors2 x System panel header
Onboard connectors4 x EZ Debug LED
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 8-pin PCIe
Onboard connectors4 x 4pin Chassis fan
Onboard connectors4 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x EZ Conn-header
Onboard connectors1 x Tuning Controller connector
Form factorATX
Dimensions243.84 mm x 304.8 mm
Accessories includedQuick Installation Guide  European Union Regulatory Notice  EZ Wi-Fi Antenna SATA Cable  3 x EZ M.2 Clip II  Cable sticker EZ M.2 Clip II Remover  1 to 2 EZ Conn-Cable (V1)
Supported operating systemsWindows 11
DesignationCE+WEEE
