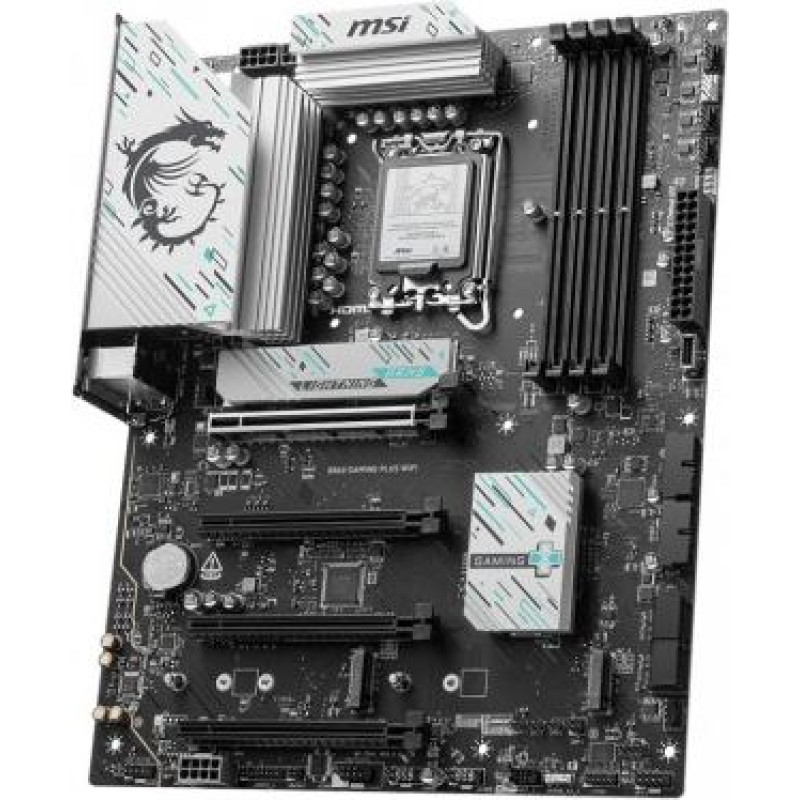

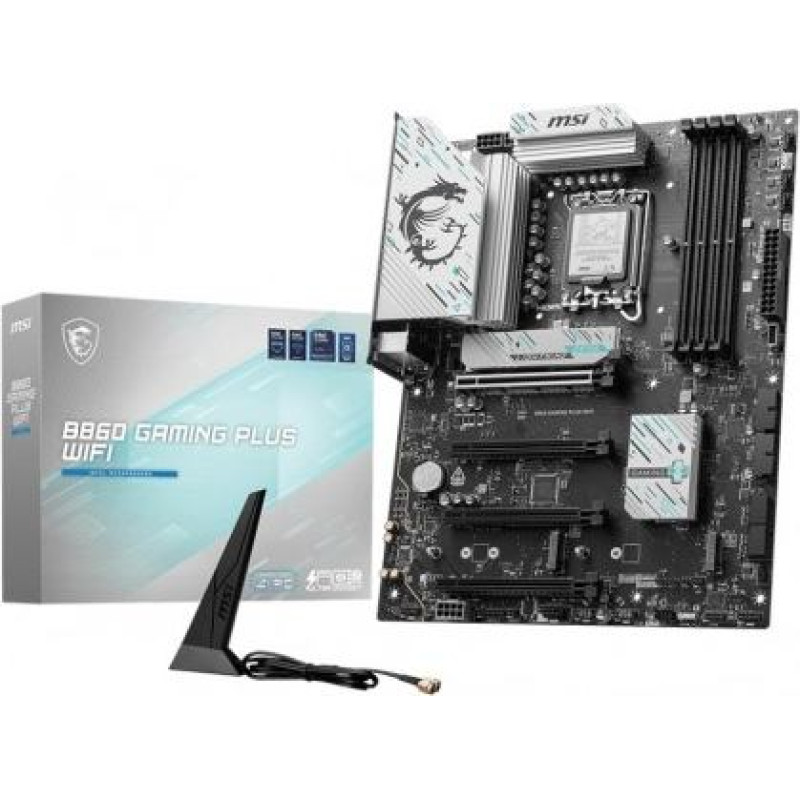

MSI Motherboard B860 GAMING PLUS WIFI s1851 4DDR5 ATX

MSI

MSI Motherboard B860 GAMING PLUS WIFI s1851 4DDR5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 170505
Model B860 GAMING PLUS WIFI
Barcode 4711377289764
178.22€
(Ex Tax: 143.72€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIFB860A02
svītrkods: 4711377289764
Description
SKUKBMSIIIFB860A02
Barcode4711377289764
ModelB860 GAMING PLUS WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeINTEL B860
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8800 MHz
Max memory size256
Expansion slots4 x PCIe x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4 x SATA 6G
Graphics1 x HDMI - Support HDMI 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort - Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1 x Type-C DisplayPort - Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceLAN: Intel Killer E5000 5Gbps LAN   WIRELESS LAN & BLUETOOTH: Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
USB ports at back panel8
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

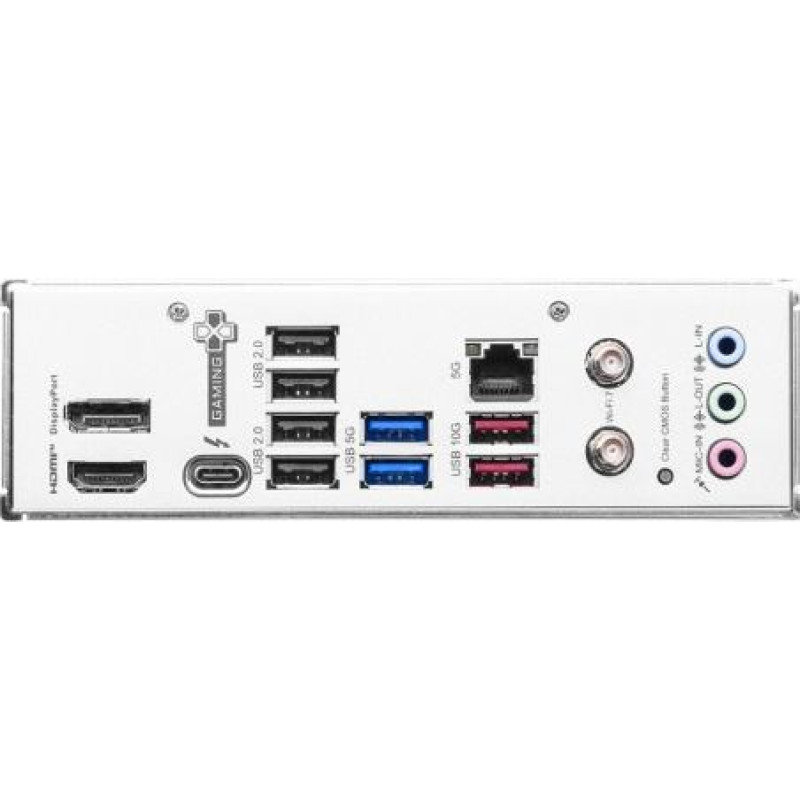

External connectors1 x RJ-45
External connectors1 x Wi-Fi Module
External connectors1 x Przycisk Clear CMOS
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x MIC
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x Thunderbolt 4
Onboard connectors4 x EZ Debug LED
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors1 x 4pin CPU fan
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 4pin 12V power
Onboard connectors1 x 8-pin PCIe
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors4 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x Tuning Controller connector
Onboard connectors1 x RGB LED strip header
Onboard connectors2 x Addressable LED
Form factorATX
Dimensions243.84 x 304.8 mm
Supported operating systemsWindows 11
DesignationCE+WEEE
