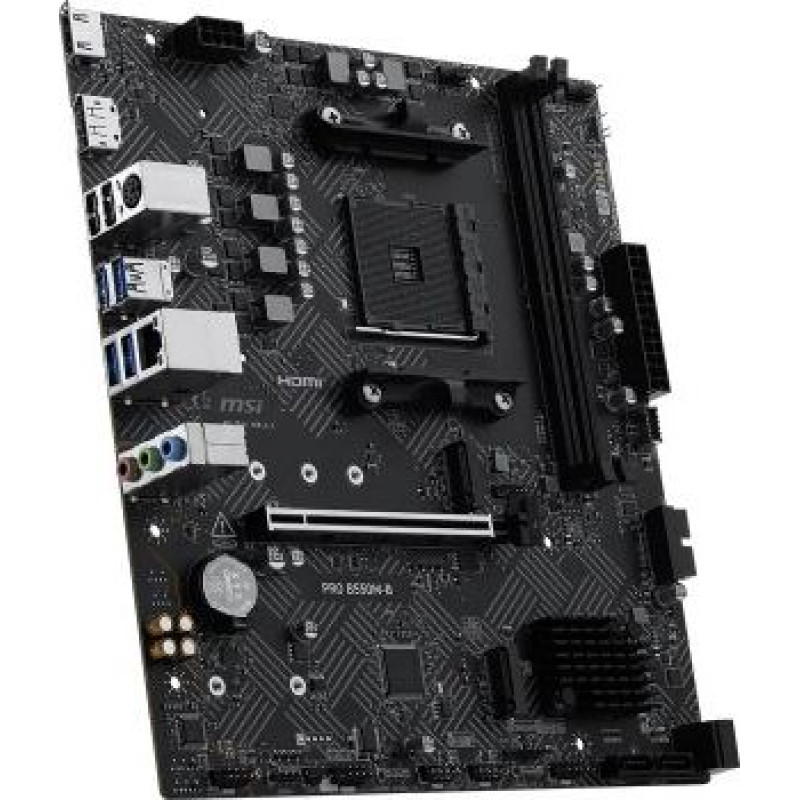

MSI Motherboard PRO B550M-B am4 2DDR4 mATX

MSI

MSI Motherboard PRO B550M-B am4 2DDR4 mATX

Delivery to the store in 7-9 business days.
ID: 228282
Model PRO B550M-B
Barcode 4711377428927
81.35€
(Ex Tax: 65.60€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIAA7B550U10
svītrkods: 4711377428927
Description
SKUKBMSIAA7B550U10
Barcode4711377428927
Data ActLink
ModelPRO B550M-B
CPU socketSocket AM4
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 5
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550
Memory typeDDR4
Number of DDR4 slots2
Memory bus frequency4400 MHz
Memory bus frequency4600 MHz
Memory bus frequency2667 MHz
Memory bus frequency3866 MHz
Memory bus frequency2800 MHz
Memory bus frequency4133 MHz
Memory bus frequency3000 MHz
Memory bus frequency3200 MHz
Memory bus frequency2933 MHz
Memory bus frequency4000 MHz
Memory bus frequency3600 MHz
Memory bus frequency3466 MHz
Memory bus frequency3733 MHz
Memory bus frequency4266 MHz
Memory bus frequency3066 MHz
Max memory size64
Expansion slots1 x PCIe x 16
Expansion slots2 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesStorage 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices 4x SATA 6G (Qty) RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Graphics1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.2, maximum resolution of 4K 60Hz
Sound card  Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek RTL8111H 1Gbps LAN
USB ports at back panel6
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

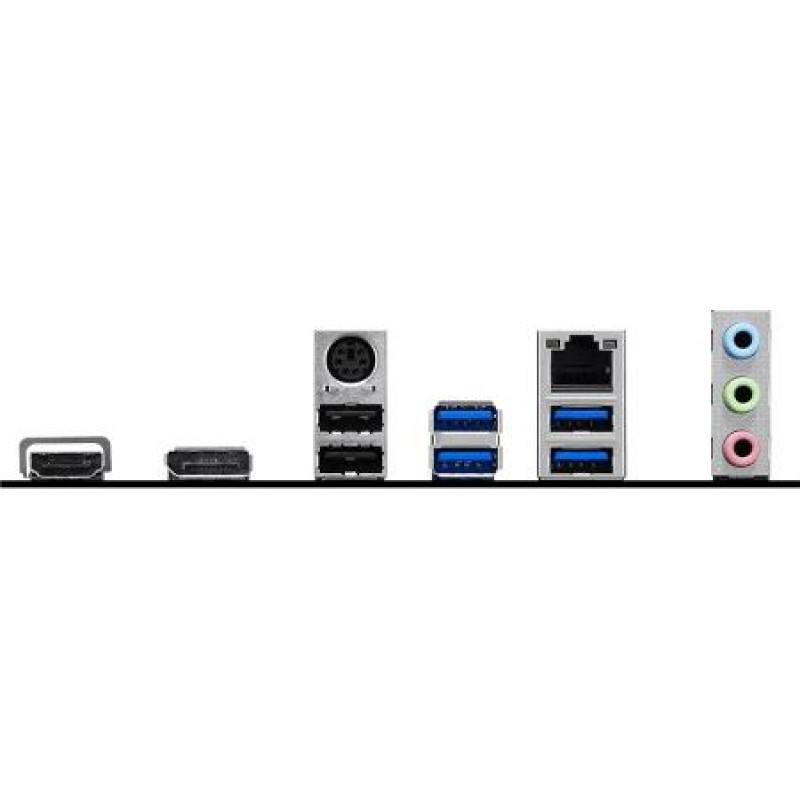

External connectors2 x USB 2.0
External connectors1 x RJ-45
External connectors1 x MIC
External connectors1 x HDMI
External connectors1 x Line Out
External connectors1 x Line In
External connectors1 x DisplayPort
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors4 x USB 3.2 Gen 1 Type-A
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors4 x EZ Debug LED
Onboard connectors1 x 4pin Chassis fan
Onboard connectors4 x USB 2.0/1.1
Onboard connectors3 x Addressable LED
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x TPM header
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x Serial port header
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors2 x System panel header
Form factormicro ATX
Dimensions220mm x 243.84mm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
