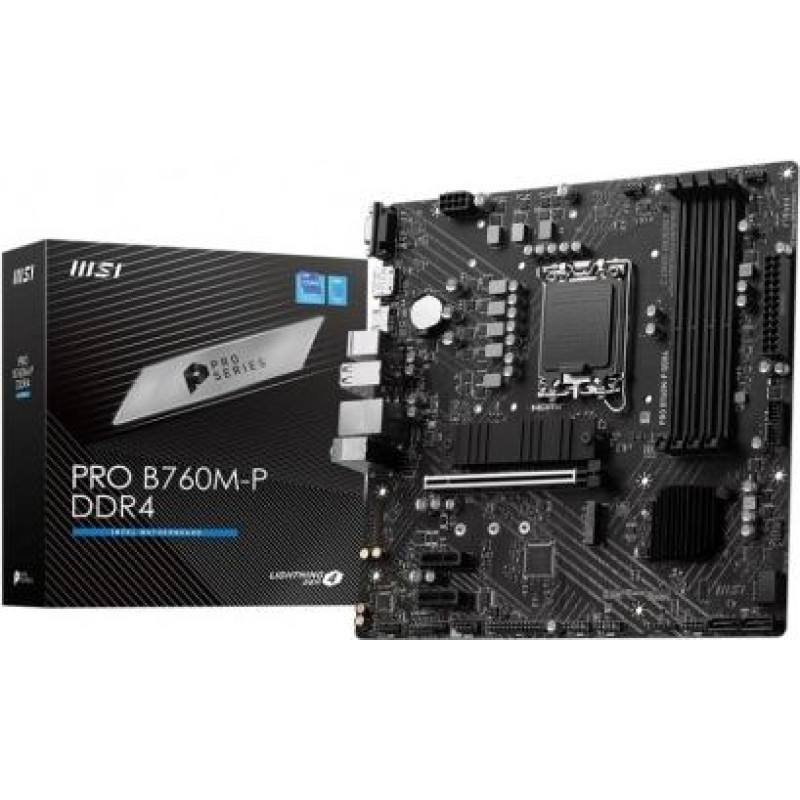

MSI Motherboard PRO B760M-P DDR4 s1700 4DDR4 DP/HDMI 2M.2 mATX

MSI

MSI Motherboard PRO B760M-P DDR4 s1700 4DDR4 DP/HDMI 2M.2 mATX

Out Of Stock
ID: 171352
Model PRO B760M-P DDR4
Barcode 4711377030991
90.19€
(Ex Tax: 72.74€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIEB760U02
svītrkods: 4711377030991
Description
SKUKBMSIIIEB760U02
Barcode4711377030991
ModelPRO B760M-P DDR4
CPU socketLGA1700
Processor familyIntel Core i3
Processor familyIntel Celeron
Processor familyIntel Pentium Gold
Processor familyIntel Core i5
Processor familyIntel Core i7
Processor familyIntel Core i9
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency2400 MHz
Memory bus frequency3600 MHz
Memory bus frequency3733 MHz
Memory bus frequency3800 MHz
Memory bus frequency4000 MHz
Memory bus frequency4200 MHz
Memory bus frequency4266 MHz
Memory bus frequency4400 MHz
Memory bus frequency4600 MHz
Memory bus frequency2666 MHz
Memory bus frequency2933 MHz
Memory bus frequency3200 MHz
Memory bus frequency3333 MHz
Memory bus frequency3400 MHz
Memory bus frequency3466 MHz
Memory bus frequency4800 MHz
Memory bus frequency2133 MHz
Max memory size128
Expansion slots2 x PCIe 4.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces2 x M.2 M.2_1 (from CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_2 (from chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G * SATA5 will be unavailable when M.2 SATA SSD is installed in M2_2 slot.
GraphicsHDMI DisplayPort VGA Support HDMI 1.4, max resolution 4K 30Hz Support DP 1.4, max resolution 4K 60Hz VGA support, max resolution 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek RTL8111H Gigabit LAN
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portYes

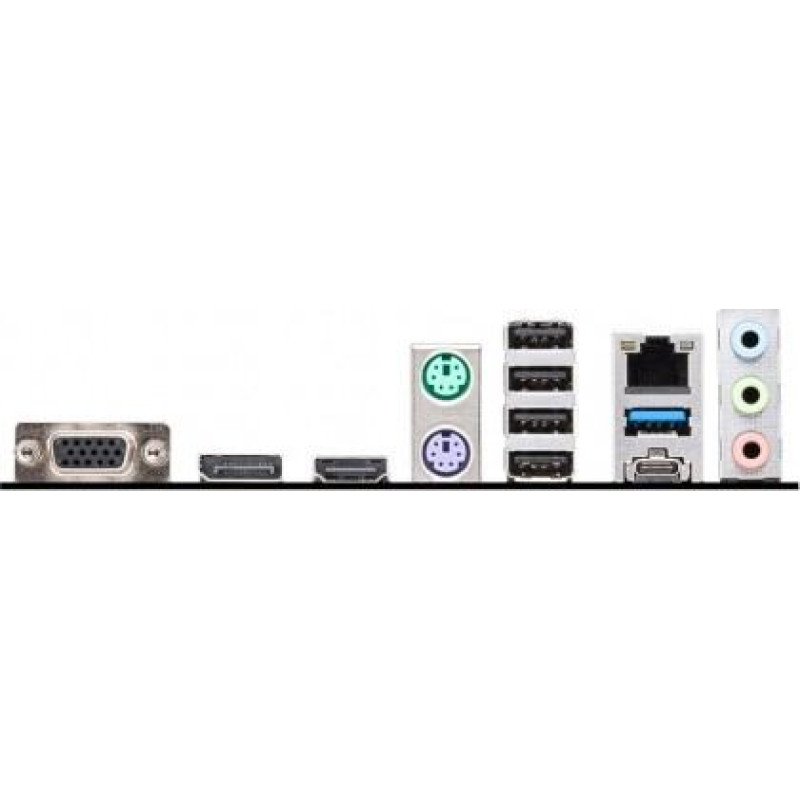

External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors1 x MIC
External connectors1 x PS/2 Keyboard
External connectors1 x D-Sub
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x USB 3.1 Type-C
External connectors1 x USB 3.0
External connectors1 x PS/2 Mouse
Onboard connectors1 x Chassis intrusion header
Onboard connectors2 x M.2
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 4pin Chassis fan
Onboard connectors4 x EZ Debug LED
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x Serial port header
Onboard connectors1 x Printer Port (JLPT)
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x RGB LED strip header
Form factormicro ATX
Dimensions243.84 x 243.84 mm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
DesignationCE+WEEE
