MSI Motherboard PRO B840M-P WIFI6E AM5 4DDR5 ATX

MSI

MSI Motherboard PRO B840M-P WIFI6E AM5 4DDR5 ATX

Delivery to the store in 5 to 7 business days.
ID: 178290
Model PRO B840M-P WIFI6E
Barcode 4711377361804
126.81€
(Ex Tax: 102.27€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIAA8B840U02
svītrkods: 4711377361804
Description
SKUKBMSIAA8B840U02
Barcode4711377361804
ModelPRO B840M-P WIFI6E
CPU socketSocket AM5
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Integrated CPUNo
Chipset manufacturerAMD
Chipset type AMD B840
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency4800 MHz
Memory bus frequency5600 MHz
Memory bus frequency6400 MHz
Memory bus frequency8000 MHz
Max memory size256
Expansion slots2 x M.2
Expansion slots1 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe x 1
Expansion slots1 x PCIe x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
Graphics1x HDMI Supports HDMI 2.1, maximum resolution 4K 60 Hz
Sound cardRealtek ALC897 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceRealtek 8125D 2.5G LAN Wi-Fi 6E Wireless module pre-installed in M.2 slot (Key-E) Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (160 MHz) up to 2.4 Gb/s Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3**, FIPS, FISMA
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

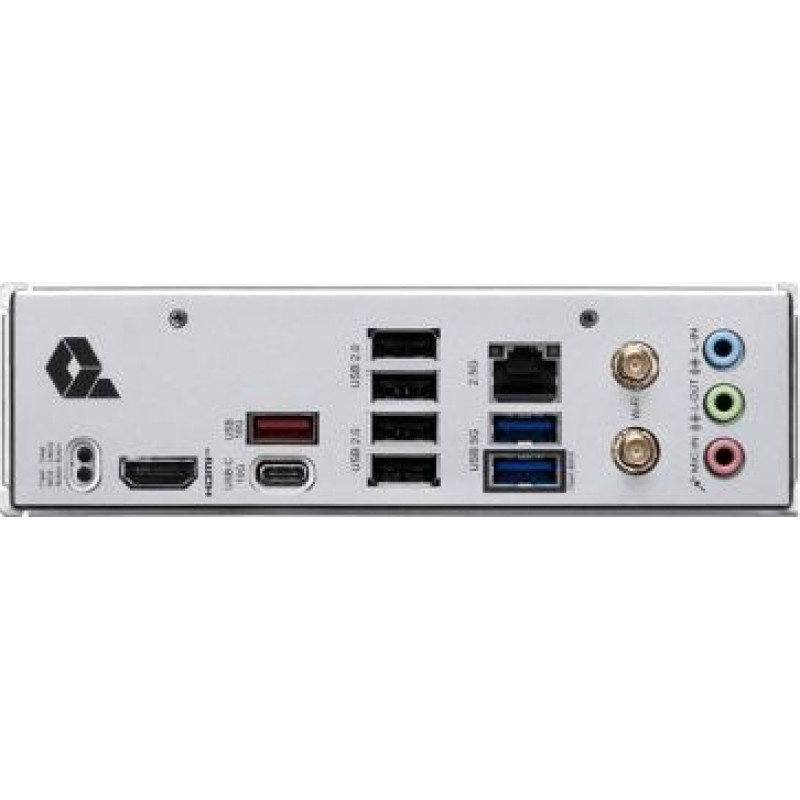

External connectors1 x RJ-45
External connectors1 x Przycisk Clear CMOS
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors2 x SMA
External connectors1 x MIC
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x Flash BIOS Button
Onboard connectors2 x System panel header
Onboard connectors3 x Addressable LED
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Tuning Controller connector
Onboard connectors1 x TPM header
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Form factormicro ATX
Dimensions243.84 x 243.84 mm
Supported operating systemsWindows 11
DesignationCE+WEEE
