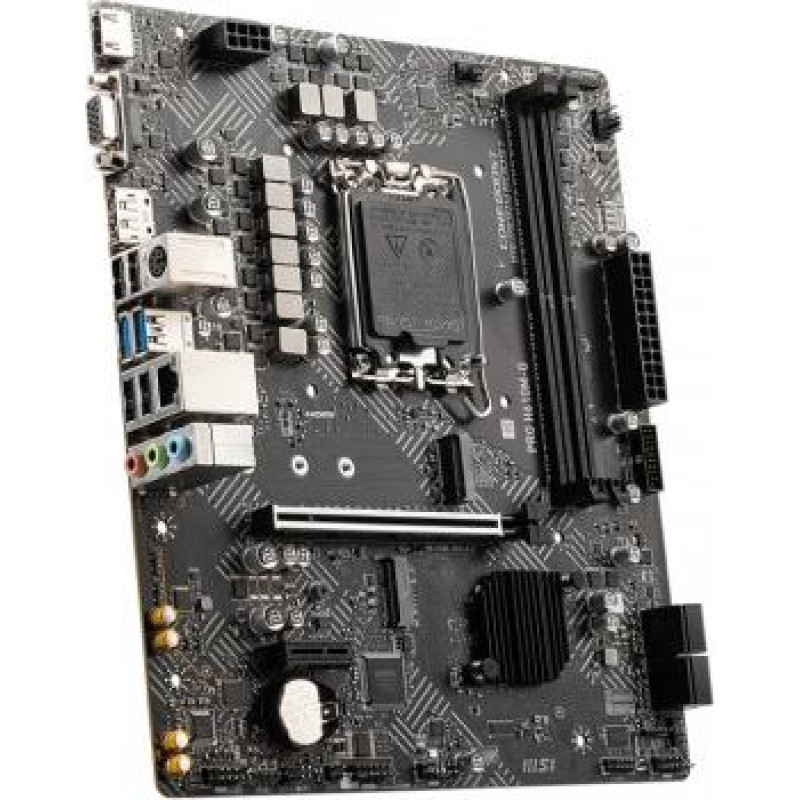

MSI Motherboard PRO H610M-G

MSI

MSI Motherboard PRO H610M-G

Delivery to the store in 5 to 7 business days.
ID: 166736
Model PRO H610M-G
Barcode 4719072942663
90.07€
(Ex Tax: 72.64€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIEH610U04
svītrkods: 4719072942663
Description
SKUKBMSIIIEH610U04
Barcode4719072942663
ModelPRO H610M-G
CPU socketLGA1700
Processor familyIntel Core i7
Processor familyIntel Core i9
Processor familyIntel Core i3
Processor familyIntel Core i5
Processor familyIntel Celeron
Processor familyIntel Pentium Gold
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel H610
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency5600 MHz
Max memory size96
Expansion slots1 x PCIe x 16
Expansion slots1 x M.2
Expansion slots1 x PCIe x 1
Max. number of SATA devices4
RAIDNo
Detailed data on disk/drive interfaces1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Graphics1 x HDMI - Support HDMI 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort - Support DP 1.4, maximum resolution of 4K 60Hz* 1 x D-Sub - Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000 Mbit/s
Network interfaceIntel I219V 1Gbps LAN controller
USB ports at back panel6
USB ports on motherboard4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x RJ-45
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x D-Sub
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors2 x Addressable LED
Onboard connectors1 x RGB LED strip header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x Serial port header
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors4 x EZ Debug LED
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x M.2
BIOS1 x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4
Form factormicro ATX
Dimensions211 x 243.84 mm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
