MSI Motherboard X870E GAMING PLUS WIFI AM5 4DDR5 ATX

MSI

MSI Motherboard X870E GAMING PLUS WIFI AM5 4DDR5 ATX

Out Of Stock
ID: 170502
Model X870E GAMING PLUS WIFI
Barcode 4711377347594
235.29€
(Ex Tax: 189.75€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIAA8X870A08
svītrkods: 4711377347594
Description
SKUKBMSIAA8X870A08
Barcode4711377347594
ModelX870E GAMING PLUS WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8200 MHz
Max memory size256
Expansion slots2 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices 4 x SATA 6G
Graphics1 x HDMI - Support HDMITM 2.1, maximum resolution of 4K 60Hz 1 x Type-C DisplayPort - USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Sound cardRealtek ALC897 7.1-Channel High Definition Audio
Network interfaceBluetooth
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceLAN: Realtek 8126VB 5G LAN Wireless: Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
USB ports at back panel10
USB ports on motherboard11
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

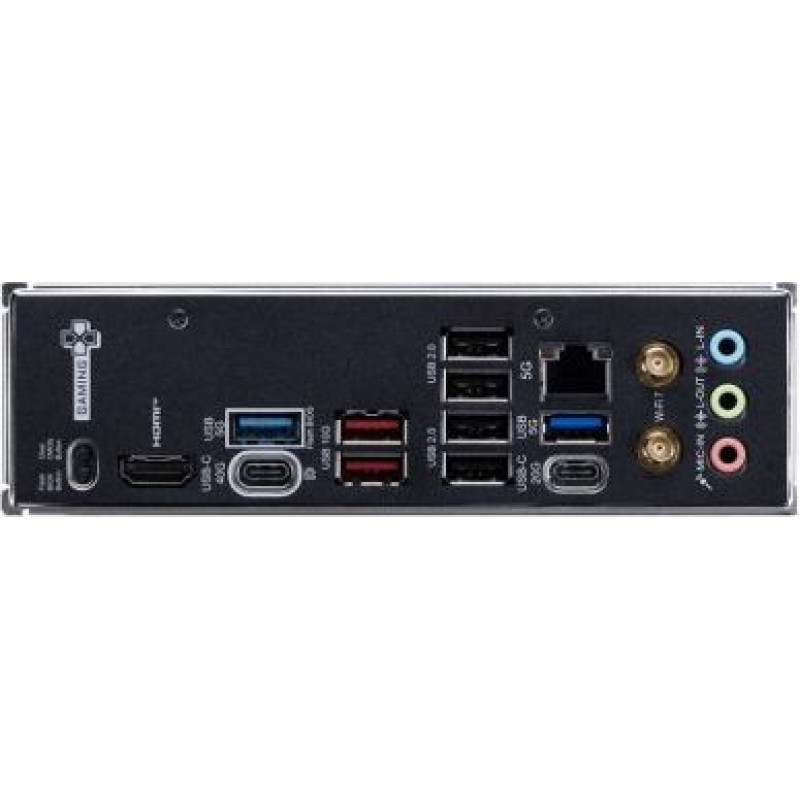

External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x Flash BIOS Button
External connectors1 x Przycisk Clear CMOS
External connectors2 x SMA
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 2x2 Type-C
External connectors1 x USB4 Type-C
External connectors1 x MIC
External connectors1 x Line Out
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x RJ-45
Onboard connectors1 x EZ Conn-header
Onboard connectors1 x EZ Memory Detection LED
Onboard connectors1 x Tuning Controller connector
Onboard connectors1 x 8-pin PCIe
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors6 x USB 2.0/1.1
Onboard connectors4 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors4 x EZ Debug LED
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors6 x 4pin wentylator obudowy
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Form factorATX
Dimensions243.84 x 304.8 mm
Supported operating systemsWindows 11
DesignationCE+WEEE
