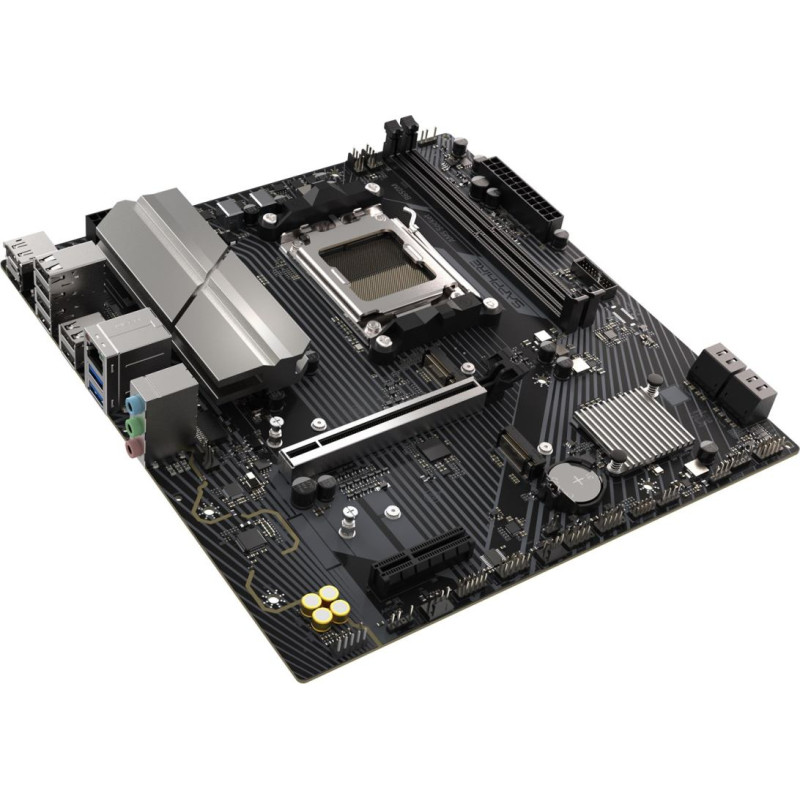

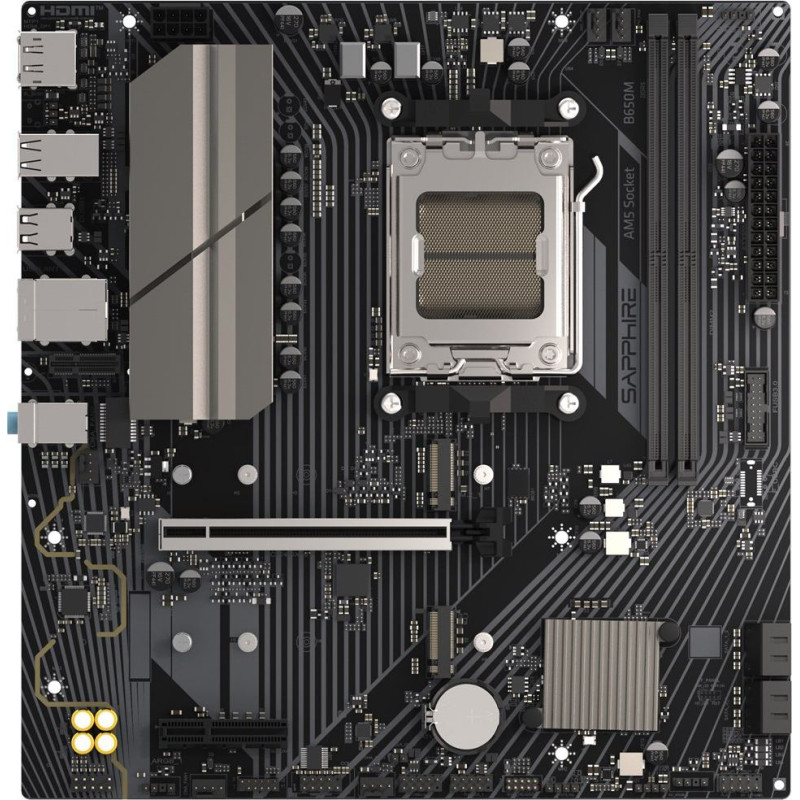

Sapphire B650M-E AMD B650 Socket AM5 micro ATX

Sapphire B650M-E AMD B650 Socket AM5 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 172202
Model 52112-04-40G
Barcode 4895106296848
Brand: SAPPHIRE
95.62€
(Ex Tax: 77.12€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 8000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Parallel processing technology supportNot supported
Audio chipRealtek ALC897
Motherboard chipset familyAMD
Product colourBlack
Motherboard chipsetAMD B650
Windows operating systems supportedWindows 10 x64
Audio output channels5.1 channels
Motherboard form factormicro ATX
Number of memory slots2
Maximum internal memory96 GB
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Supported memory clock speed (max)7600 MHz
Maximum internal memory per slot48 GB
Width244 mm
Depth235 mm
LAN controllerDragon RTL8125BG
Ethernet LANYes
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
Front panel connectorYes
Number of SATA III connectors4
RGB LED pin headerYes
Audio connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
Serial port headers1
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors1
Number of CPU fan connectors1
Number of water pump connectors1
Number of RGB LED pin headers3
Clear CMOS jumperYes
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive typesHDD & SSD
Number of storage drives supported6
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DisplayPorts quantity1
Microphone inYes
USB 2.0 ports quantity6
USB connector typeUSB Type-A
Headphone outputs3
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
PCI Express x4 (Gen 4.x) slots1
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
