Home Computers and equipment Computer components Motherboard Sapphire PULSE B850M WIFI AMD B850 Socket AM5 micro ATX

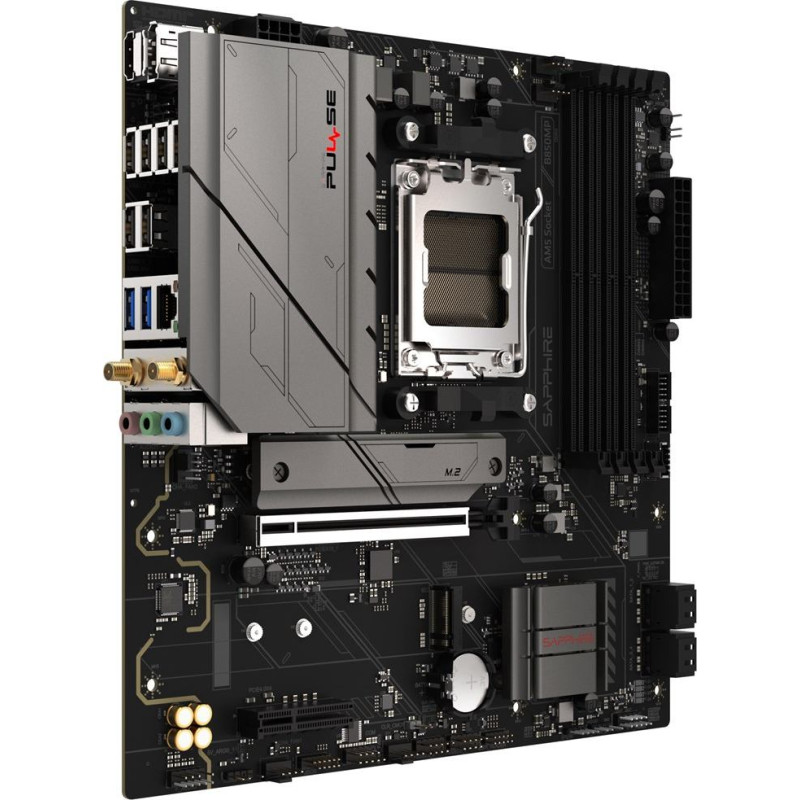

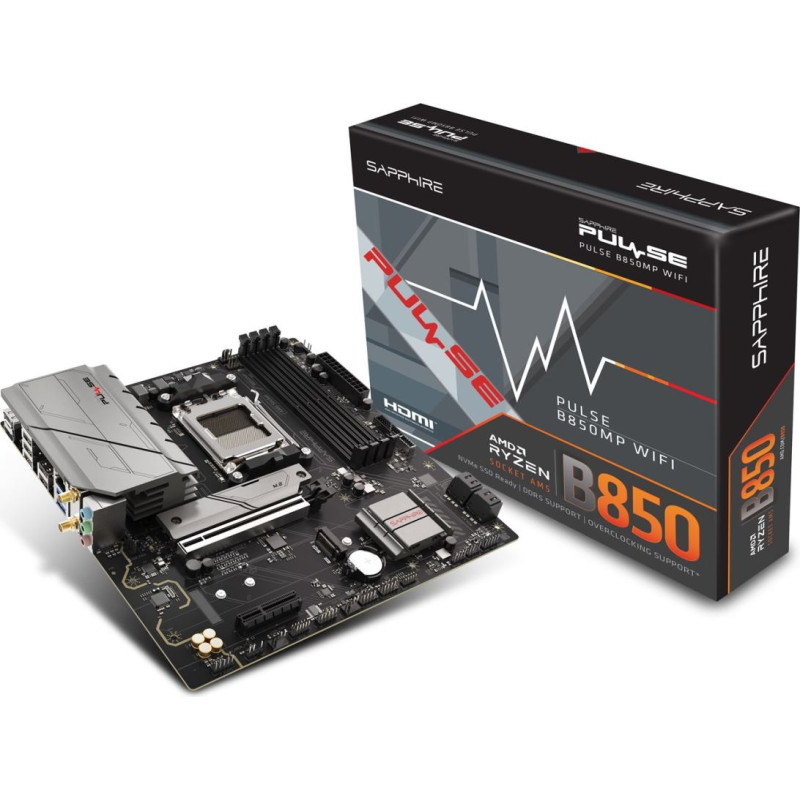

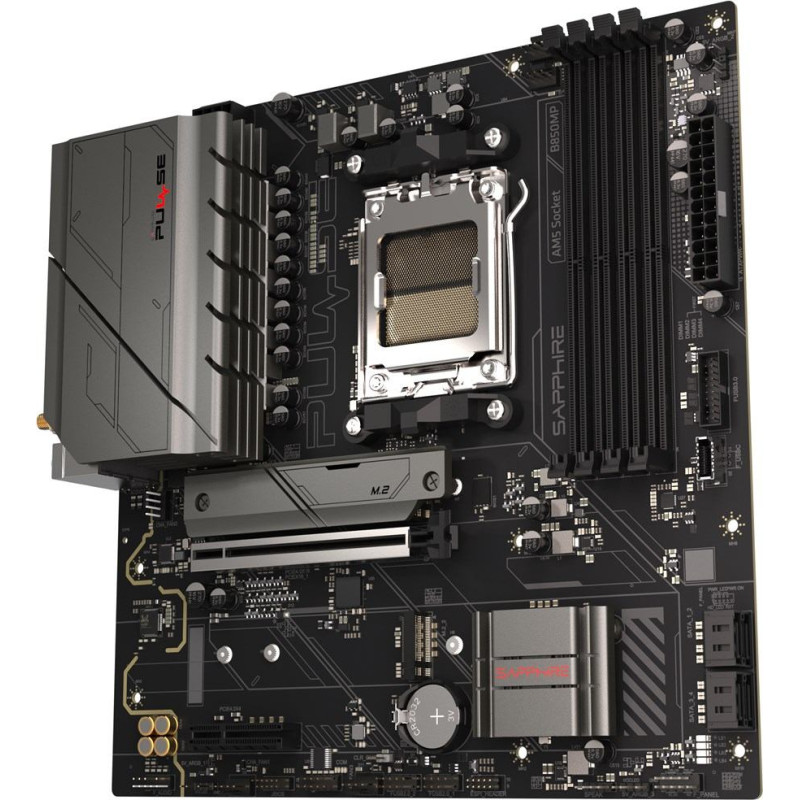

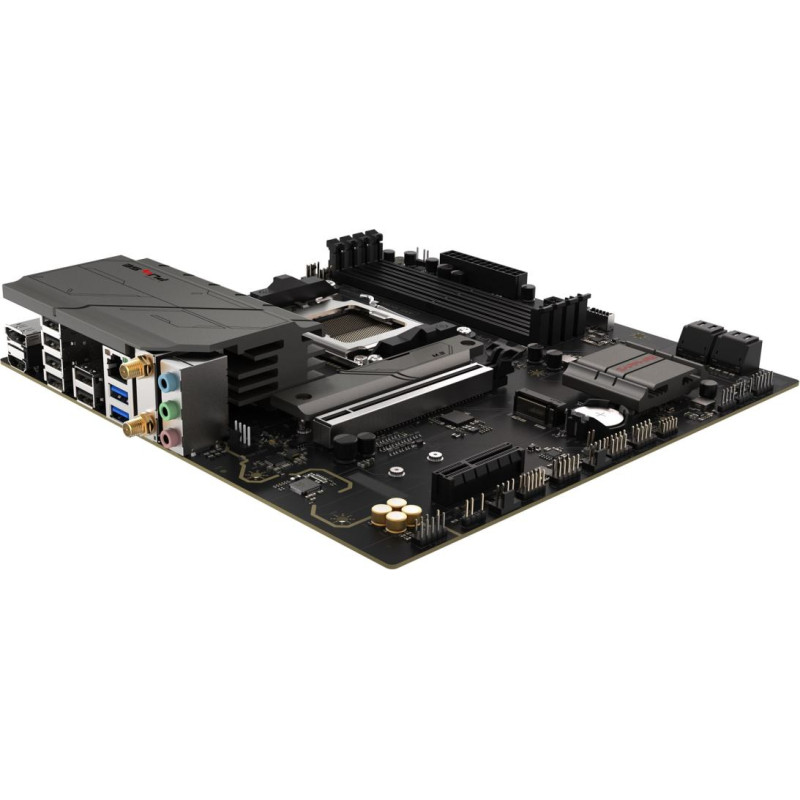

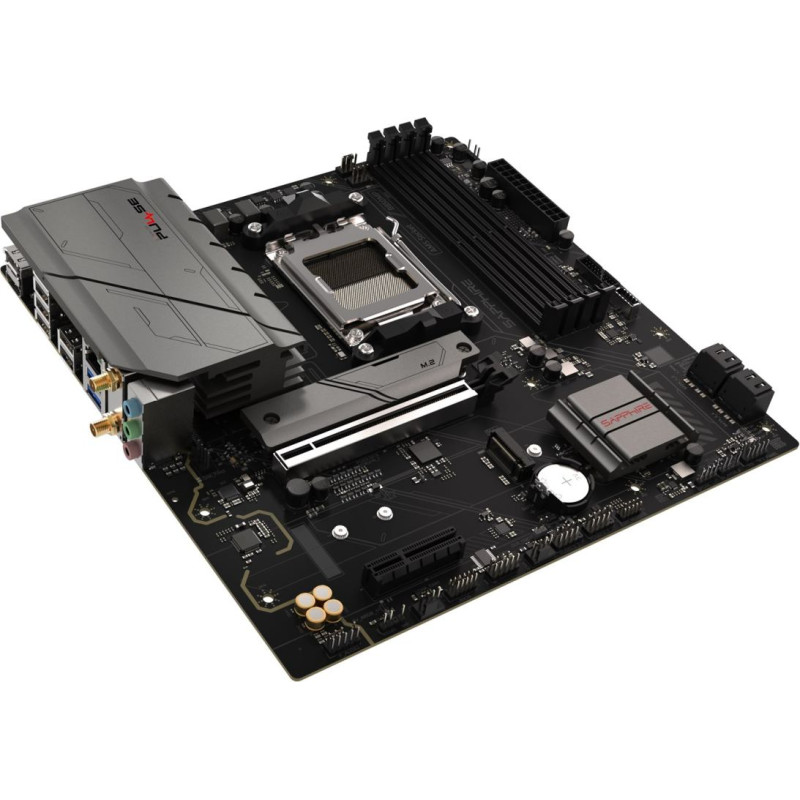

Sapphire PULSE B850M WIFI AMD B850 Socket AM5 micro ATX

Sapphire PULSE B850M WIFI AMD B850 Socket AM5 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 172203
Model 52123-04-40G
Barcode 4895106296947
Brand: SAPPHIRE
124.70€
(Ex Tax: 100.56€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 8000 Series
Processor socketSocket AM5
Parallel processing technology supportNot supported
Motherboard chipset familyAMD
Product colourBlack
Motherboard chipsetAMD B850
Motherboard form factormicro ATX
Audio chipRealtek ALC897
Windows operating systems supportedWindows 11 x64
Audio output channels5.1 channels
Maximum internal memory per slot48 GB
Maximum internal memory192 GB
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory channelsDual-channel
Supported memory clock speed (max)7600 MHz
Width244 mm
Depth235 mm
Wi-Fi standardsWi-Fi 4 (802.11n)
LAN controllerDragon RTL8125BG
BluetoothYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Bluetooth version5.3
Ethernet LANYes
Number of RGB LED pin headers3
Number of CPU fan connectors1
Number of water pump connectors1
Number of chassis fan connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
12V power connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
CPU fan connectorYes
Number of SATA III connectors4
Front panel connectorYes
Front panel audio connectorYes
Serial port headers1
USB 2.0 connectors2
Clear CMOS jumperYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported6
Headphone outputs3
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 2.0 ports quantity6
Microphone inYes
USB connector typeUSB Type-A
HDMI ports quantity1
Line-inYes
WiFi-AP antenna jack2
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
PCI Express x4 (Gen 4.x) slots1
